INVT GD20-0R7G-4 User Manual

Goodrive20 inverters Appendix B
124
Model W1 H1 H3 H4 D1 D2
Installatio
n hole (d)
GD20-0R4G-S2 80.0 160.0 35.4 36.6 123.5 120.3 5
GD20-0R7G-S2 80.0 160.0 35.4 36.6 123.5 120.3 5
GD20-1R5G-S2 80.0 185.0 35.4 36.6 140.5 137.3 5
GD20-2R2G-S2 80.0 185.0 35.4 36.6 140.5 137.3 5
GD20-0R4G-2 80.0 185.0 35.4 36.6 140.5 137.3 5
GD20-0R7G-2 80.0 185.0 35.4 36.6 140.5 137.3 5
GD20-0R7G-4 80.0 185.0 35.4 36.6 140.5 137.3 5
GD20-1R5G-4 80.0 185.0 35.4 36.6 140.5 137.3 5
GD20-2R2G-4 80.0 185.0 35.4 36.6 140.5 137.3 5
H1
H2
W1
W2
D2
Ø
D1

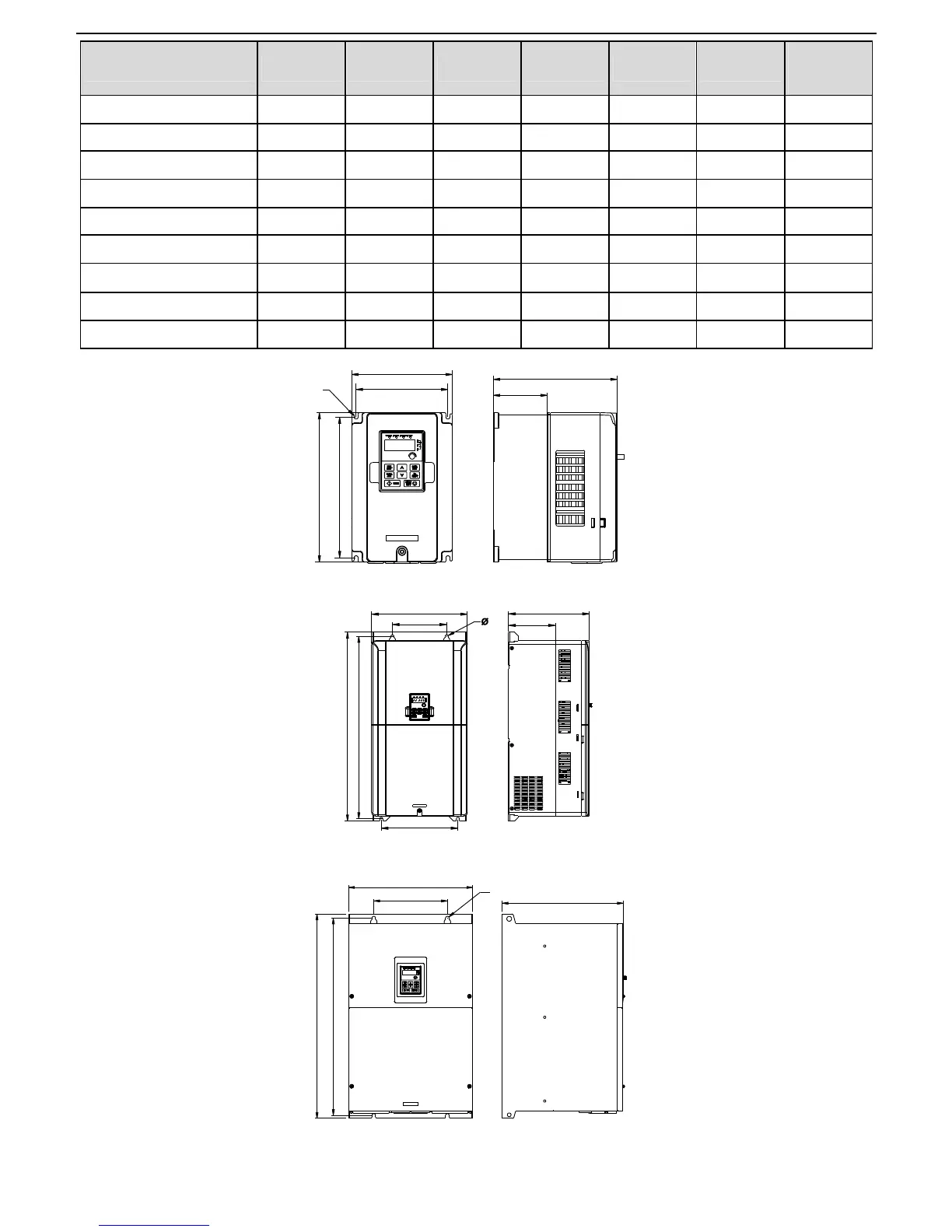

Wall mounting of 3PH 380V 4~37kW and 3PH 220V 1.5~7.5 kW inverters
H1 H2
W2
W1
D1
D2
W3
Wall mounting of 3PH 380V 45~75kW inverters
W1
W2
H1 H2
Ø
D1
Wall mounting of 3PH 380V 90~110kW inverters
