INVT GD20-0R7G-4 User Manual

Goodrive20 inverters Appendix B
125

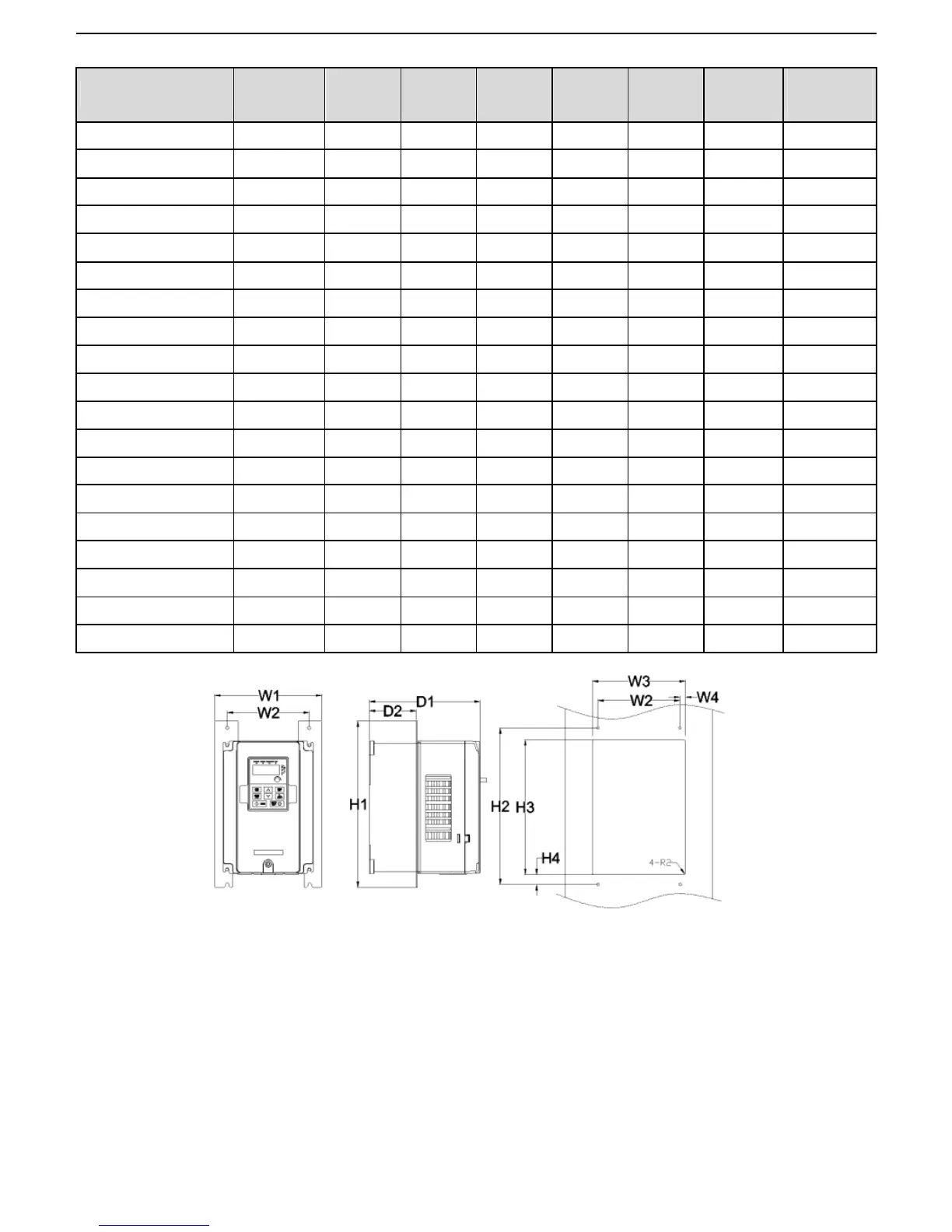

Dimension (unit: mm)
Model W1 W2 W3 H1 H2 D1 D2
Installation
hole
GD20-1R5G-2 146.0 131.0 — 256.0 243.5 167.0 84.5 6
GD20-2R2G-2 146.0 131.0 — 256.0 243.5 167.0 84.5 6
GD20-004G-2 146.0 131.0 — 256.0 243.5 167.0 84.5 6
GD20-5R5G-2 170.0 151.0 — 320.0 303.5 196.3 113.0 6
GD20-7R5G-2 170.0 151.0 — 320.0 303.5 196.3 113.0 6
GD20-004G-4 146.0 131.0 — 256.0 243.5 167.0 84.5 6
GD20-5R5G-4 146.0 131.0 — 256.0 243.5 167.0 84.5 6
GD20-7R5G-4 170.0 151.0 — 320.0 303.5 196.3 113.0 6
GD20-011G-4 170.0 151.0 — 320.0 303.5 196.3 113.0 6
GD20-015G-4 170.0 151.0 — 320.0 303.5 196.3 113.0 6
GD20-018G-4 200.0 185.0 — 340.6 328.6 184.3 104.5 6
GD20-022G-4 200.0 185.0 — 340.6 328.6 184.3 104.5 6
GD20-030G-4 250.0 230.0 — 400.0 380.0 202.0 123.5 6
GD20-037G-4 250.0 230.0 — 400.0 380.0 202.0 123.5 6
GD20-045G-4 282.0 160.0 226.0 560.0 542.0 238.0 138.0 9
GD20-055G-4 282.0 160.0 226.0 560.0 542.0 238.0 138.0 9
GD20-075G-4 282.0 160.0 226.0 560.0 542.0 238.0 138.0 9
GD20-090G-4 338.0 200.0 — 554.0 535.0 329.2 — 9.5
GD20-110G-4 338.0 200.0 — 554.0 535.0 329.2 — 9.5
Flange mounting of 3PH 380V 4~75kW and 3PH 220V 1.5~7.5kW inverters
