Operation
Operating Levers/Pedals

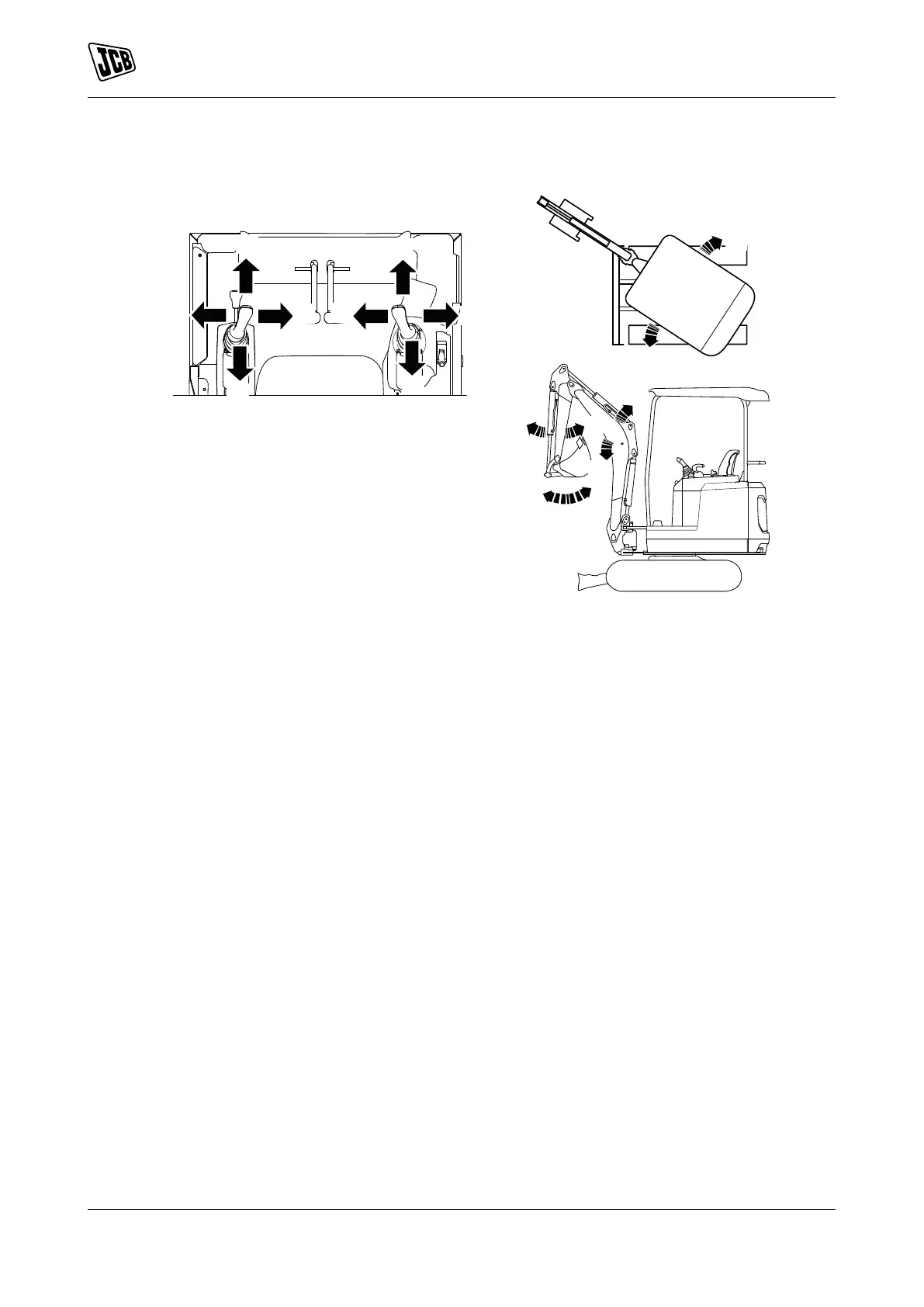

Excavator Levers (ISO Control Pattern)
Figure 37.
F
B
G
A
E
C
H
D
H
G
D
F
A
B
E
C
A Slew cab left B Slew cab right
C Raise boom D Lower boom
E Dipper in F Dipper out
G Crowd bucket (to gather a load) H Dump bucket (to dump a load)
55 9831/8250-4 55
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
