Section E Hydraulics
9803/8550
Section E
Issue 1
Hydraulic Filter
25 - 1
Removal and Replacement
See Section 3 Routine Maintenance for renewal of the filter
element.
!!
WARNING
Hydraulic Pressure
Hydraulic fluid at system pressure can injure you. Before
disconnecting or connecting hydraulic hoses or
couplings, vent the pressure trapped in the hoses in
accordance with the instructions given in this
publication.
HYD-1-5
Before working on the hydraulic system ensure that the
engine is switched off and the starter key removed.
1 Vent the hydraulic pressure (see page E/2 - 1).
2 Remove the battery compartment cover and the
corresponding inside panel.
3 Remove the hydraulic filler cap.
4 Remove the hydraulic tank drain plug at the rear of the
tank and drain the hydraulic oil to below the level of the
filter return connection.
Note: Always drain into a suitable container.
5 Disconnect and blank the connections to the filter.

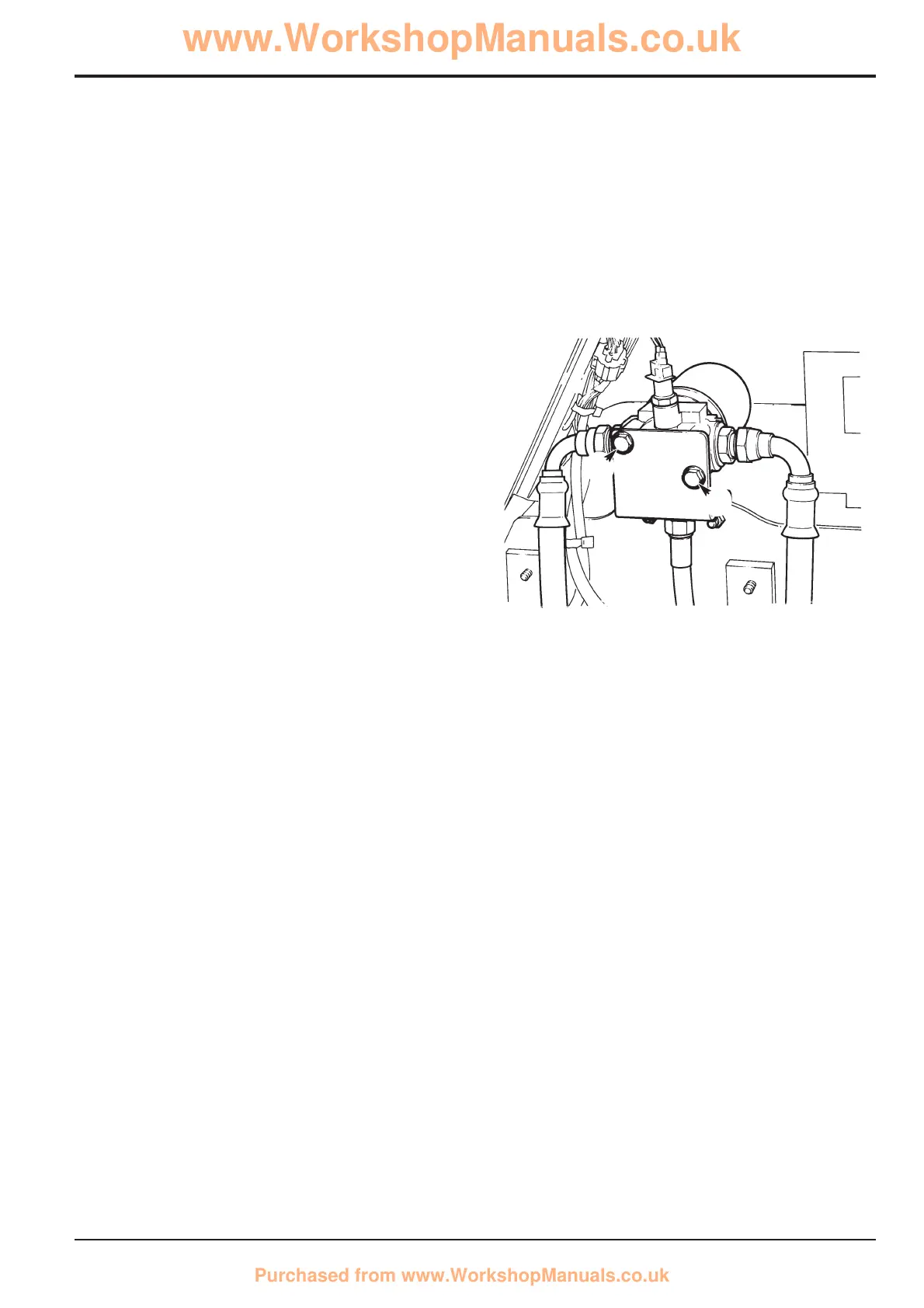

6 Remove bolts A and withdraw filter assembly from
machine.
Replacement is a reversal of the removal procedure. Start
and run the engine for a few minutes then check for leaks.
Top up as necessary with the correct fluid.
25 - 1
204350
A
A
