Section B Body and Framework
9803/8550
Section B
1 - 1
Issue 1
To gain access to the pumps, motors, valves and pipework,
it is necessary to remove some of the floor plates.
Removal and Replacement

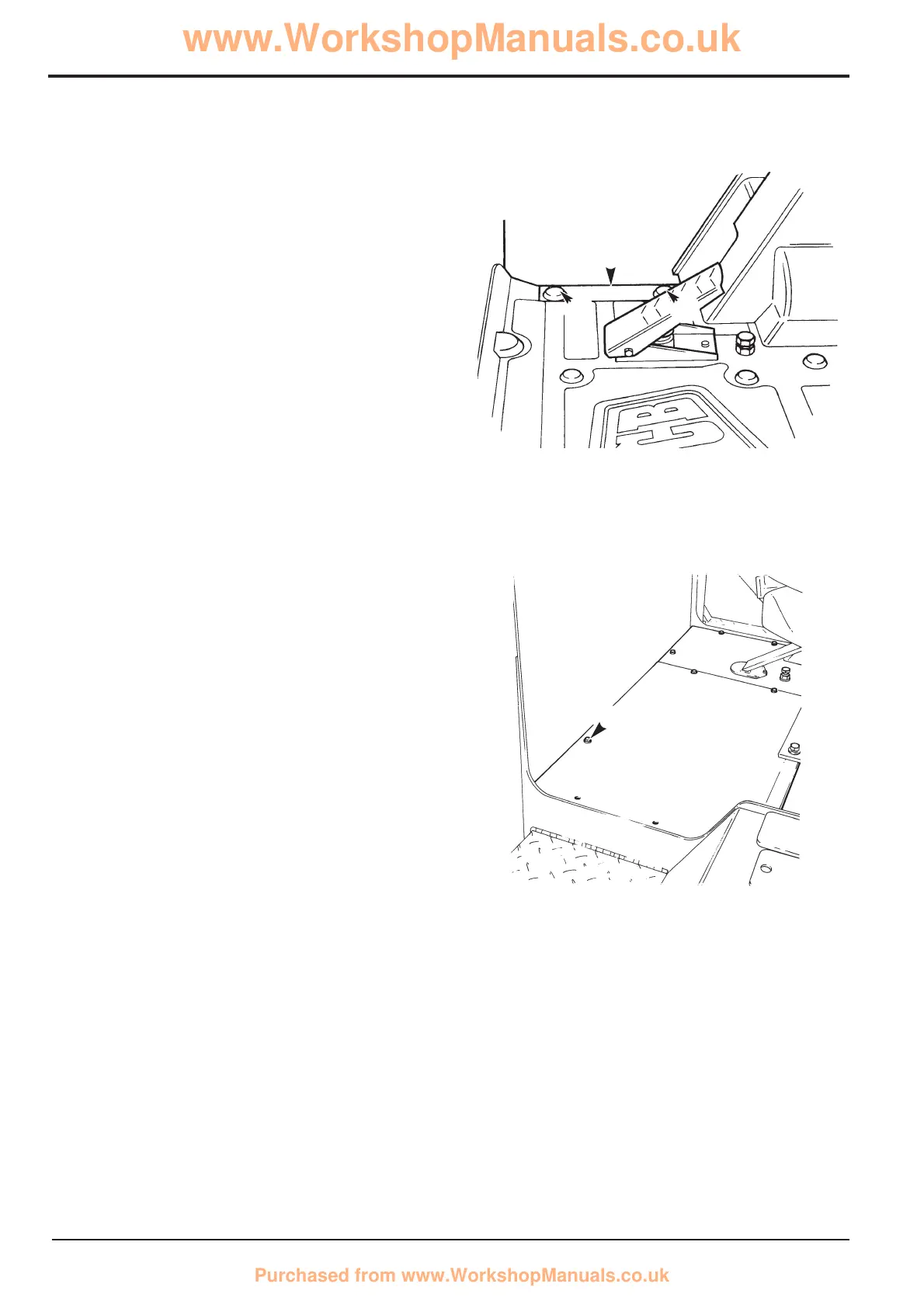

1 At each side, remove the two bolts A and the metal
strip B which hold the floor mat in position.
2 Carefully feed the mat out from the left hand side of the
machine (the mat is split at the right hand side to make
this easier).
3 Remove the bolts C holding the required section of
floor plate.
Replacement is a reversal of the removal procedure.
