Section C Electrics
9803/8550
Section C
Technical Data
1 - 3
Circuit Protection
from machine no. 751600 to 752370
Fuses

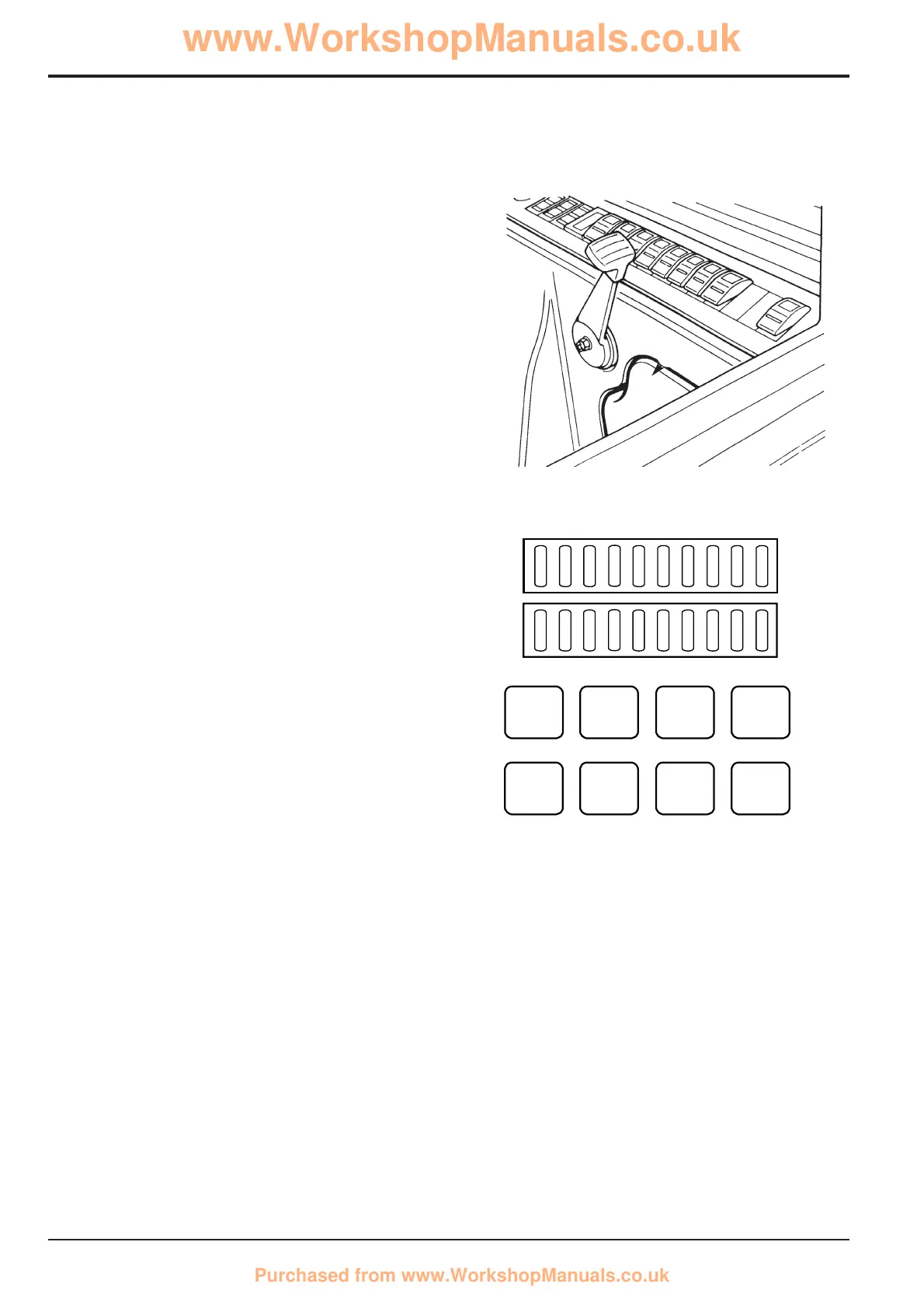

The electrical circuits are protected by fuses. The fuses are
located behind panel H.
A1 Parkbrake
A2 Auxiliary Hydraulics
A3 High-flow Hydraulics
A4 Instrumentation
A5 Front / Rear Horn
A6 Hazard Indicators
A7 Direction Indicators
A8 Engine Shut-off Solenoid
A9 Front Wash/wipe, Rear Wiper
A10 Heater Motor
B1 Dip Beam
B2 L.H. Side Lights
B3 R.H. Side Lights
B4 Front Work Lights
B5 Rear Work Lights
B6 Reverse Alarm, Brake Lights
B7 Hand Held Attachments, Float Hydraulics
B8 Face Level Fan
B9 Junction Box
B10 Beacon, Interior Light
Fuse Colour Code
Orange 5 amp
Red 10 amp
Blue 15 amp
Relays from machine no. 751600 to 752370
The relays are located behind panel H.
1 Work Light
2 Park Brake
3 Ignition
4 Isolator
5 Horn
6 Neutral Start
7 Indicator Flasher
8 Alarm Buzzer
1 - 3
Issue 2*
S203812
