4 - 2
Removal and Replacement
XUD Engines
Removal
Disconnect the battery negative lead.
Disconnect the wiring from the rear of the alternator.
Loosen the pivot bolt A and the adjustment lock nut B.
Unscrew the adjustment bolt C to release the tension then
slip the drive belt from the pulleys.
Remove the adjustment lock nut B. Swivel the alternator
outwards, remove the pivot bolt A and lift it from the engine.
Examine the drive belt for wear.
Replacement
Replacement is a reversal of the removal procedure.
Position the alternator until belt deflection at X is
approximately 10 mm (
3
/8 in). Part tighten A and B, then
adjust bolt C until deflection is 10 mm at X. Fully tighten A
and B.
Torque Settings
A 35 Nm (26 lbf ft, 3.6 kgf m)
B 35 Nm (26 lbf ft, 3.6 kgf m)
Section C Electrics
9803/8550
Section C
4 - 2
Issue 3*

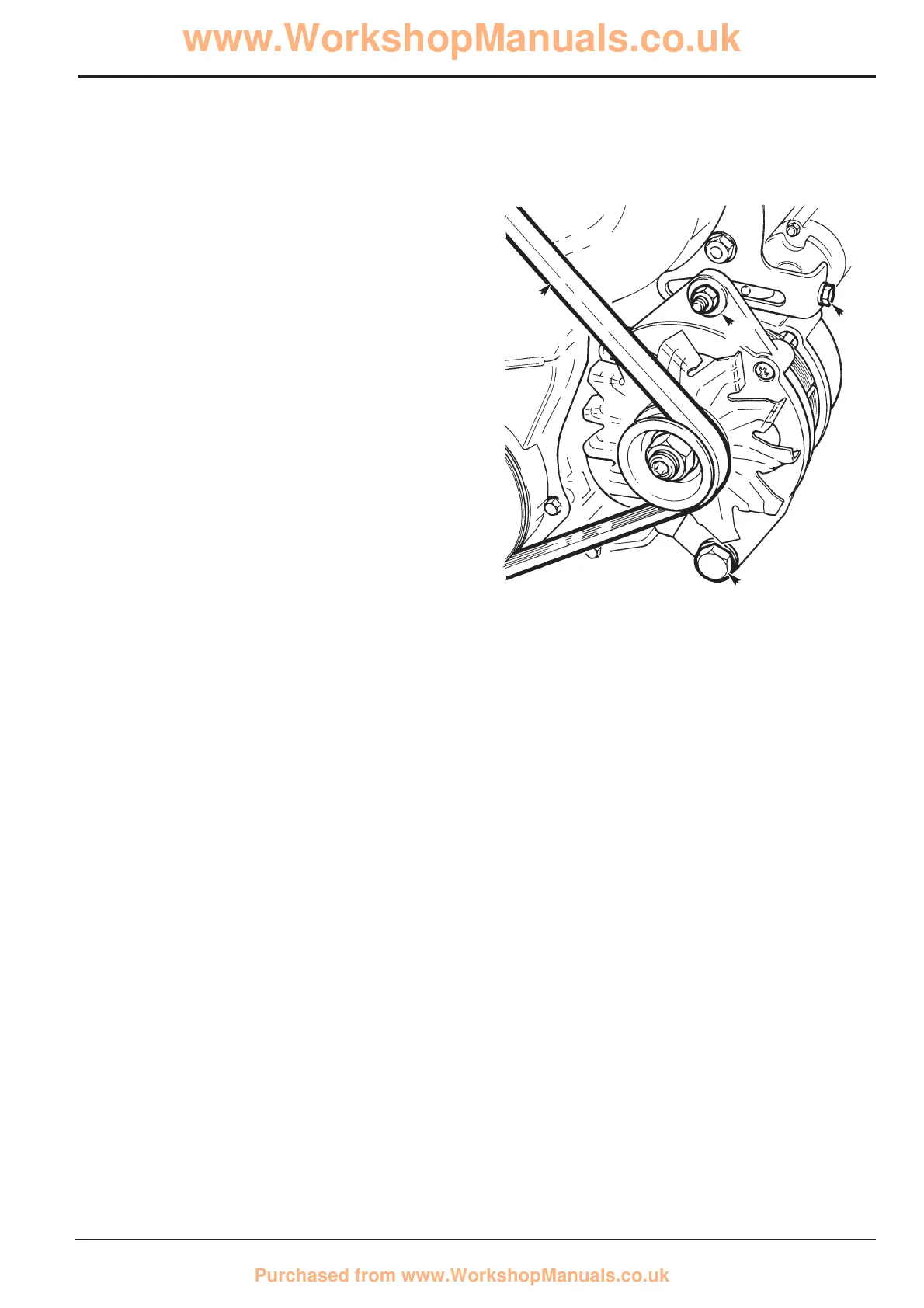

Alternator
S203910
X
A
B
C
*
