Engine (cont'd)
Checking the Oil Level - XUD engine
- for interval, see Service Schedule
!!
WARNING
Hot oil and engine components can burn you. Make sure
the engine is cool before doing this job.
2-3-3-2
1 Park the machine on level ground and lower the
attachments to the ground.
2 Stop the engine and remove the starter key.
3 Raise the bonnet.

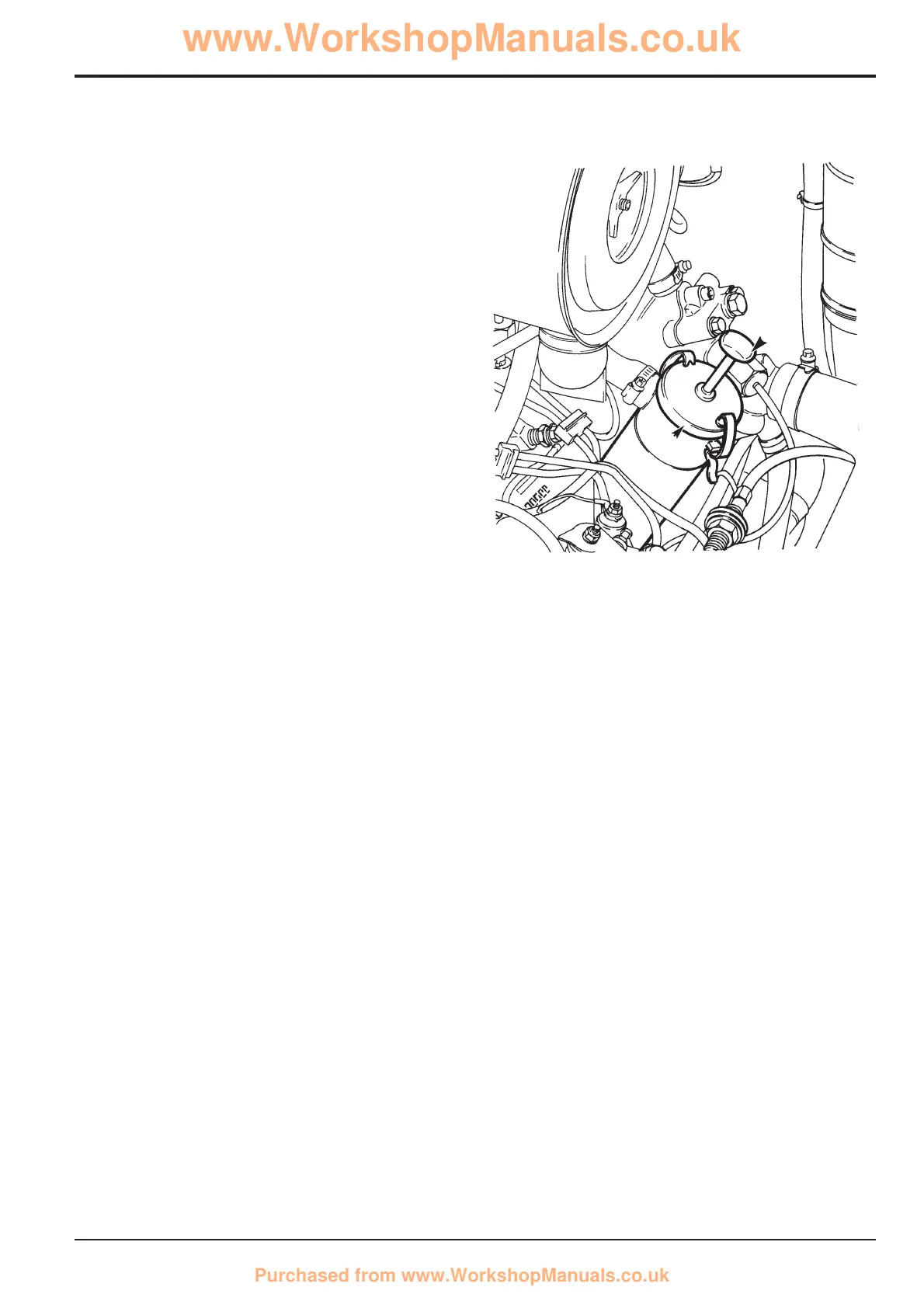

4 Check that the oil level is between the two marks on
the dipstick A.
5 If necessary, add the recommended oil through the filler
point B.
6 Make sure the filler cap and the dipstick are secure.
7 Close the bonnet.
Changing the Oil and Filter- for interval, see Service
Schedule
!!
WARNING
Hot oil and engine components can burn you. Make sure
the engine is cool before doing this job.
2-3-3-2
!!
WARNING
Oil is toxic. If you swallow any oil, do not induce
vomiting, seek medical advice. Used engine oil contains
harmful contaminants which can cause skin cancer. Do
not handle used engine oil more than necessary. Always
use barrier cream or wear gloves to prevent skin
contact. Wash skin contaminated with oil thoroughly in
warm soapy water. Do not use petrol, diesel fuel or
paraffin to clean your skin.
INT-3-2-3
1 Do Steps 1 to 3 of Checking the Oil Level
2 Remove the left hand side panel.
Section 3 Routine Maintenance
9803/8550
Section 3
10 - 2
Issue 3*
202770
A
B
*
To Next Page
