Section A Optional Attachments
9803/8550
Section A
Issue 1
5 - 1
The Manure/Silage fork is fitted with a top grab as standard
which gives extra security to the pay load when moving the
machine.
The grab is opened and closed by a hydraulic ram mounted
on the fork frame.
Daily Maintenance
1 Clean with the rest of the machine.
2 Check for damage Make sure the tines are secure and
in good condition.
3 Check for signs of hydraulic leaks
!!
WARNING
Fine jets of hydraulic fluid at high pressure can penetrate
the skin. Do not use your fingers to check for hydraulic
fluid leaks. Do not put your face close to suspected
leaks. Hold a piece of cardboard close to suspected
leaks and then inspect the cardboard for signs of
hydraulic fluid. If hydraulic fluid penetrates your skin, get
medical help immediately.
INT-3-1-10/1

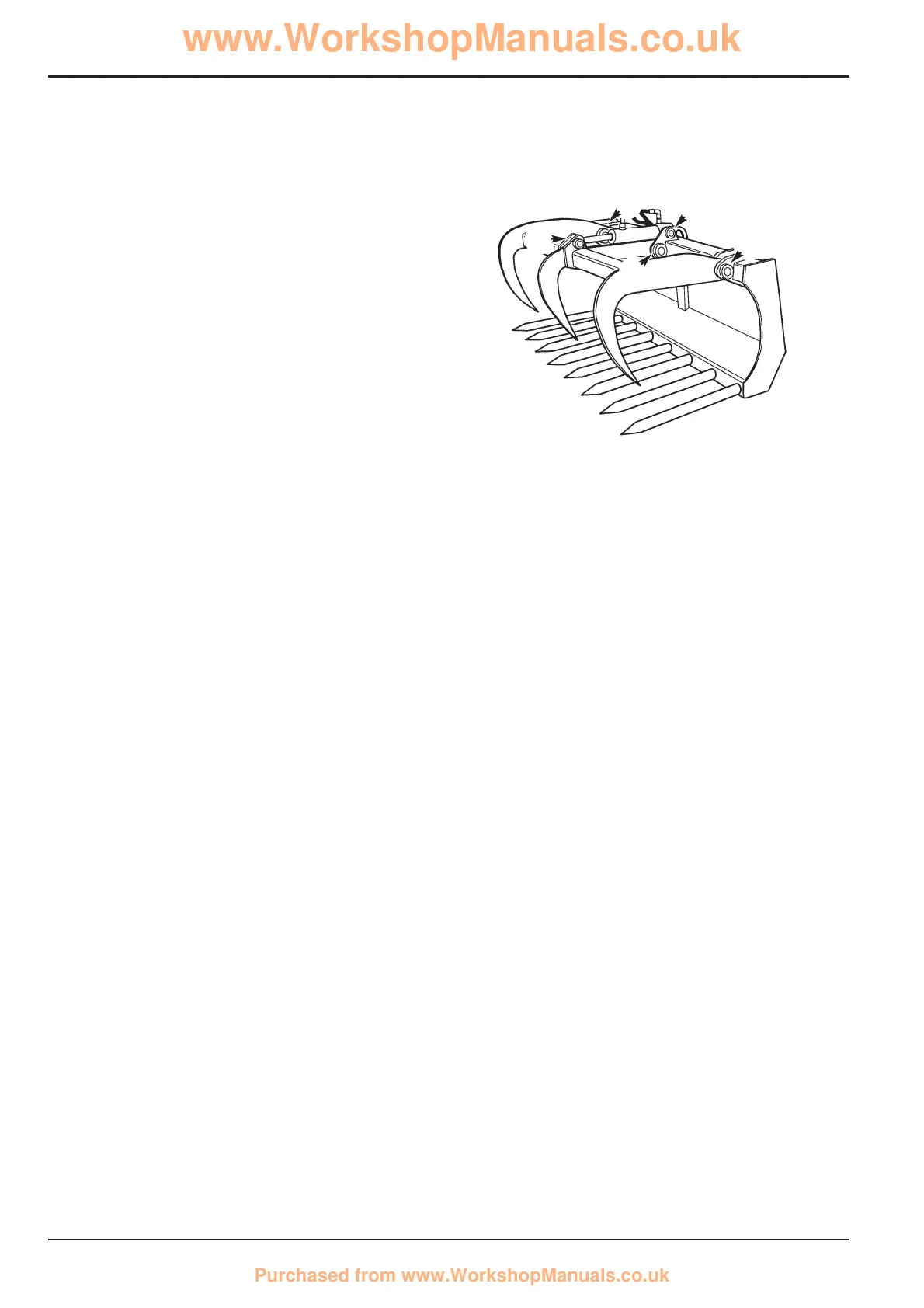

4 Grease at the points indicated.
Total of 5 grease points.
5 - 1
Manure/Silage Fork with Top Grab
2
3
4
5
1
174620
