5 - 2
Removal and Replacement
XUD Engines
Disconnect the battery negative lead.

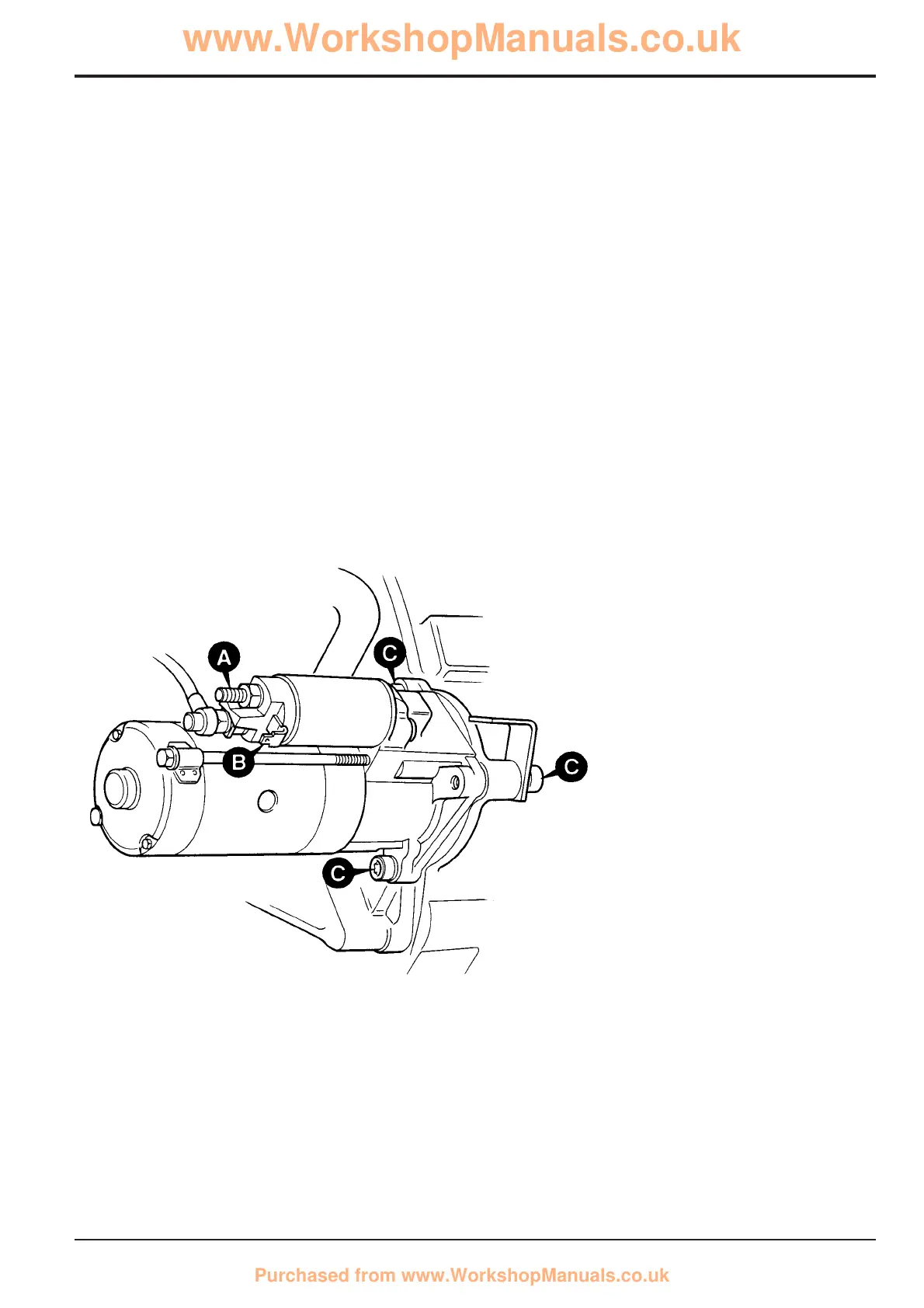

Disconnect the cables from main starter terminal A and
solenoid terminal B. Unscrew securing bolts (3 off) and
withdraw the starter.
Replacement is a reversal of the removal procedure.
Torque Settings
Securing bolts C 34 Nm (25 lbf ft, 3.5 kgf m).
Service Procedures
Servicing this equipment is not recommended. Should
faults occur, then the starter motor should be changed for a
Service Replacement.
Removal and Replacement
100 and 400 Series Engines
For Removal, Replacement and Servicing procedures refer
to 100 Series Engine Workshop Manual (JCB part no.
9806/2100) or 400 Series Engine Workshop Manual (JCB
part no. 9806/2190).
Section C Electrics
9803/8550
Section C
5 - 2
Issue 3*
Starter Motor
*
*
*
