Routine Maintenance
Engine
231 231
9811/9950-1
Changing the Inner Element
C035060

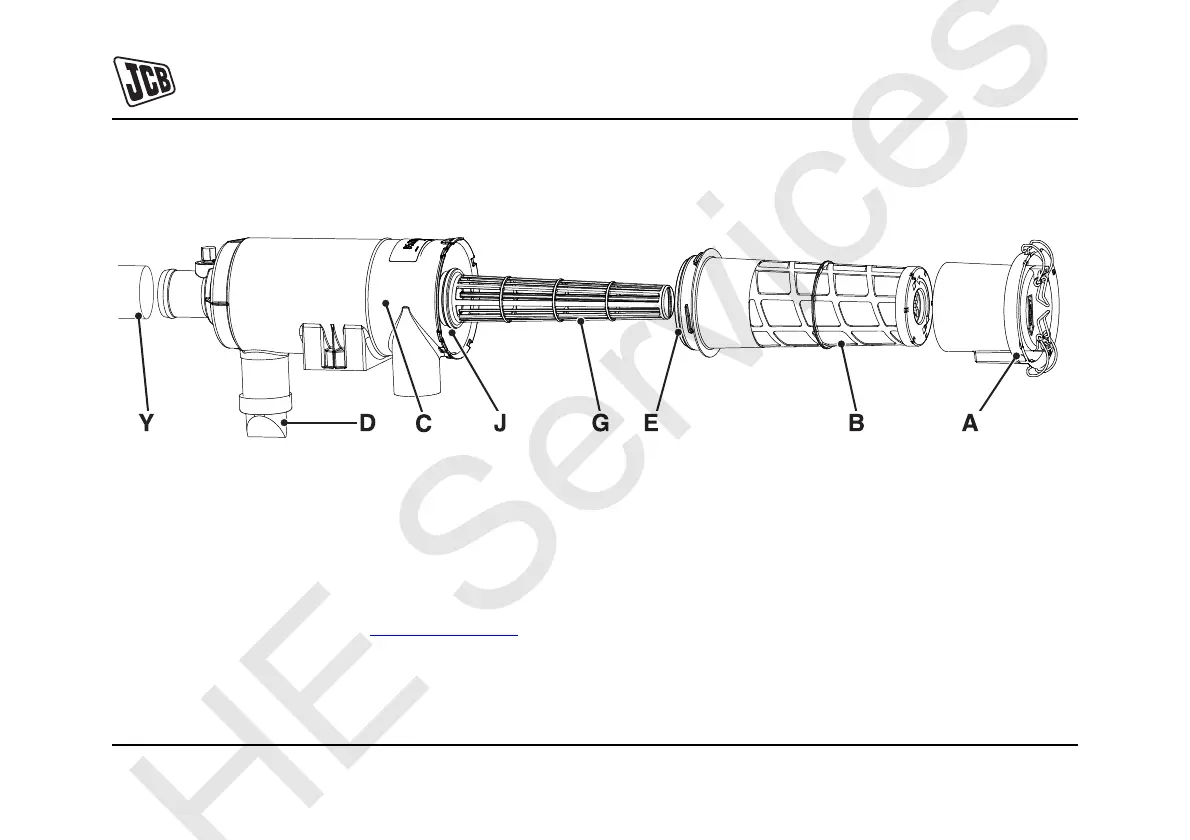

Fig 89.
1 Get access to the air filter. Refer to Access Panels,
Engine Cover.
2 To prevent dust getting into the engine, remove the
induction hose Y. Cover the hose to prevent rain and
dirt getting into the engine. K
Fig 89. ( T 231).
3 Undo the two retaining clips holding the cover A and
remove the element B by twisting anti-clockwise.
4 Remove inner element G.
5 Clean inside of canister C and dust valve D with a
vacuum cleaner.
To Next Page
