Specifications
Vibration
297 297
9811/9950-1
Vibration
Introduction
T5-001
To assist in compliance with European Directive 2002/44/
EC, duty specific vibration emission values for this
machine type have been provided on the following page(s)
and may be used for the assessment of risks to exposure
from vibration.
Unless otherwise indicated for a specific operating
condition, vibration values are determined with the
machine equipped with standard attachments (i.e. bucket,
shovel, fork, etc.) for the respective operating condition.
Vibration values are determined from measurements in
three perpendicular axes (X, Y and Z).
K

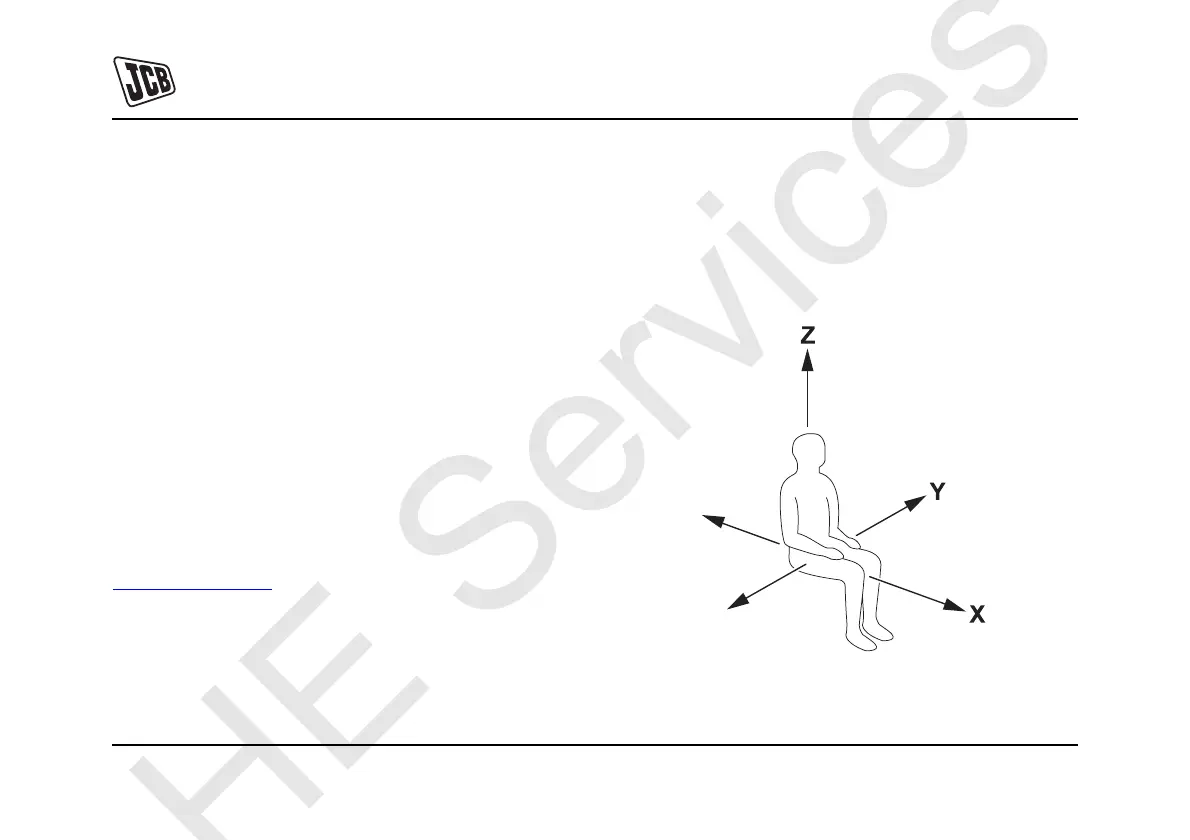

Fig 122. ( T 297). The highest weighted (rms) value is
used to specify the vibration emission.
Note: The axis upon which the highest weighted (rms)
value occurs is stated on the vibration chart for each of the
Machine Operating Duties, see Dominant Axis (X, Y or
Z).
Fig 122.
