Routine Maintenance
Fuel System
237
237
981
1/9950-1

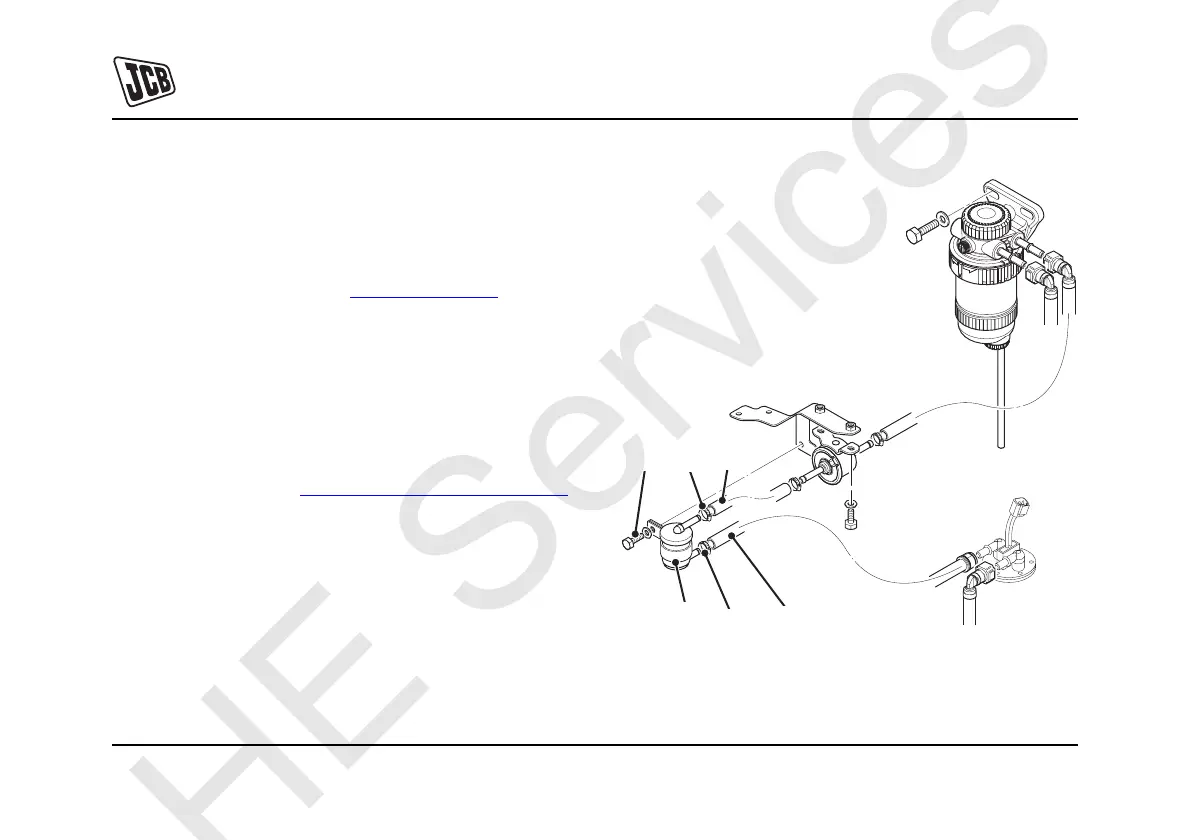

Replacing the Fuel Pre Filter Element
1
Get access to the engine. Refer to
A
ccess Panels,
Engine Cover
.
2
Clamp the fuel hoses
A
.
K
Fig
92.
(
T
237)
.
3
Disconnect the fuel hose clips
B
.
4
Remove the bolt
C
, Collect the washer
, Remove the
fuel pre filter
D
.
5
Install new filter in re
verse order
.
6
Bleed the system.
K
Bleeding the System
(
T
23
8)
.
Fig
92.
T016500
C
B
B
D
A
A
HE Services
254
256
