Section E - Hydraulics
E-37 E-37
9803-9560-4
Rams
Lift Ram
Removal
!MWARNING
Lifting Equipment
You can be injured if you use faulty lifting equipment.
Make sure that lifting equipment is in good condition.
Make sure that lifting tackle complies with all local
regulations and is suitable for the job. Make sure that
lifting equipment is strong enough for the job.
INT-1-3-7
1 Raise and support the skip to give access to the ram
pivots.
2 Stop the engine and ensure that all hydraulic
pressure is released from the system by operating the
tilt lever.
3 Drive out the roll pins A securing the rod end pivot pin.
4 Drive out the rod end pivot pin, taking care to support
the ram.
5 Disconnect and plug the hydraulic feed hoses B.
6 Start the engine and operate the lift lever to retract the
ram. Stop the engine.
7 Drive out the roll pins C from the dump end pivot pin.
8 Support the weight of the ram and drive out the dump
end pivot pin.
9 Lift the ram clear of the machine.
Replacement
Replacement is a reversal of the removal procedure.
Grease all pins with JCB Special HP Grease.

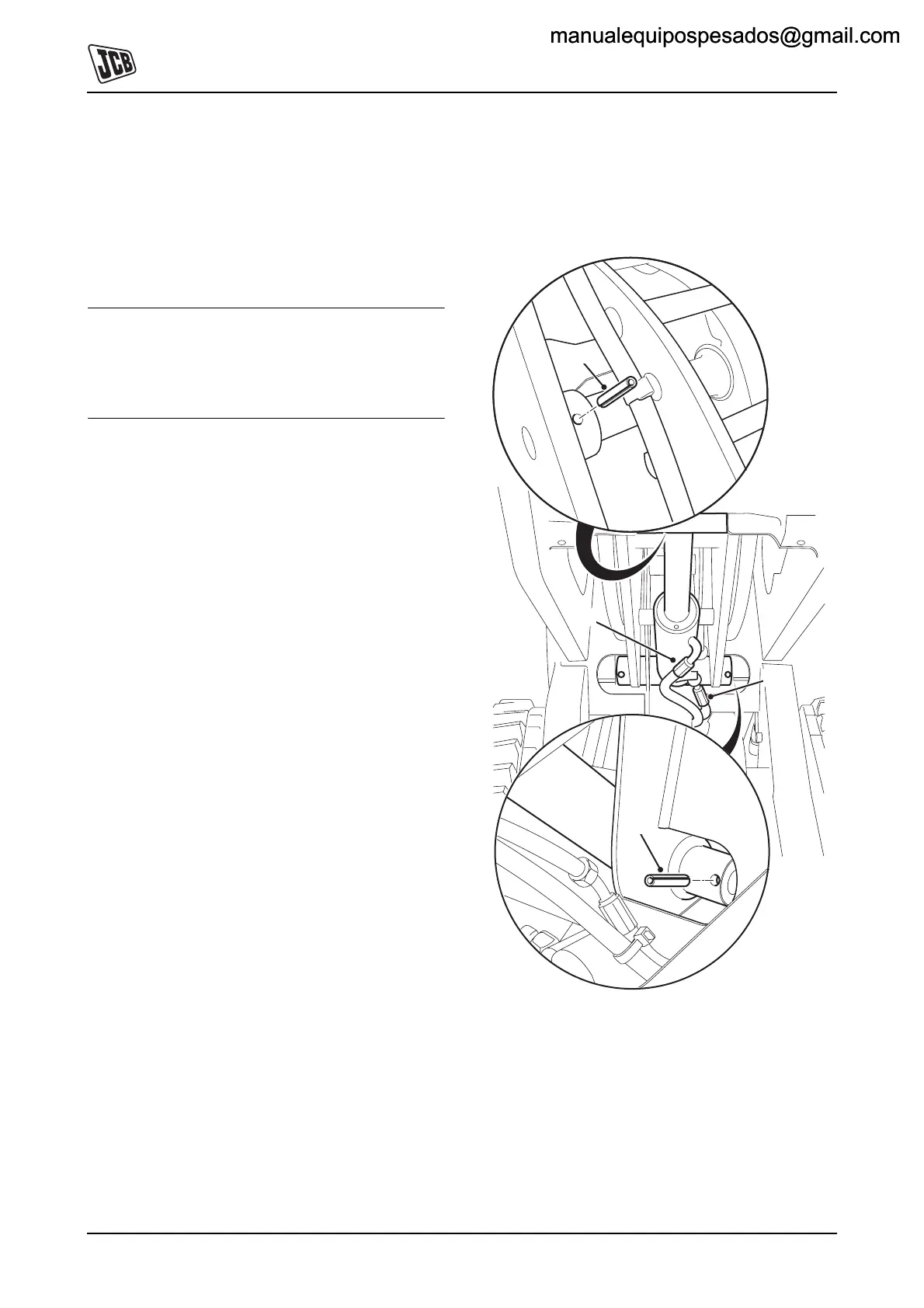

Fig 1.
A
B
C
B
