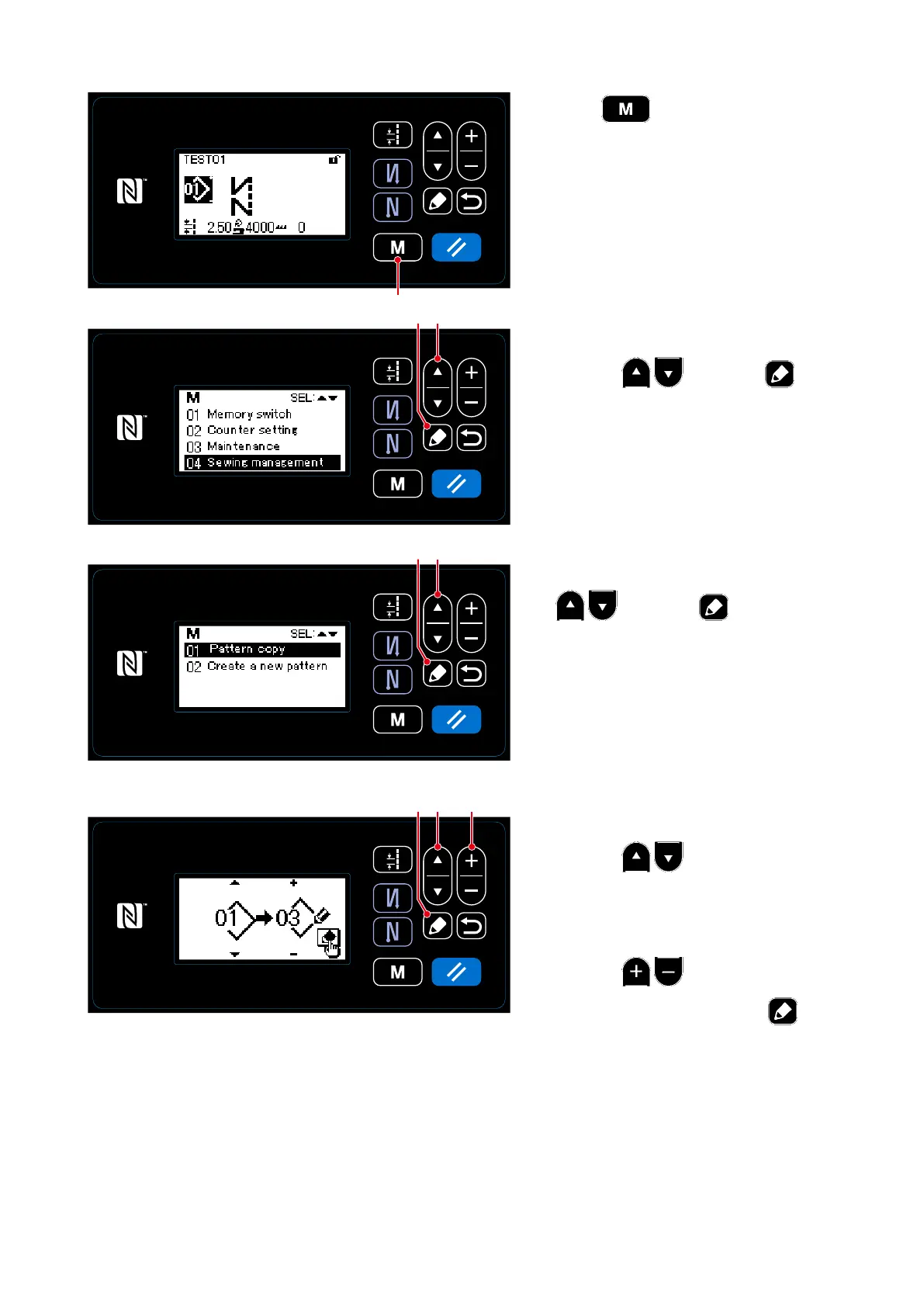

4-2-9. Copying a pattern
1. Press
❾
.
2.
Select "04 Sewing management" by
pressing
❶
. Press
❺
.
3.
Select "01 Pattern copy" by pressing
❶
. Press
❺
.
4.
Enter a source pattern number by
pressing
❶
.
5.
Enter a pattern number to be given
to the pattern to be copied from the
above-selected source pattern by
pressing
❷
.
6.
Copy the pattern by pressing
❺
.
❶
❺
❷
❶
❺
❶
❺
❾
– 42 –
45
47
