– 4 –

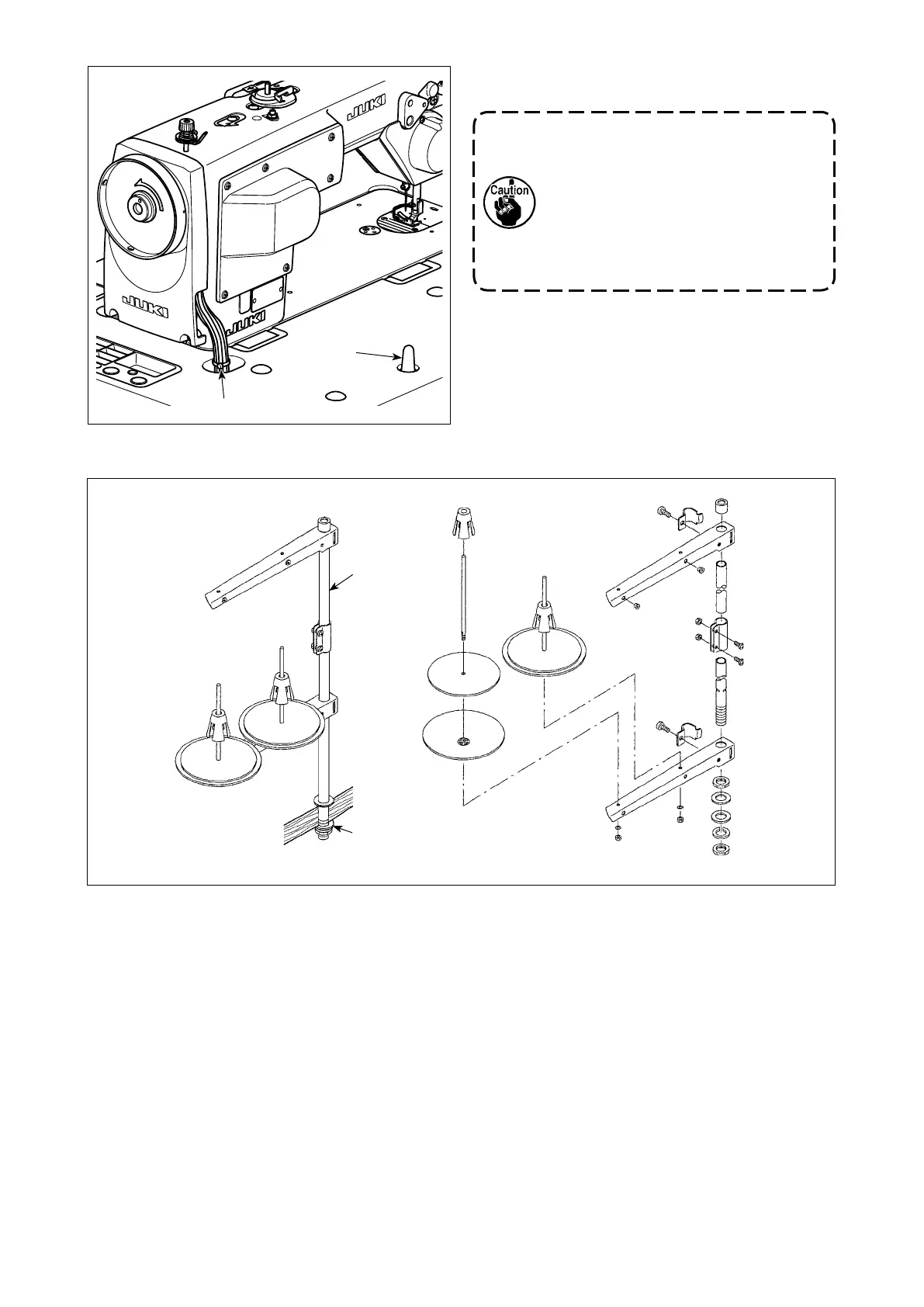

Be sure to mount the machine head
support rod
❾
on the machine table so
that its height from the table surface
becomes 63 to 68 mm. For the sewing
machine provided with the AK device,
be sure to mount the support rod
❾
on
the table so that its height from the table
surface becomes 33 to 38 mm.
2-4. Installing the thread stand
4) Securely attach head support rod ❾ to the table
until it goes no further.
5) Bundle cable clip band supplied as accessories
of the machine head at the root of the cable.
❷
❶
❾
1) Assemble the thread stand unit, and insert it in the hole in the machine table.
2) Tighten nut ❶.
3) For ceiling wiring, pass the power cord through spool rest rod ❷.
To Next Page
