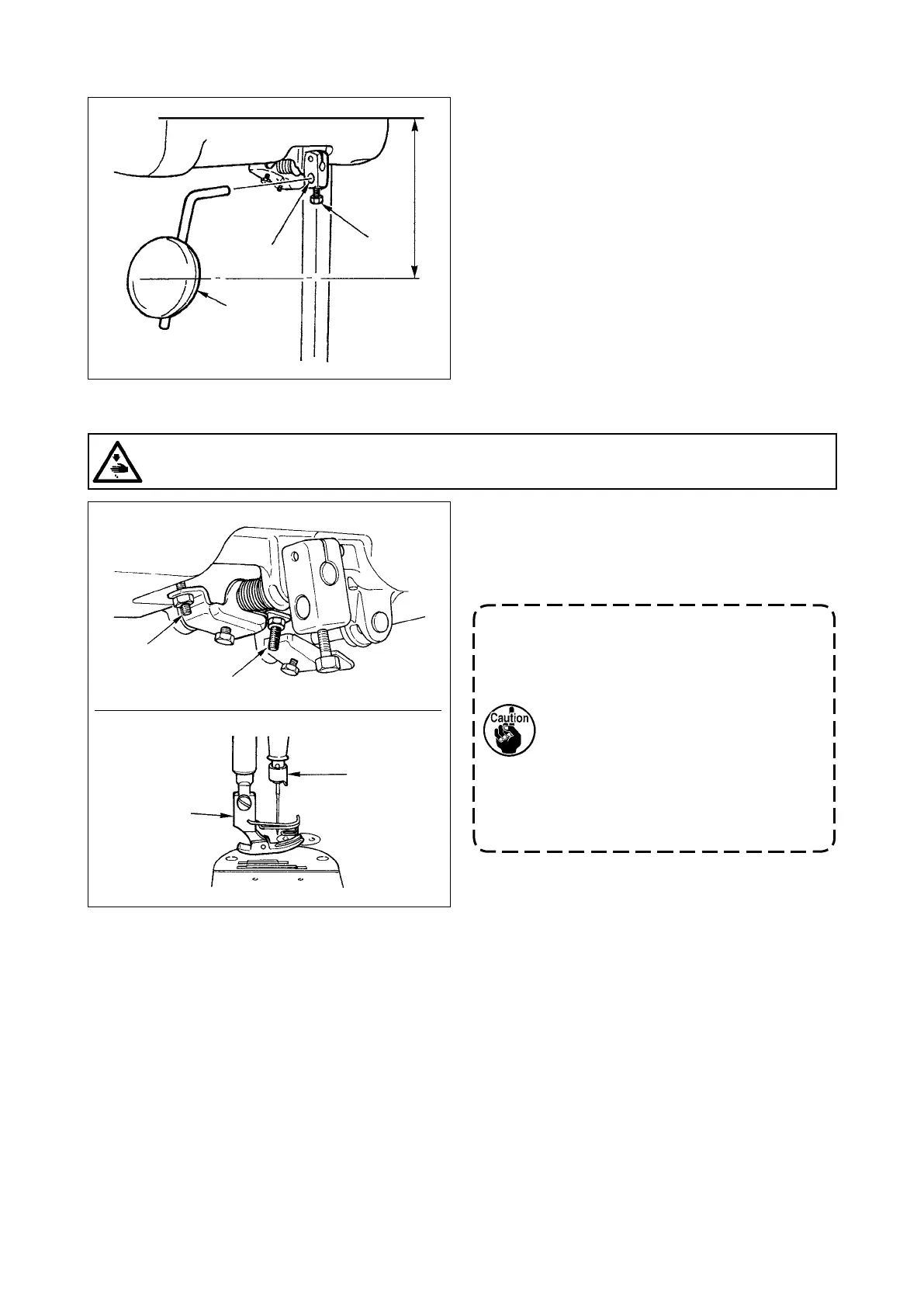

The standard height of the presser foot lifted using
the knee lifter is 10 mm.
You can adjust the presser foot lift up to 15 mm
using knee lifter adjust screw ❶.
Insert knee lifter pad ❶ into attaching hole ❷ and
tighten it with bolt ❸.
* Adjust the position of knee lifter pad ❶ to a conve-
nient place.
For the reference dimension, the position is 220
mm from the bottom face of table.
2-5. Attaching the knee lifter pad
2-6. Adjusting the height of the knee lifter
❷
❶
❸
220 mm
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
❸
❷
❶
❹
1. Do not operate the sewing machine
in the state that the presser foot ❸
is lifted by 10 mm or more since the
needle bar ❷ comes in contact with
the presser foot ❸.
2. Knee lifter initial position
If the adjustment screw ❹ is over
tightened, the sewing machine will
operate in a state where the presser
foot is lifted up, causing defective
sewing or noise.
To Next Page
