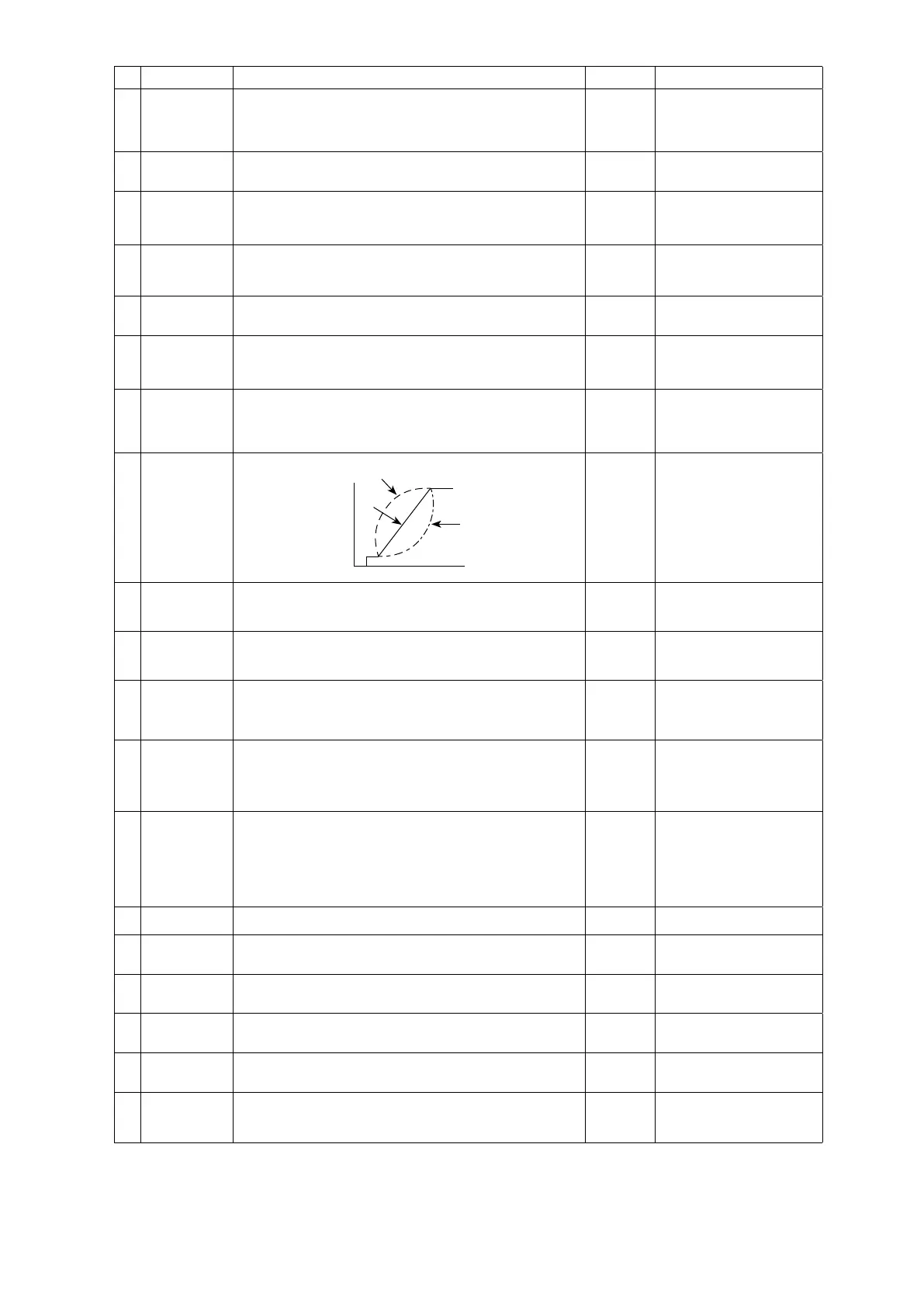

- 28 -
No
Item Description
Setting range
Indication of function setting
64
Change-
over speed of
condensation
stitch or EBT (end
back tack)
Initial speed when starting condensation stitch or EBT
0 to 250
(sti/min)
64 180
70
Function of soft-
down of presser
foot
Presser foot is slowly lowered.
0 : Presser foot is rapidly lowered.
1 : Presser foot is slowly lowered.
0/1
70 0
71
Double reverse
feed stitching
function
This item is not used on the IP-110F.
0/1
71 1
72
Sewing
machine startup
selecting
function
Current limit at the startup of sewing machine is specied.
0 : Normal (Current limit is applied during startup)
1 : Rapid (Current limit is not applied during startup)
0/1
72 0
73
Retry function
This function is used when needle cannot pierce materials .
0 : Normal
1 : Retry function is provided.
0/1
73 1
76
One-shot function
This item is not used on the IP-110F.
0/1
76 0
*
84
Initial motion
suction time of
presser foot lifting
solenoid
Suction motion time of presser foot lifting solenoid
50 to 500
(ms)
84 140
87
Function of pedal
curve selection
Pedal curve is selected. (Improving pedal inching operation)
0/1/2
87 0
90
Initial motion up
stop function
Automatic UP stop function is set immediately after turning ON the
power.
0 : off
1 : on
0/1
90 1
91
Function of prohibiting
compensation
operation after turning
handwheel by hand
It is effective in combination with the machine head provided
with tension release function.
0 : Tension release function is ineffective.
1 : Tension release function is effective.
0/1
91 1
92
Function of
reducing speed
of reverse feed
stitching at the
start of sewing
Function to reduce speed at the time of completion of reverse
feed stitching at the start of sewing.
0 : Speed is not reduced.
1 : Speed is reduced.
0/1
92 0
93
Function added to
needle up/down
compensating
switch
Operation of needle up/down compensating switch is changed
after turning ON the power or thread trimming.
0 : Normal (needle up/down compensating stitching only)
1 : One stitch compensating stitching is performed only when
aforementioned changeover is made. (Upper stop / upper
stop)
0/1
93 0
94
Continuous +
One-shot nonstop
function
The function that does not stop the sewing machine by
combining continuous stitching with one-shot stitching using the
program sewing function which is available in the IP operation
panel.
0 : Normal (The sewing machine stops when a step is com-
pleted.)
1 : The sewing machine does not stop when a step is com-
pleted and proceeds to next step.
0/1
94 0
96
Max. number of
rotation setting
Max. number of rotation of the sewing machine head can be set.
(The MAX value differs by machine head.)
150 to MAX
(sti/min)
96 4000
103
Needle cooler
output OFF
delay time
Delay time from the stop of sewing machine to the output OFF is
specied using the needle cooler output function.
100 to
2000 ms
103 500
120
Main shaft
reference angle
compensation
Main shaft reference angle is compensated.
–50 to 50
120 -23
121
Up position
starting angle
compensation
Angle to detect UP position starting is compensated.
–15 to 15
121 5
122
DOWN position
starting angle
compensation
Angle to detect DOWN position starting is compensated.
–15 to 15
122 0
124
Setting of
energy-saving
function during
standby
Setting to reduce the power consumption while the sewing
machine is in standby state
0 : Energy-saving mode is ineffective
1 : Energy-saving mode is effective
0/1
124 0
*
Do not change the set values with asterisk (
*
) mark as they are functions for maintenance. If the standard set value set at the
time of delivery is changed, it is in danger of causing the machine to be broken or the performance to be deteriorated.
If it is necessary to change the set value, please purchase the Engineer’s Manual and follow the instructions.
Number of rotations
Pedal stroke
2
0
1
To Next Page
