− 107 −

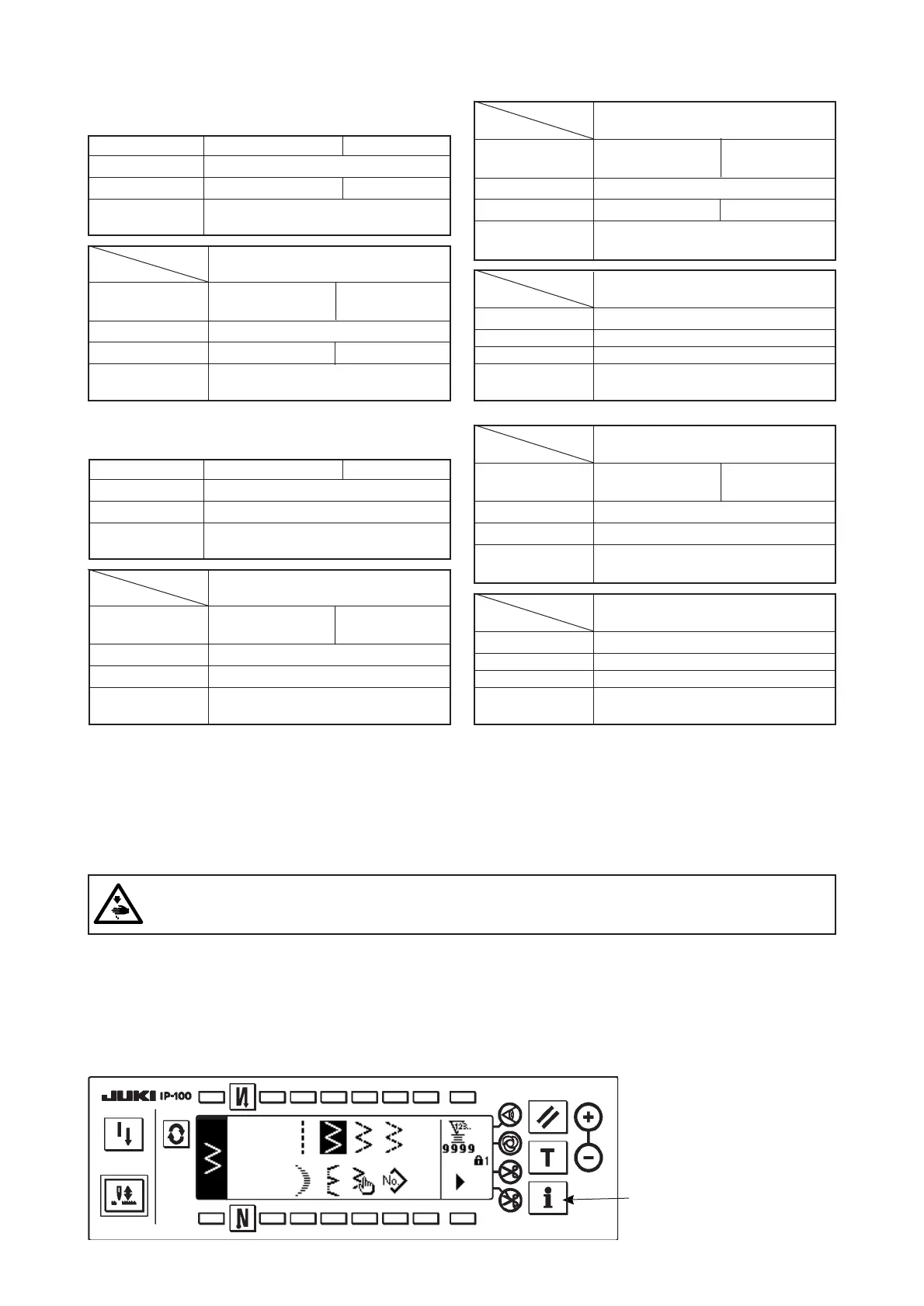

7. SPECIFICATIONS OF SC-915/916
8. FUNCTION SETTING PROCEDURE OF SC-915/916
WARNING :
To avoid possible personal injuries caused by movement other than that you desired, do not operate
the switches in the procedure other than those required, as described below, to specify the functions.
(Caution) 1. Do not perform switch operations other than those described in the following explanations.
2. Be sure to re-turn the power switch ON after one second or more has passed.
3. If the power is turned ON immediately after turning it OFF, the sewing machine may not
work normally. In this case, turn ON the power again.
There are two kinds of function settings, Level 1 and Level 2.
Level 1 : Change of setting can be performed without turning OFF the power switch.
Level 2 : It is necessary to turn OFF the power switch after change of setting.
For the details, refer to "9. FUNCTION SETTING LIST".
[Setting procedure of Level 2]
1) Turn ON the power. When the needle bar is not in its UP position, turn the handwheel to bring the needle bar
to its UP position.
2) Press switch 1 for
approximately three
seconds.
1
(1) How to change over to the function setting mode
Temperature : 0 to 40˚C
Humidity : 90% or less
Supply voltage Single phase 100V 3-phase 200V
Frequency 50 Hz / 60 Hz
Electric power 600VA
Operating
environment
Temperature : 0 to 40˚C
Humidity : 90% or less
Destination
For general export
Item
Supply voltage Single phase 3-phase 200V/
200V/220V/240V 220V/240V
Frequency 50 Hz / 60 Hz
Electric power 600VA
Operating
environment
Temperature : 0 to 40˚C
Humidity : 90% or less
Destination
For CE
Item
Supply voltage Single phase 220V/230V/240V
Frequency 50 Hz / 60 Hz
Electric power 600VA
Operating
environment
Temperature : 0 to 40˚C
Humidity : 90% or less
Destination
For JUS
Item
Supply voltage Single phase 3-phase 200V/
100V/110V/120V 220V/240V
Frequency 50 Hz / 60 Hz
Electric power 600VA
Operating
environment
(For use in Japan)
2) SC-916
Temperature : 0 to 40˚C
Humidity : 90% or less
Supply voltage Single phase 100V 3-phase 200V
Frequency 50 Hz / 60 Hz
Rated currency 8A 3A
Operating
environment
Temperature : 0 to 40˚C
Humidity : 90% or less
Destination
For general export
Item
Supply voltage Single phase 3-phase 200V/
200V/220V/240V 220V/240V
Frequency 50 Hz / 60 Hz
Rated currency 4.6A/4.3A/4.0A 3.0A/2.7A/2.3A
Operating
environment
Temperature : 0 to 40˚C
Humidity : 90% or less
Destination
For CE
Item
Supply voltage Single phase 220V/230V/240V
Frequency 50 Hz / 60 Hz
Rated currency 4.3A/4.2A/4.0A
Operating
environment
Temperature : 0 to 40˚C
Humidity : 90% or less
Destination
For JUS
Item
Supply voltage Single phase 3-phase 200V/
100V/110V/120V 220V/240V
Frequency 50 Hz / 60 Hz
Rated currency 8.0A/7.5A/7.0A 3.0A/2.7A/2.3A
Operating
environment
(For use in Japan)
1) SC-915
To Next Page
