JUKI IT-100D Engineer's Manual

− 148 −

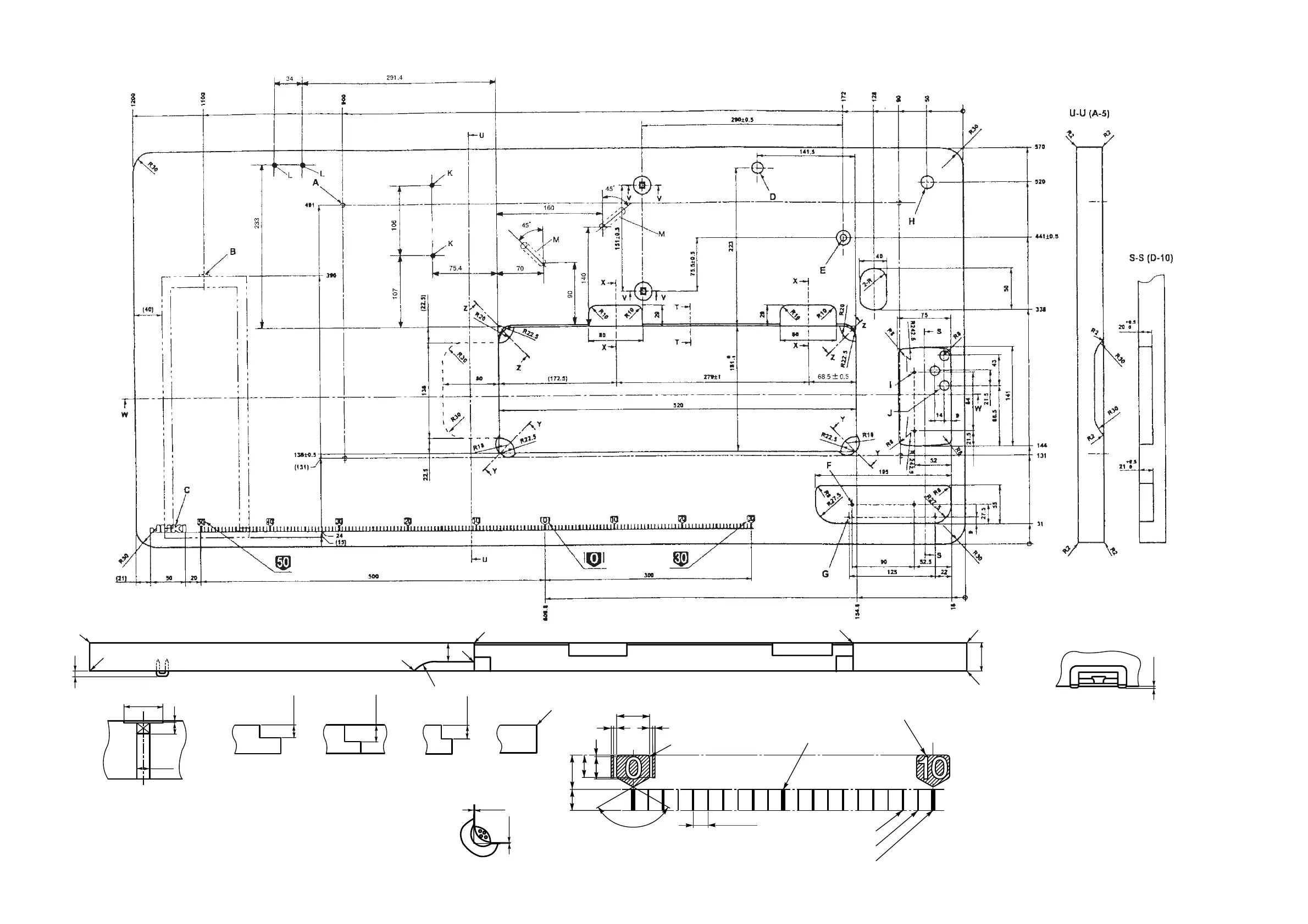

19. DRAWING OF TABLE
V-V (B-6)
(2 places)
X-X (C-6)
(2 places)
Y-Y (E-5)
(2 places)
Z-Z (D-5)
(2 places)
T-T (D-7)
(2 places)
Y-Y rubber cushion installing
drawing for reference
Dimension drawing in detail
Thickness : 1.5
Thickness : 0.8
Style of type : Helvetica Reg. Condensed
Condensed voided letters
C1.5 to C2.5
(for the hinge side only)
X-X rubber cushion installing
drawing for reference
R2
R2
(6)
R2
R30
25
R2
C1
C1
R2
R2
40
ø26
1
8
ø8.5
17.5±0.5
23.5±0.5
19.5±0.5
1.2±0.5
1.2±0.5
11
11
0.8
0.8
5-R1
0.5
7.5
7.5
11.5
7
120˚
5x160=600
Thickness : 0.5
Thickness : 1.5
1±0.5
A :4 x ø3.4 on the bottom surface, depth 20
(Drill a hole at the time of set-up)
B :Installing position of stopper for drawer
(on the reverse side)
C : JUKI logo type
D : ø16, depth 30
E :9 drill x ø20 chamfered, depth 17
F :2 x ø3, depth 10
G :2 x ø3.4 depth 10 (on the bottom surface)
(Drill a hole at the time of set-up)
H : ø18 drilled hole
I :2 x ø3 depth 10
J :3 x ø13 drilled hole
K : Bird's nest prevention device (installing solenoid
valve) ø3.4 on the bottom surface, depth 20
L : Bird's nest prevention device (installing regulator)
ø3.4 on the bottom surface, depth 20
M : Bird's nest prevention device solenoid valve cord
Installing position of staples for passing air pipe
Part No. : 23544000
W-W (E-1)
