−90 −
1 Re-sewing switch
2 Needle up/down
compensating switch
3 Screen changeover
switch
4 With/without reverse feed stitch
at sewing start switch
5 With/without reverse feed stitch
at sewing end switch
6 Reset switch
This switch is used to continue sewing from the step on the way
after replacing bobbin thread when bobbin thread has run out
during program stitching step.
This is the switch to perform needle up/down compensating
stitching. (Needle up/down compensating stitching and one stitch
compensating stitching can be changed over with function setting
No. 22.)
This is the switch to change over the screen.
This is the switch to turn ON/OFF automatic reverse feed stitch
at sewing start.
* This switch cannot be used with the sewing machine which is
not provided with automatic reverse feed stitching device.
This is the switch to turn ON/OFF automatic reverse feed stitch
at sewing end.
* This switch cannot be used with the sewing machine which is
not provided with automatic reverse feed stitching device.
This is the switch to make the value of bobbin thread counter or
sewing counter the set value.
1 Re-sewing switch
2 Needle up/down compensating switch
3 Screen changeover switch
4
With/without reverse feed stitch at sewing start switch
5
With/without reverse feed stitch at sewing end switch
6 Reset switch
7 Teaching switch
!5Power display lamp
!6 Smart media cover
!7 Smart media slot
(Smart media inserting opening)
!8 Smart media
(Optional :
Part No. HX005750000)
8 Information switch
9 Edge sensor switch
!0 One-shot stitching switch
!1
With/without automatic thread trimmer switch
!2Thread trimming prohibiting switch
!3Counter value setting switch
!4
Max.speed limitation variable resistor

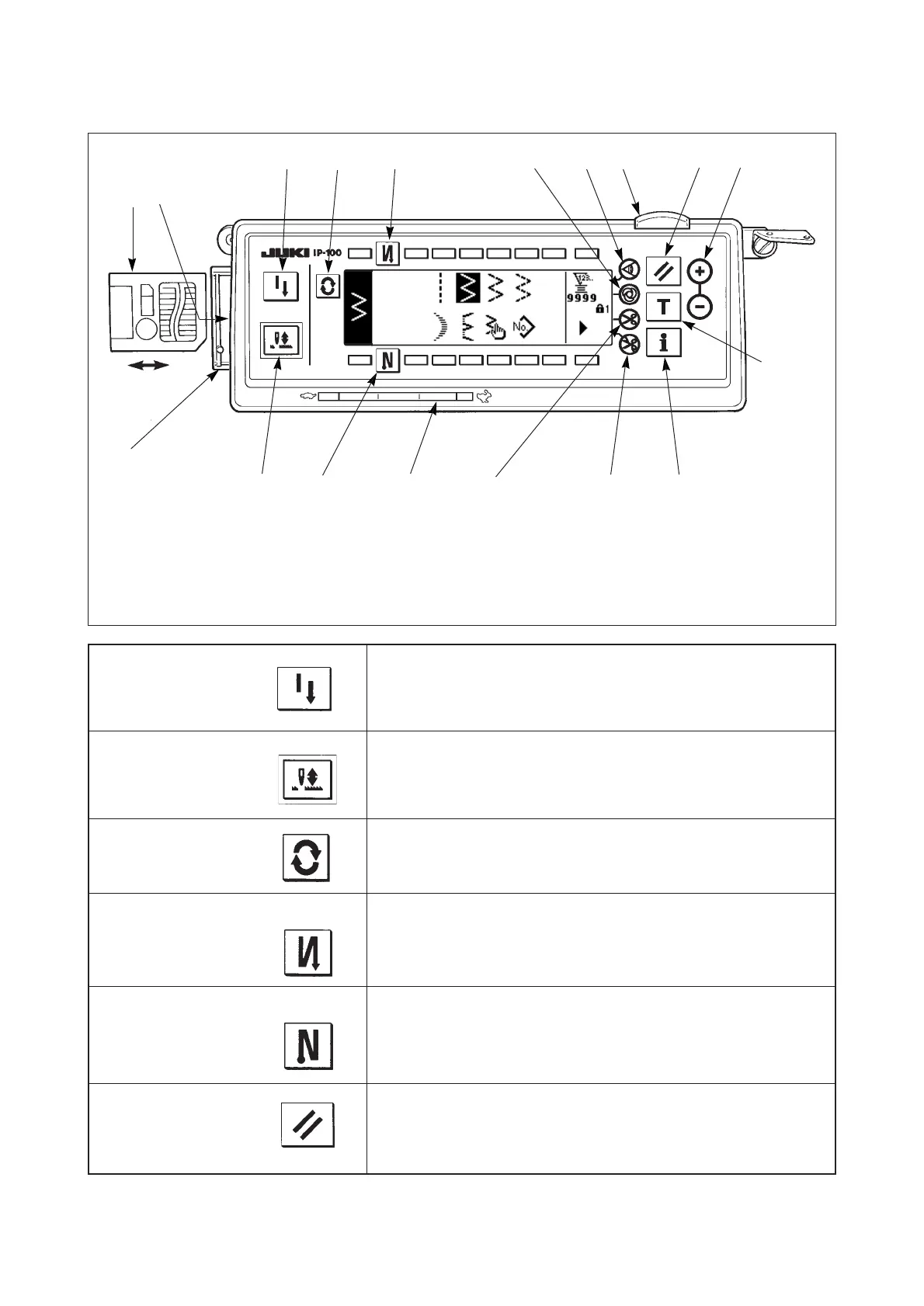

6. OPERATION PANEL
(1) Names of the respective sections
1
4
!7
3
6
9
!0
!3
!5
!6
25
!4
!1
!2
8
7
!8
