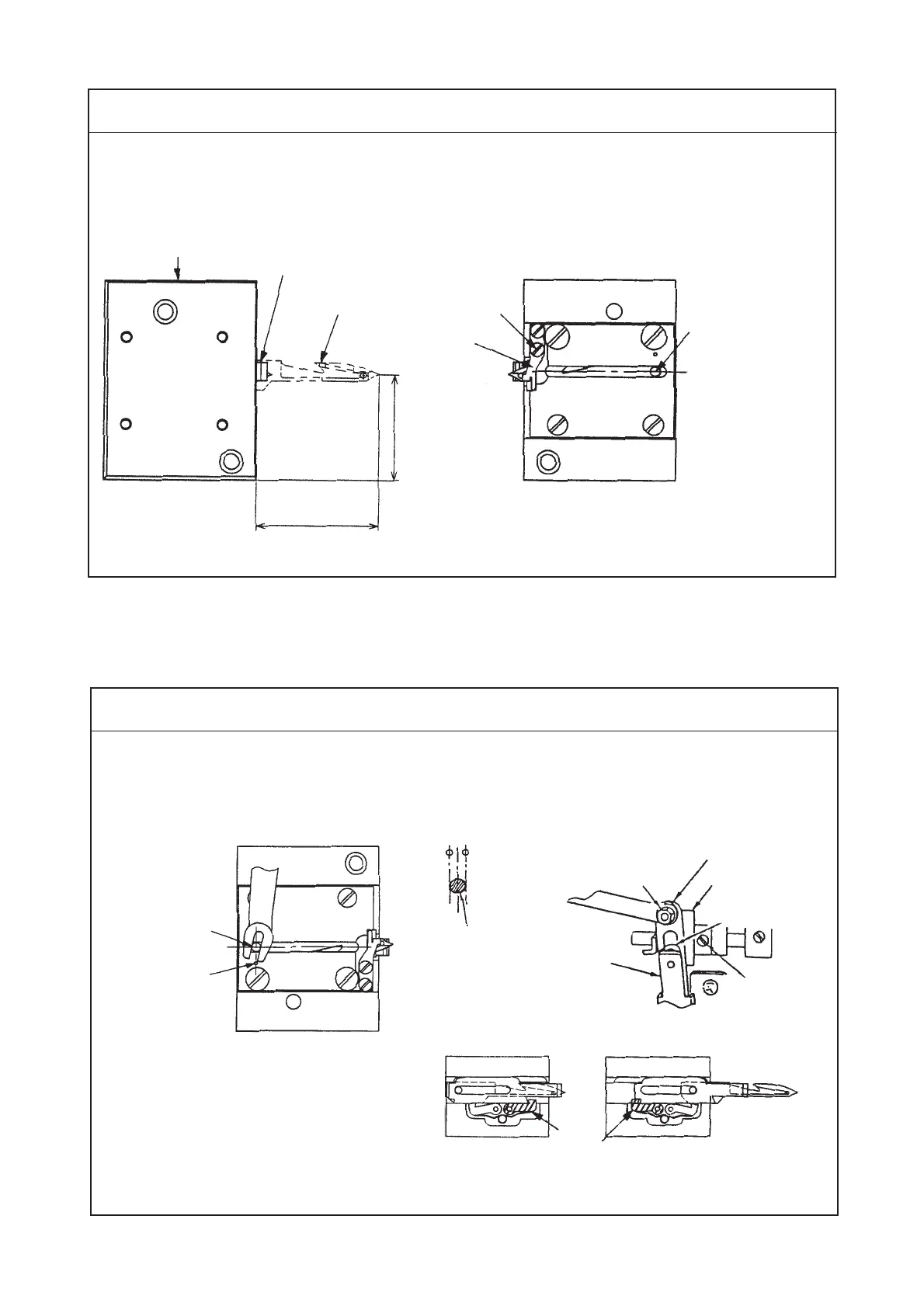

(23) Adjusting the thread trimming unit (Thread trimmer type only)
Standard Adjustment
3
1
2
(39mm)
(Frontmost)
5
4
6
(34 ± 0.5mm)
(24) Initial position of the moving knife (Thread trimmer type only)
Standard Adjustment
™ Moving knife pin 1 should be aligned with marker dot 2.
™ Acceptable range of the position of moving knife is as wide as the marker dot.
(Rearmost)
Latch
(Frontmost)
1
2
Marker dot
3
6
7
8
4
5
Internal mechanism of
thread trimming unit
