JUKI LU-2818-7 User Manual

– 8 –

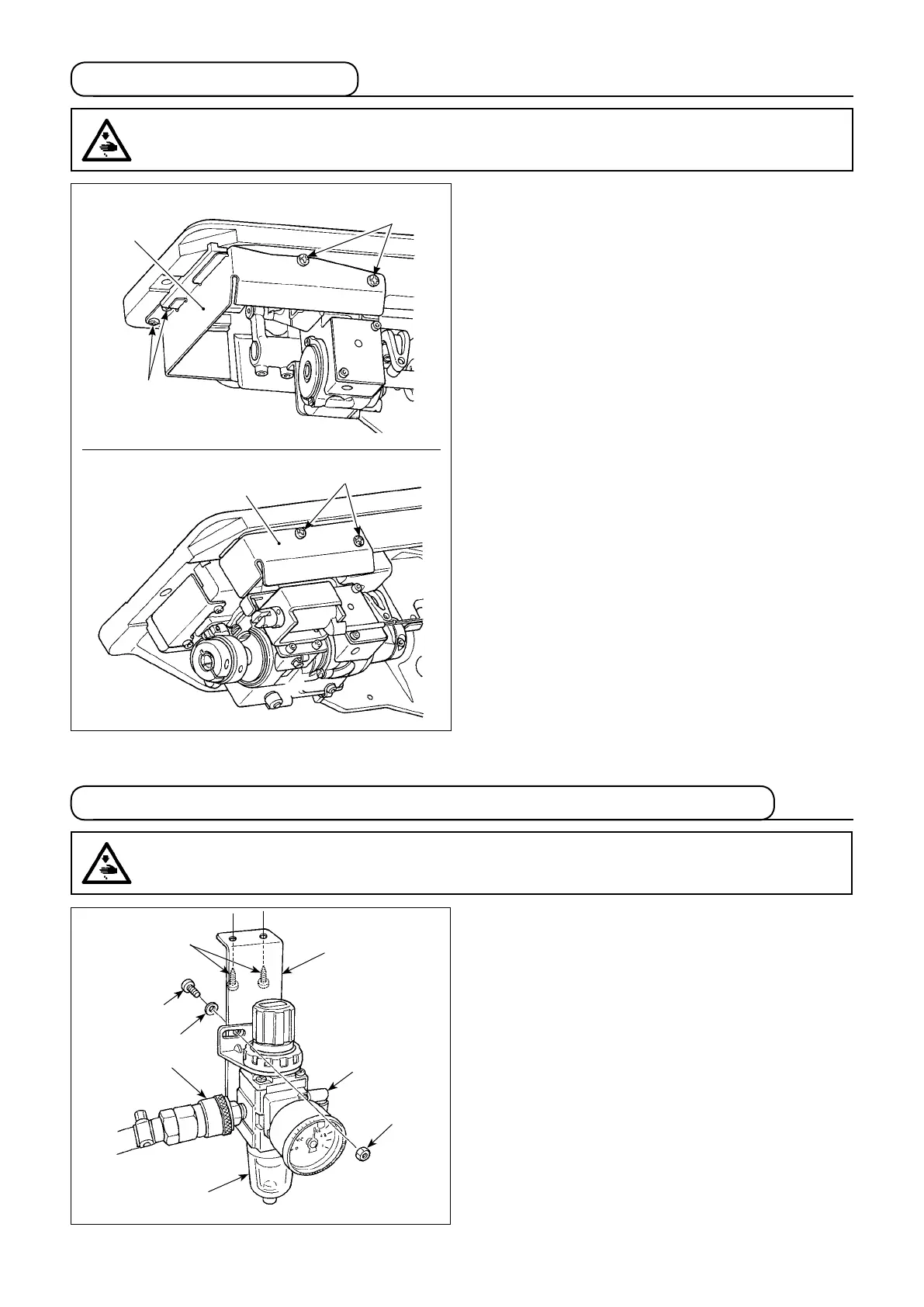

Install oil shield
❶
, supplied with the unit, on the
frame with screws
❷
.
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power off and ascertaining that the motor is at rest.
LU-2810, LU-2810-7, LU-2818-7
LU-2860, LU-2860-7, LU-2868-7
❷
❶
❷
❶
❷
2-4. Installing the oil shield
(1) Installing the regulator
1) Install regulator (asm.)
❶
on mounting plate
❺
with screw
❷
, spring washer
❸
and nut
❹
which are supplied with the unit.
2) Install couplings
❻
and
❼
on regulator
❶
.
3) Attach mounting plate
❺
on the undersurface of
the table with accessory screws
❽
supplied with
the plate.
4) Connect ø6 air tube coming from the sewing
machine to coupling
❻
.
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power off and ascertaining that the motor is at rest.
2-5. Pneumatic components (LU-2810-7, LU-2860-7, LU-2818-7, LU-2868-7)
❷
❶
❺
❻
❼
❹
❸
❽
