– 39 –
❶
Alternating vertical movement amount
change-over switch
If this switch is pressed the amount of the alter-
nating vertical movement of the walking foot and
the presser foot will be maximized. (Lamp above
the switch lights up)
Use this switch when a multilayered portion of
the sewing product is not smoothly fed.
To change over the amount of the alternating
vertical movement of the walking foot and the
presser foot by means of the knee switch, join
the knee switch and the mounting plate, sup-
plied with the unit, together and x them on the
table with wood screw.
For the wiring, refer to
"5-8. Knee switch"
p.41
.
❷

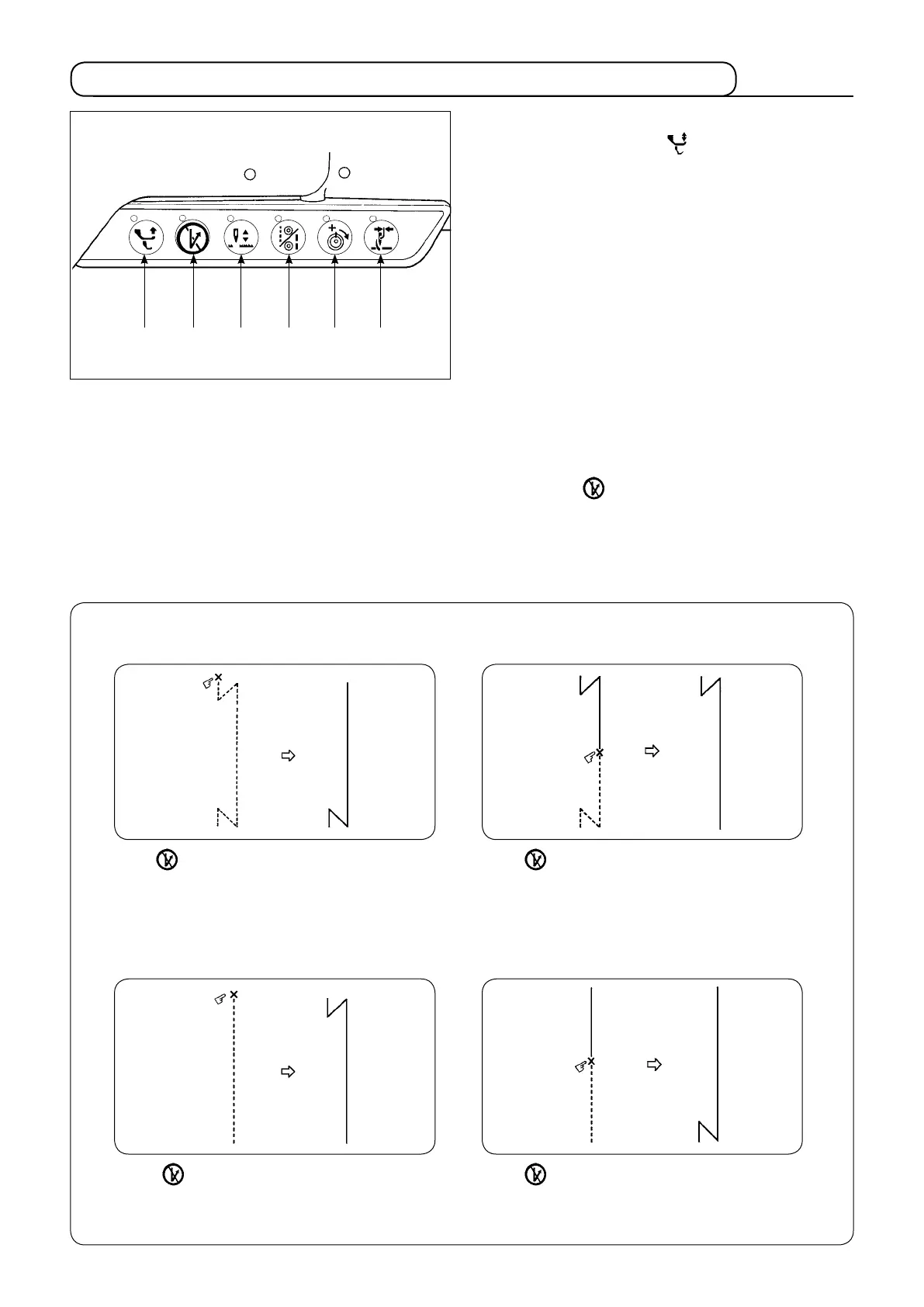

Automatic reverse feed stitching cancellation/addition switch
• If this switch is pressed when the following automatic reverse feed stitching has been specied, the re-
verse stitching will not take place (for once immediately after it is pressed). (Example 1)
• If this switch is pressed when no automatic reverse feed stitching has been specied, the reverse feed
stitching will take place (once immediately after it is pressed). (Example 2)
(Example 1) In the case where both automatic reverse feed stitching for start and that for end
have been specied :
(Example 2) In the case where neither automatic reverse feed stitching for start nor that for end
have been specied :
If the switch is pressed before starting sew-
ing, the automatic reverse feed stitching for
start (between
A
and
B
) will not be carried out.
If the switch is pressed during sewing, the
automatic reverse feed stitching for end (be-
tween
C
and
D
) will not be carried out.
If the switch is pressed before starting
sewing, the automatic reverse feed stitching
for start (between
A
and
B
) will be carried out.
If the switch is pressed during sewing, the
automatic reverse feed stitching for end (be-
tween
C
and
D
) will be carried out.
A
B
C
D
A
B
C
D
C
D
A
B
C
D
A
B
❶ ❷ ❸ ❹ ❺ ❻
5-7. Operation switches (LU-2810-7, LU-2860-7, LU-2818-7, LU-2868-7)
