– 30 –
1) Move the moving knife
❺
by hand to its forward travel end.
• Adjusting the counter knife
2) Loosen counter knife base setscrews
❶
. Adjust the position of the counter knife so that top end of the
counter knife
❸
so that it is spaced 1.2 to 1.5 mm from the end face of the throat plate in terms of the
lateral direction, and so that it is pressed against the stepped section of hook driving shaft saddle in
terms of the longitudinal direction. Then, tighten setscrews
❶
.
Loosen counter knife setscrews
❼
. Adjust the distance between the bed slide mounting plane and the
counter knife tip to 37 ±
0.1mm for the LU-2810-7 and LU-2860-7, or 34.5 ± 0.1 mm for the LU-2818-7
and LU-2868-7. Then, tighten setscrews
❼
.
• Adjusting the knife pressure
3) Loosen setscrews
❷
in the moving knife.
Turn the handwheel to move the moving knife and adjust the knife pressure.
As the standard adjustment, the knife pressure should be applied from the time when the distance from
the top end of the moving knife to the top end of the counter knife is 6 to 7 mm for the LU-2810-7, or 8
to 9 mm for the LU-2860-7, -2818-7 and -2868-7.
1.
Adjust the knife pressure in the state that the clamp spring
❹
does not come in contact with the
moving knife
❺
(the clamp pressure is not developed).
2.
Be sure to carefully prevent from getting injured by the moving knife
❺
, counter knife
❸
, blade
point of the hook, etc.
• Adjusting the clamp pressure
4) To adjust the clamp pressure, rstly loosen clamp spring setscrew
❻
. Adjust the lateral position of
clamp spring so that a clearance of 3.7 ± 0.1 mm is provided between clamp spring
❹
and counter knife
❸
. Then, adjust the longitudinal position of the clamp spring by tightening setscrew
❻
with the clamp
spring pressed against the stepped portion of the counter knife base.
Check to make sure that the clamp pressure is applied when moving knife
❺
moves to its back end.
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power off and ascertaining that the motor is at rest.

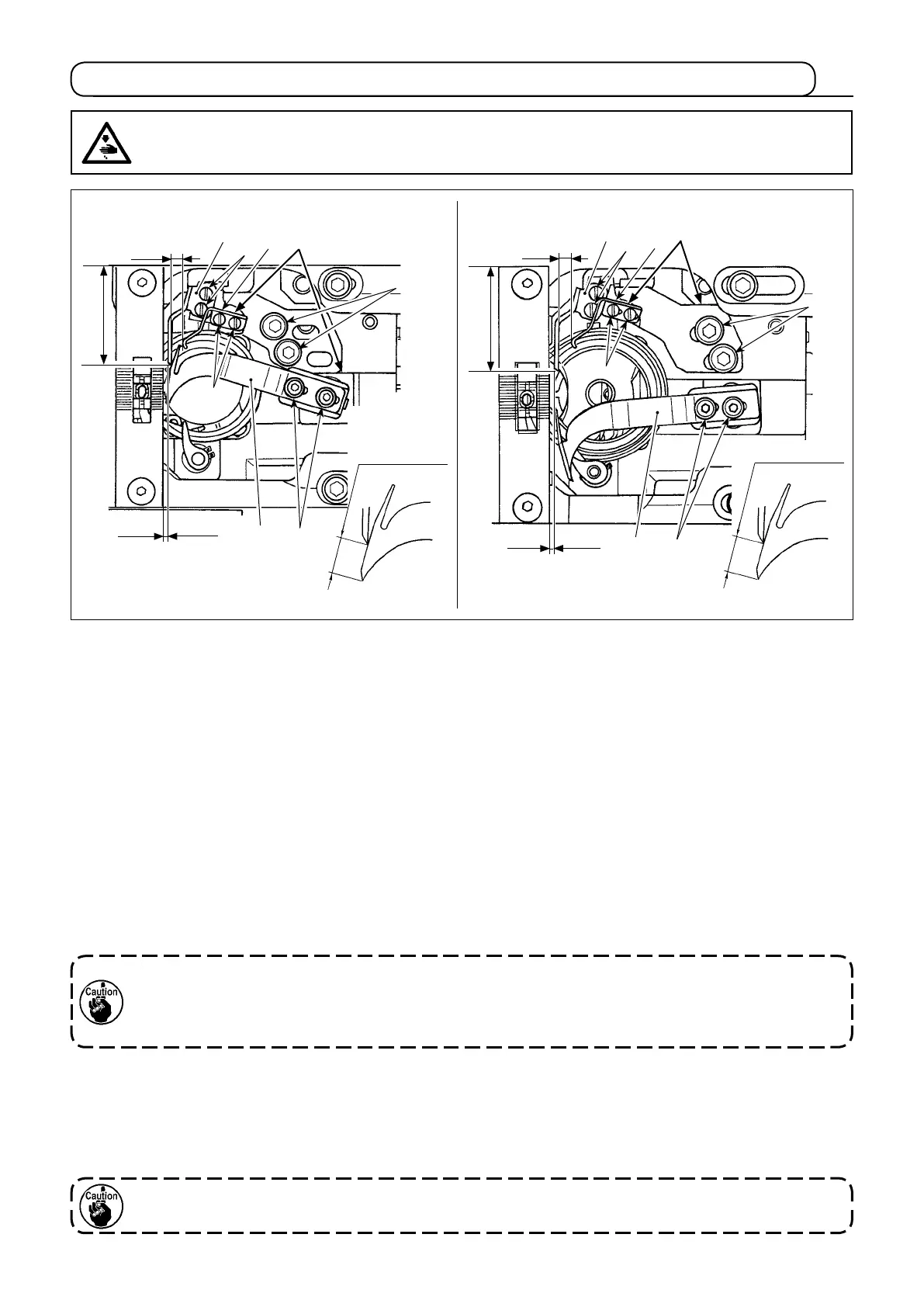

4-8. Adjusting the position of counter knife, knife pressure and clamp pressure
LU-2810-7, LU-2860-7 LU-2818-7, LU-2868-7
1.2 to 1.5 mm
3.7 ± 0.1 mm
Strike
❸
❹
❺
❶
❷
❻
37 ± 0.1 mm
❼
Strike
❶
1.2 to 1.5 mm
3.7 ± 0.1 mm
❺
❷
❻
34.5 ± 0.1 mm
❸
❹
❼
Knife pressure starts to be developed
8
to
9 mm
Knife pressure starts to be developed
LU-2810-7:
6 to 7 mm
LU-2860-7:
8 to 9 mm
