JUKI LU-2860V-7 User Manual

– 25 –
󰴦
Retrieval of the origin
Press
󱀄
to bring the origin retrieval needle bar to
its upper position.
* In the case "U090 Initial operation upper po-
sition stop function" is set to "1", the screen
shown on the left is not displayed, but the
needle bar automatically goes up to its up-
per position.

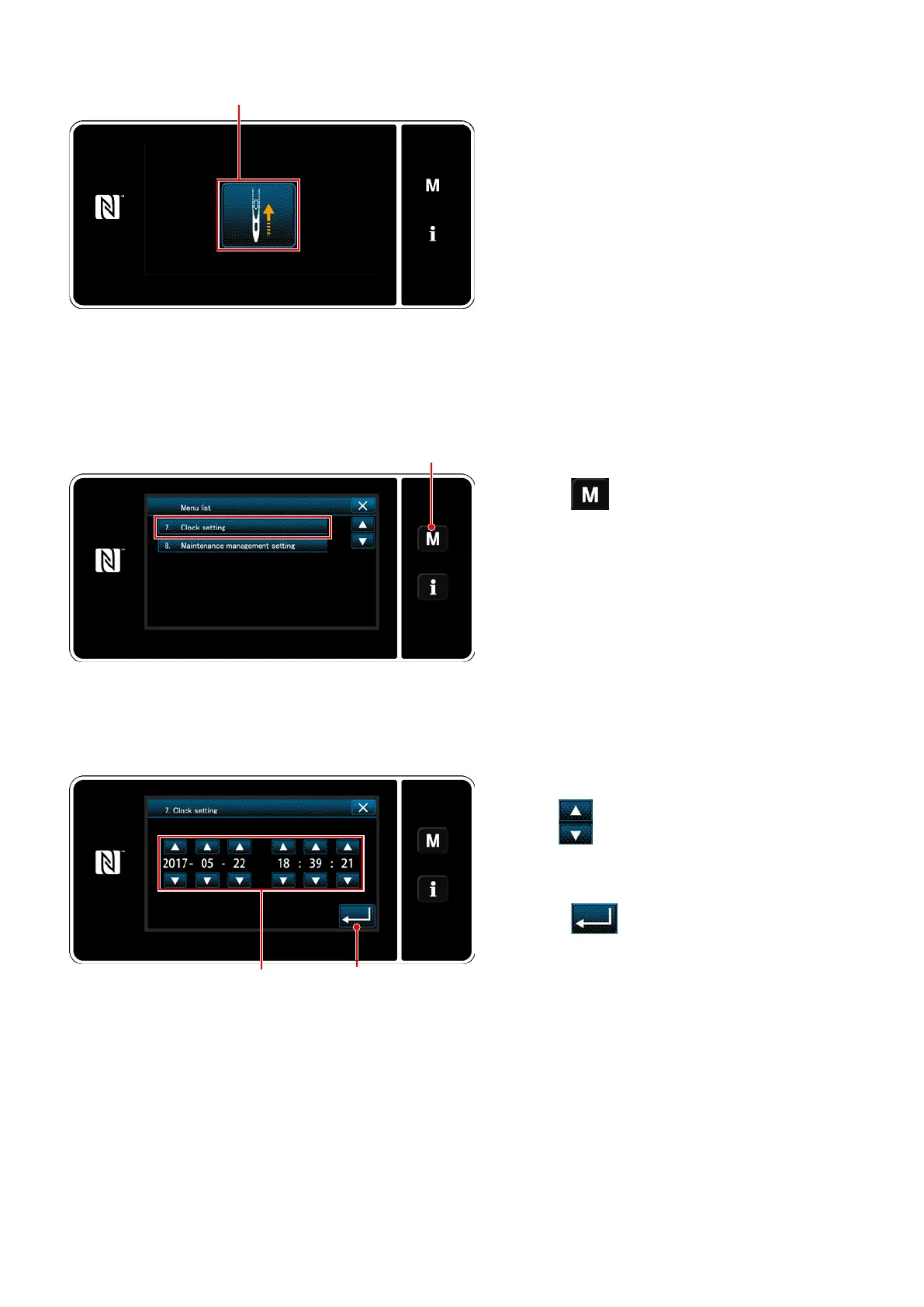

<Origin retrieval screen>
󰴧
Setting the clock
1) Press
󱀁
.
The "mode screen" is displayed.
2) Select the "7. Clock setting".
The "clock setting screen" is displayed.
<Mode screen>
3) Enter year/month/day/hour/minute/second
with
󱀂
.
The time entered is displayed in 24-hour no-
tation.
4) Press
󱀃
to conrm the clock setting.
Then, the current screen returns to the previ-
ous screen.
<Clock setting screen>
󱀁
󱀃󱀂
󱀄
