2-2. Installation of the sewing machine
25 mm
19 mm

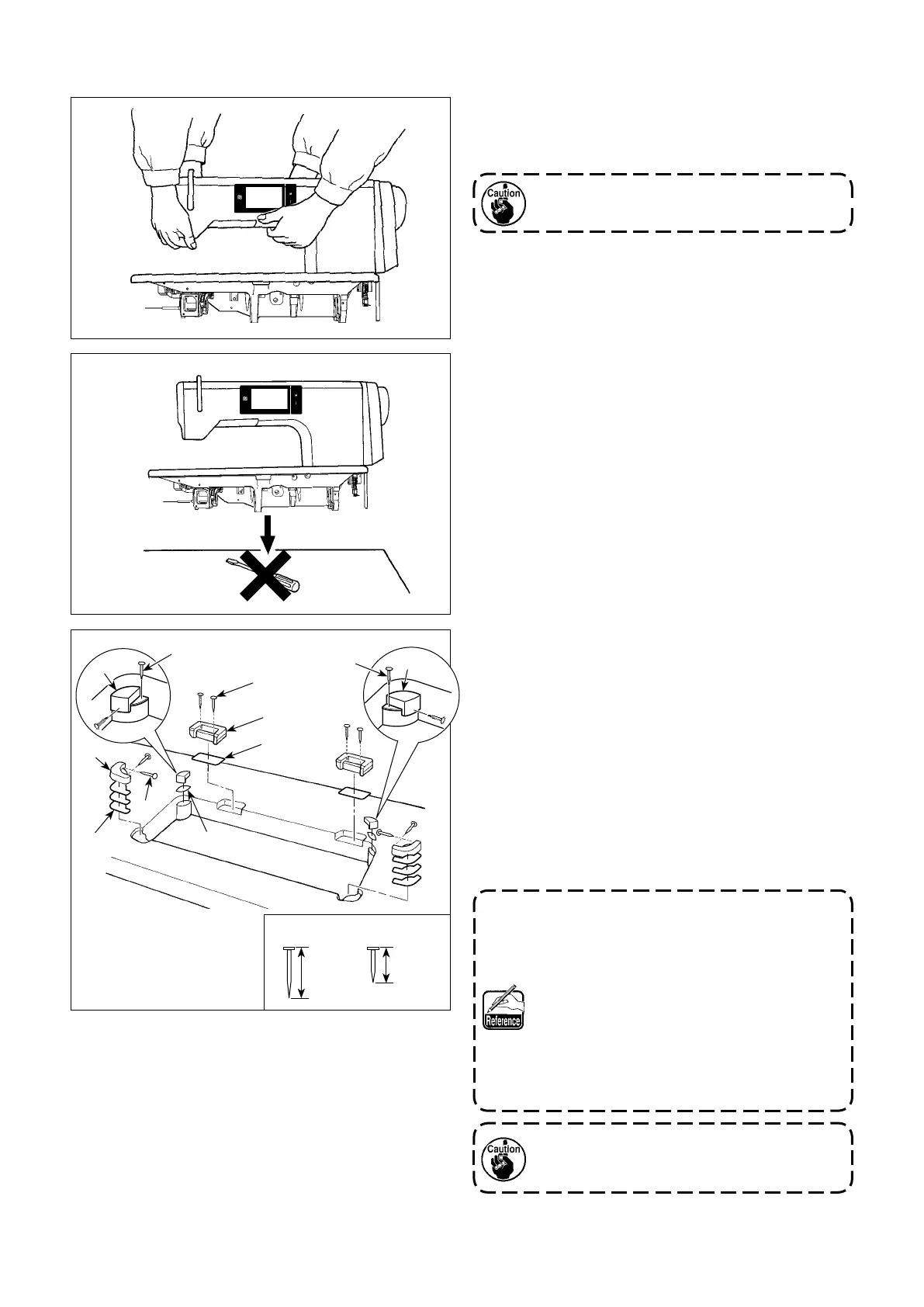

1) To prevent possible accidents caused by the full
of the sewing machine, perform the work by two
persons or more when the machine is moved.
2) Place the sewing machine on a horizontal and
plane place when placing it and do not place
any protruding thing such as a screwdriver or
the like.
Never hold the handwheel since it rotates.
3) Attaching the hinge seats and the support rub-
bers of the machine head
Fix accessory hinge seat
supplied with the
unit on the table with wood screw
while put-
ting seat plate
under the hinge seat as shown
in the gure on the left.
Fix machine head support rubbers
and
on
the table with nails while putting sheets
A
(stan-
dard: 3 pieces) and sheet
B
(standard: 1 piece)
under the machine head support rubbers.
Use nail
for sheet
B
and nail
for sheets
A
.
There are two different machine head support
rubbers
; i.e., the rubber for the right and that
for the left. Be sure to check the types of the
support rubbers before xing them.
Sheet A (eight pieces) and sheet B (four
pieces) are supplied with the machine as
accessories.
For the sheet A, three sheets are to be used
as standard for each mounting position. For
the sheet B, one sheet is to be used as stan-
dard. (The state shown in the left gure)
The sheets A and B are used for adjusting
the height of the top surface of the bed. Use
one more sheet to increase the height, or
use only one sheet to decrease it.
Sheet A
Sheet B
Be sure to use a short nail
for sheet B. If
long nail
is used, the nail tip can pene-
trate the table giving rise to a risk of injury.
To Next Page
