SSG 500 M Series Hardware Installation and Configuration Guide
10  Port and Power Connectors
Port and Power Connectors
This section displays and describes the location of the built-in ports, PIM slots, and
cable connectors.

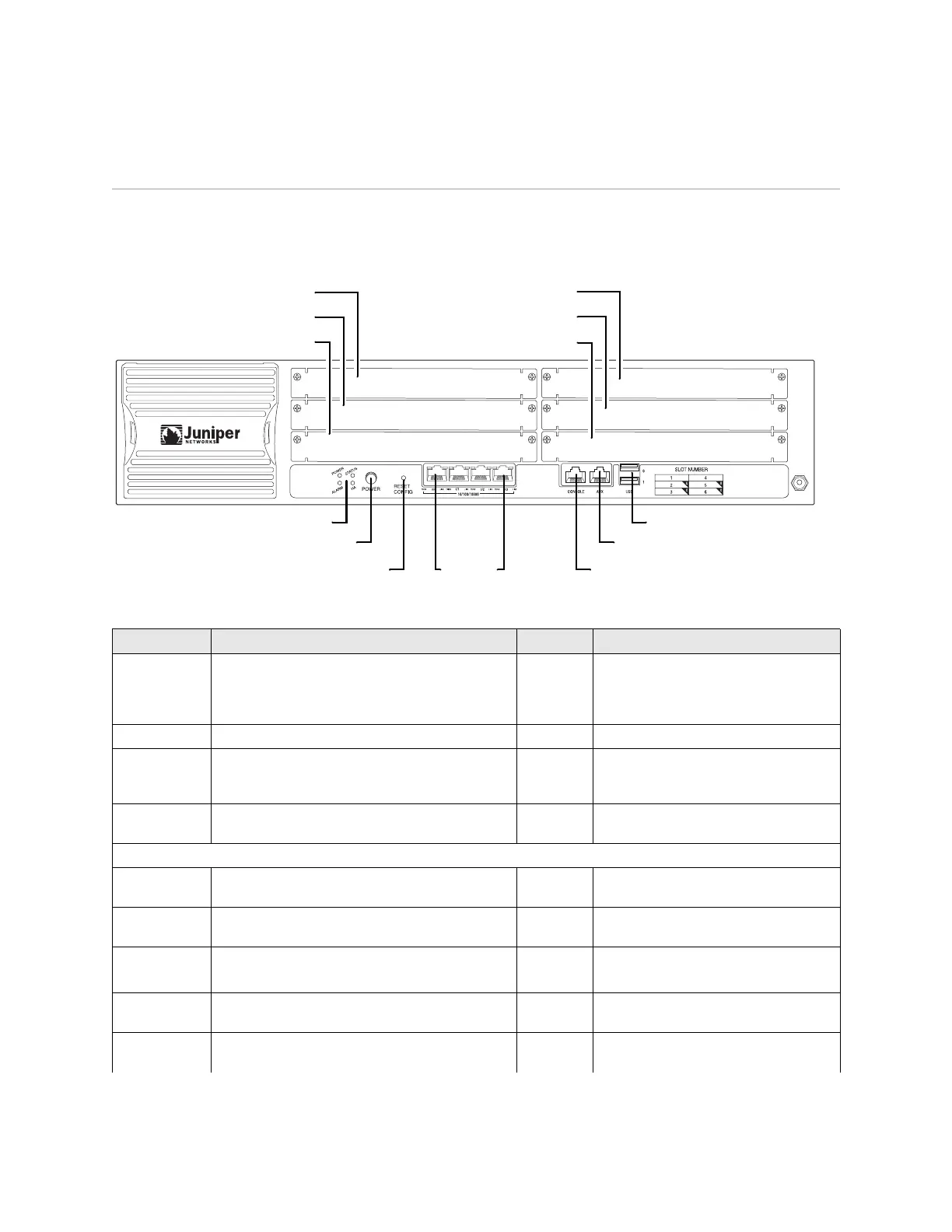

Figure 2: Built-in Ports and PIM Slot Locations
Table 1: SSG 500M Series Port and Cable Connector Descriptions
SSG
550M
Device status
LEDs
Power
button
Reset config
button
Console port
AUX port
USB ports
Slot 1
Slot 2
Slot 3
Slot 4
Slot 5
Slot 6
Ethernet
ports
Port Labels Description Connector Speed/Protocol
0/0-0/3 Enables direct connections to workstations or a LAN
connection through a switch or hub. This
connection also allows you to manage the device
through a Telnet session or the WebUI.
RJ-45 10/100 Mbps Ethernet
Autosensing duplex and auto MDI/MDIX
USB Functionality not supported in this release. N/A N/A
Console Enables a serial connection with the device. Used
for terminal-emulation connectivity to launch CLI
sessions.
RJ-45 9600 bps/RS-232C serial
AUX Enables a backup RS-232 async serial Internet
connection through an external modem.
RJ-45 9600 bps — 115 Kbps/RS-232C serial
PIMs
GB SFP Enables direct connections to workstations or a LAN
connection through a switch or hub.
LC 10/100/1000 Mbps
10/100/1000 Enables direct connections to workstations or a LAN
connection through a switch or hub.
RJ-45 10/100/1000 Mbps 1000Base-TX SFP
4x10/100 Enables direct connections to workstations or a LAN
connection through a switch or hub.
RJ-45 10/100 Mbps Ethernet
Autosensing duplex and auto MDI/MDIX
SYNC Serial Enables a connection from serial network media
types to the untrusted network.
DTE N/A
T1 Enables a connection from the T1 line to the
untrusted network.
RJ-45 1.544 Mbps (full-time slots)
