Front Panel 13

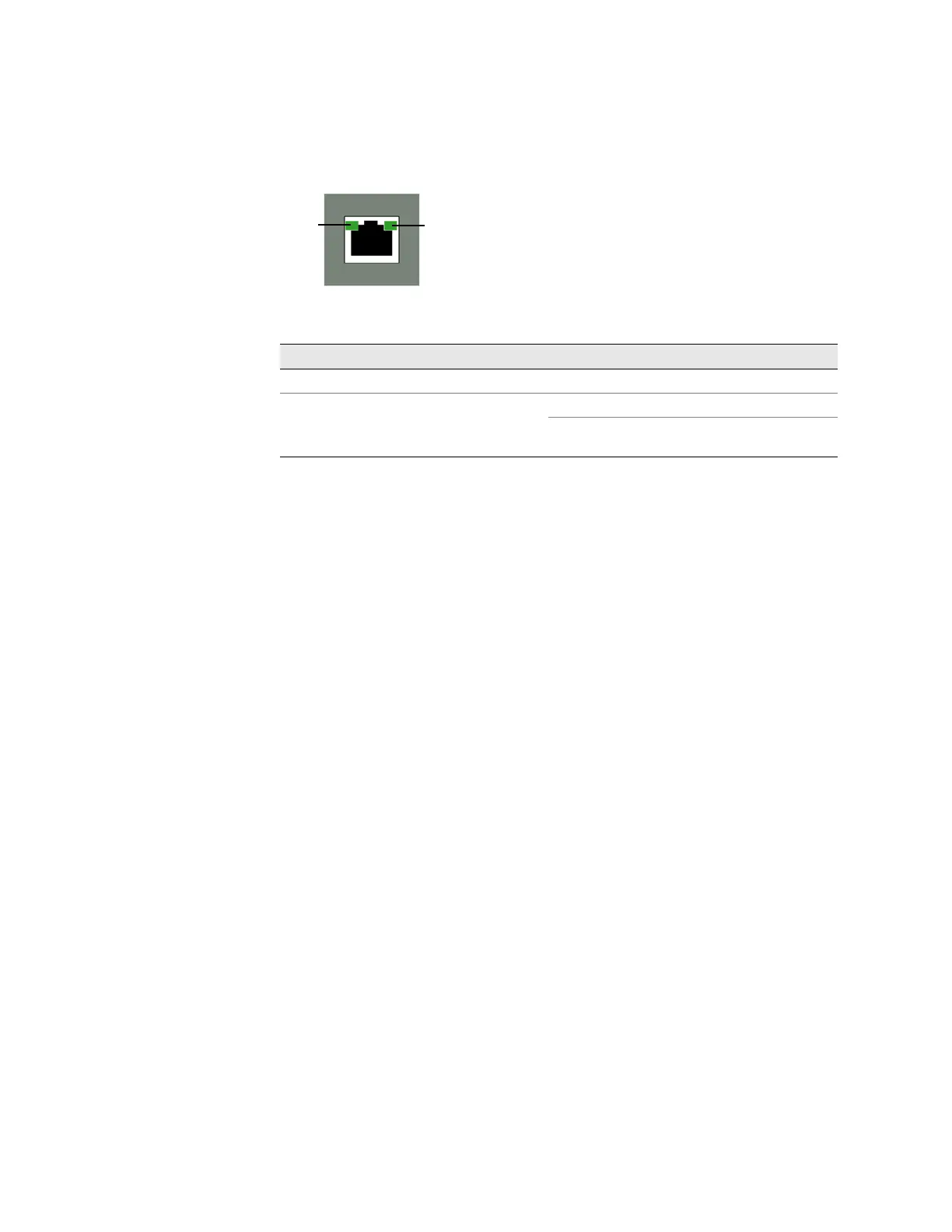

Figure 3: Activity Link LEDs
Table 3: LAN Port LEDs
Console Port
The console port is an RJ-45 serial data terminal equipment (DTE) port that can be
used for either local or remote administration. For local administration, connect the
port to a terminal with an RJ-45-to-DB-9 (female-to-male) straight-through serial
cable. For remote administration, connect the port to a workstation with an
RJ-45-to-DB-9 (female-to-male) serial cable with a null modem adapter.
See “Connectors” on page 64 for the RJ-45 connector pinouts.
AUX Port
The auxiliary (AUX) port is an RJ-45 serial port wired as a DTE that you can connect
to a modem to allow remote administration. We do not recommend using this port
for regular remote administration. The AUX port is typically assigned to be the
backup serial interface. The baud rate is adjustable from 9600 bps to 115200 bps
and requires hardware flow control.
See “Connectors” on page 64 for the RJ-45 connector pinouts.
Power Button
The power button is located on the left side of the front panel. You can use the
power button to power the device on and off. When you power on the device,
ScreenOS starts as the power supply completes its startup sequence.
Reset Config Button
The Reset Config button restarts the device and resets it to the default
configuration.
USB Ports
Universal serial bus (USB) ports are not supported in this release.
Name Function Color State Description
LINK Link Green On steadily Port is online
TX/RX Activity Green Blinking Port is receiving data
Off Port might be on, but it is not
receiving data
LINK
TX/RX
