Installing
Antennas
for
the
SSR130
Appliances
that
Support
LTE
To
install
the
antennas:
1.
Remove
the
dust
caps
from
the
SMA
connectors
from
the
SSR130
front
panel.
2.
Attach
the
antennas
to
the
SMA
connectors
and
tighten
them
firmly
by
hand.

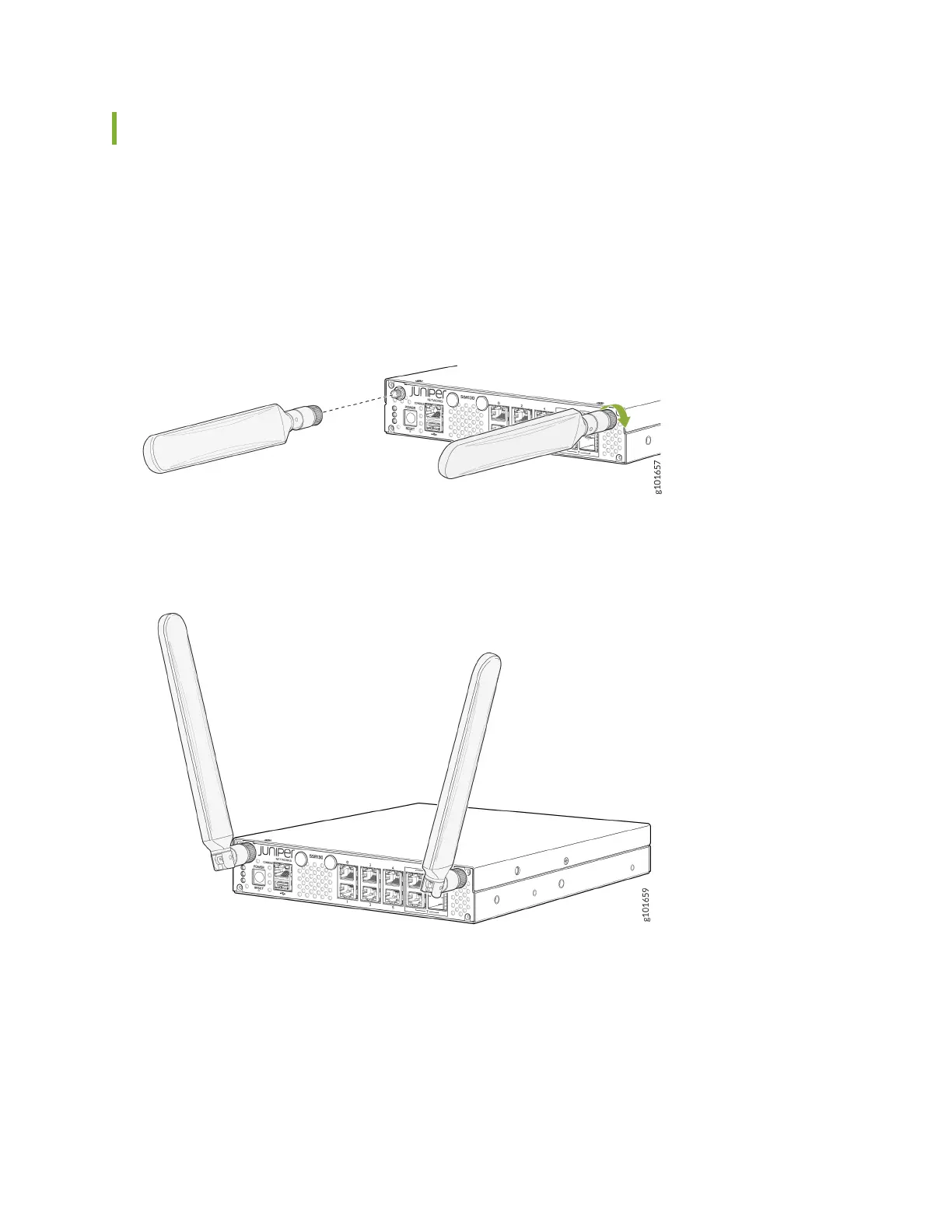

Figure
9:
Attaching
Antennas
to
SSR130
3.
Rotate
the
antennas
0-90
degree
in
the
vertical
direction.
