Chapter 5---Electronics
Model 250 Service Manual 5-59
!
YPbPr (Optional)
!
Quad Standard Decoder (Optional)
!
Quad Standard Decoder/Line Doubler (Optional)
The are three VICs slots on the Model 250, however the 4-Input RGBHV, and the
Quad Standard Decoder/Line Doubler require two slots.
Standard RGBHV VIC
RGBHV VIC - Main Functions
!
Interface for Red, Green, and Blue image inputs
!
Interface for Horizontal and Vertical synchronization pulses
!
IIC Serial Data Bus communication
!
LED indication of VIC selection

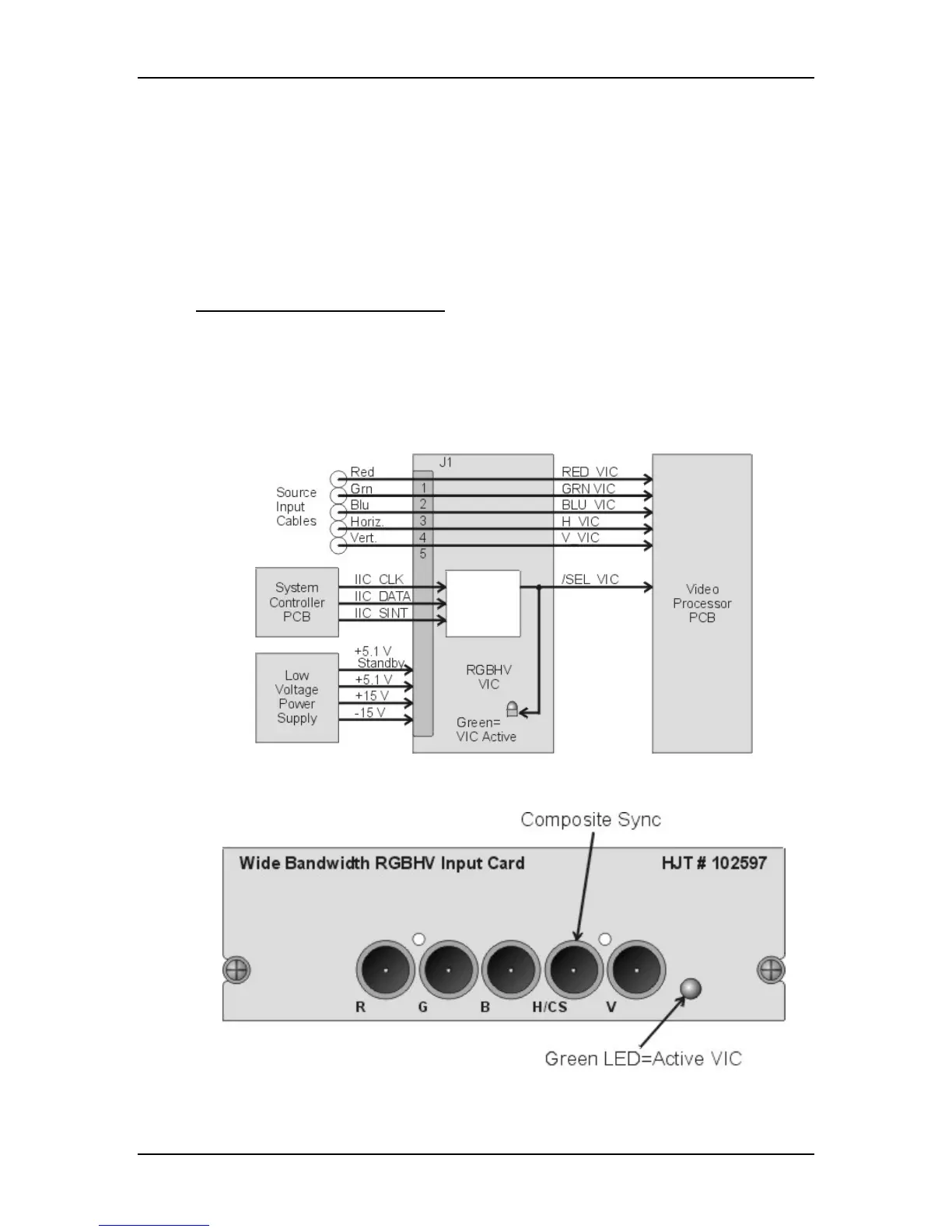

Figure 5-31
RGBHV VIC I/O Diagram.
Figure 5-32
RGBHV VIC faceplate.
