Chapter 5---Electronics
5-64 Model 250 Service Manual
4-Input (Quad) RGBHV VIC
4-Input (Quad) RGBHV VIC - Main Functions
!
Interface for four sets of Red, Green, and Blue image inputs
!
Interface for four sets of Horizontal and Vertical synchronization pulses
!
VIC selection by IIC Serial Data Bus
!
LED indication of VIC selection

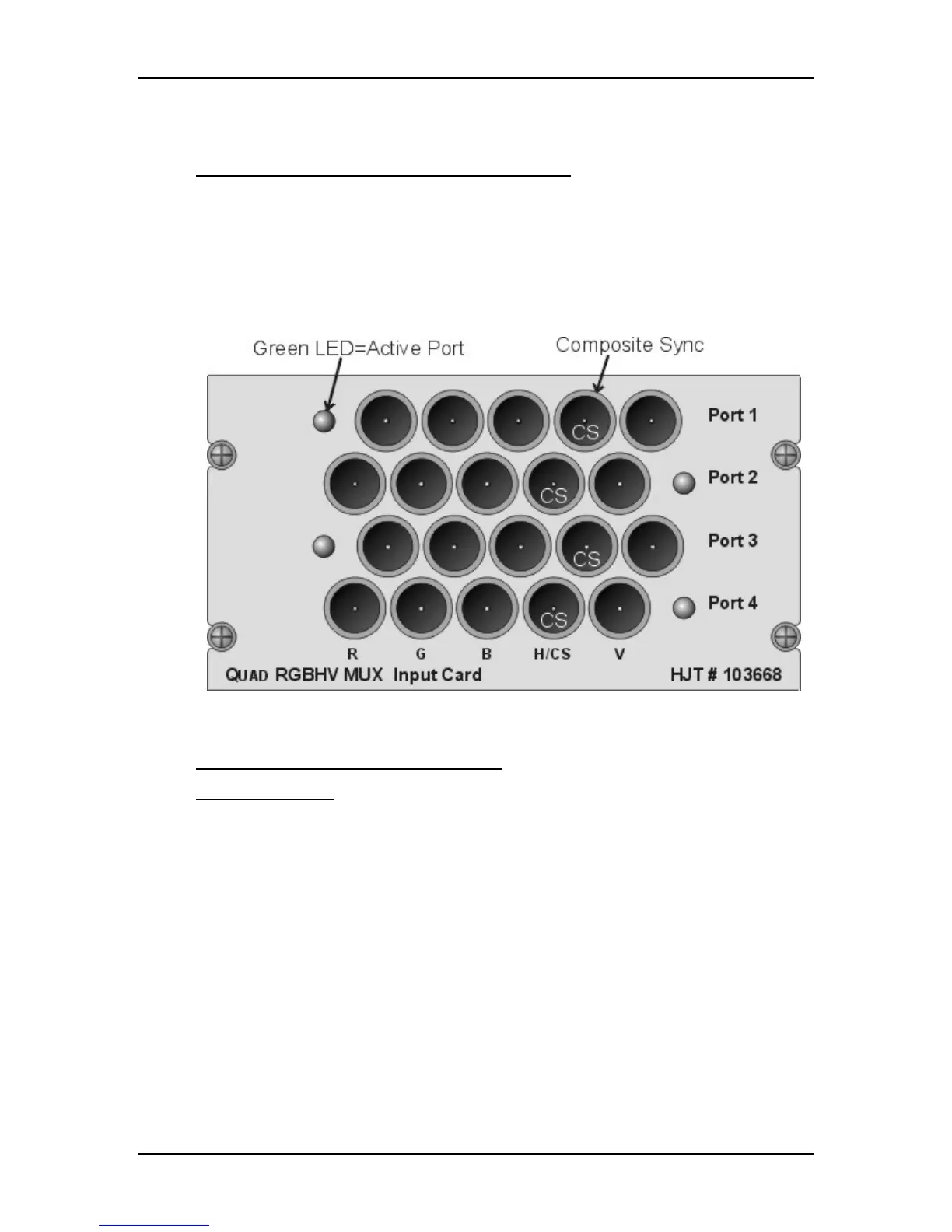

Figure 5-35
4-Input (Quad) RGBHV VIC faceplate (two VIC slots ).
4-Input (Quad) RGBHV VIC - Inputs
Four sets of inputs
R - red image from source input (0.7-1.0 Vpp).
G - green image from source input (0.7-1.0 Vpp).
B - blue image from source input (0.7-1.0 Vpp).
H - horizontal sync from source input
V - vertical sync from source input
+15 V - power for analog circuitry
-15 V - power for analog circuitry
+5.1 V - power for digital circuitry
+5.1 V Stdby
