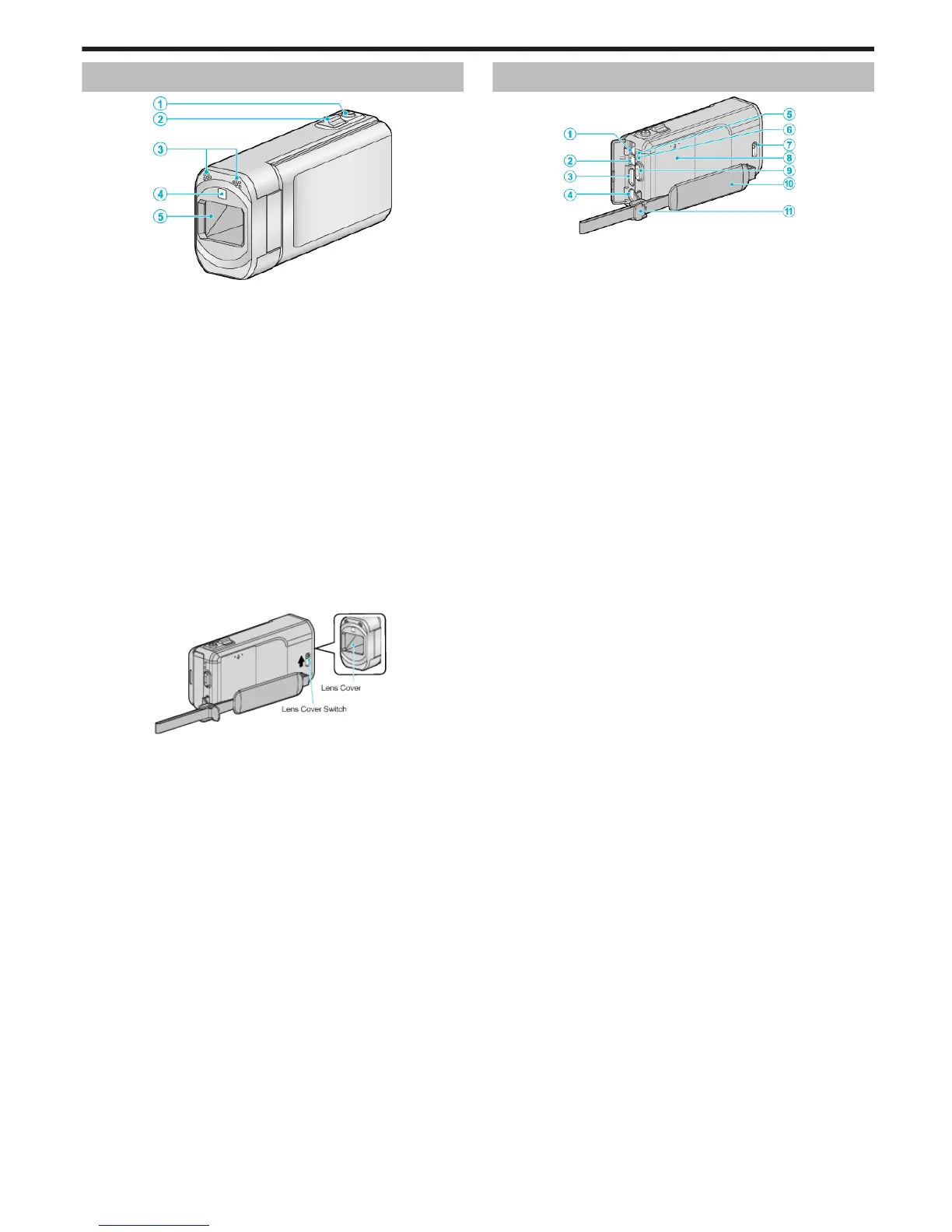

Front
.
1
SNAPSHOT (Still Image Recording) Button
0
Takes a still image.
2
Zoom/Volume Lever
0
During shooting: Adjusts the shooting range.
0
During playback (index screen): Moves to the next or previous page.
0
During video playback: Adjusts the volume.
3
Stereo Microphone
0
Do not cover the microphone with your fingers during video recording.
4
Light (photo light)
0
Turn on the light when shooting in dark places.
“ LIGHT ” (A p. 176)
5
Lens/Lens Cover
0
Do not touch the lens and lens cover.
0
Do not cover the lens with your fingers during recording.
0
When the power is turned on, the lens cover opens automatically.
After using, slide the lens cover switch to close the lens cover.
(The lens cover does not close automatically.)
.
Rear
.
1
DC Connector
0
Connects to an AC adapter to charge the battery.
2
AV Connector
0
Connects to the AV connector of a TV, etc.
3
HDMI Mini Connector
0
Connects to TV using an HDMI mini cable.
4
USB Connector
0
Connects to computer using a USB cable.
5
ACCESS (Access) Lamp
0
Lights up/blinks during recording or playback.
Do not remove the battery pack, AC adapter, or SD card.
6
POWER/CHARGE (Power/Charge) Lamp
0
Lights up: Power "ON"
0
Blinks: Charging in progress
0
Goes out: Charging finished
7
Lens Cover Switch
0
Opens and closes the lens cover.
8
Battery Cover
“Charging the Battery Pack” (A p. 66)
9
START/STOP (Video Recording) Button
0
Starts/stops video recording.
10
Grip Belt
0
Pass your hand through the grip belt to hold this unit firmly.
“Grip Adjustment” (A p. 67)
11
Strap Lock
Names of Parts
207
