Digital Video Cassette T
echnology
24
Software Version Number
Obtain the software’s version number as follows:
1.
Select
About
from the
Help
menu.

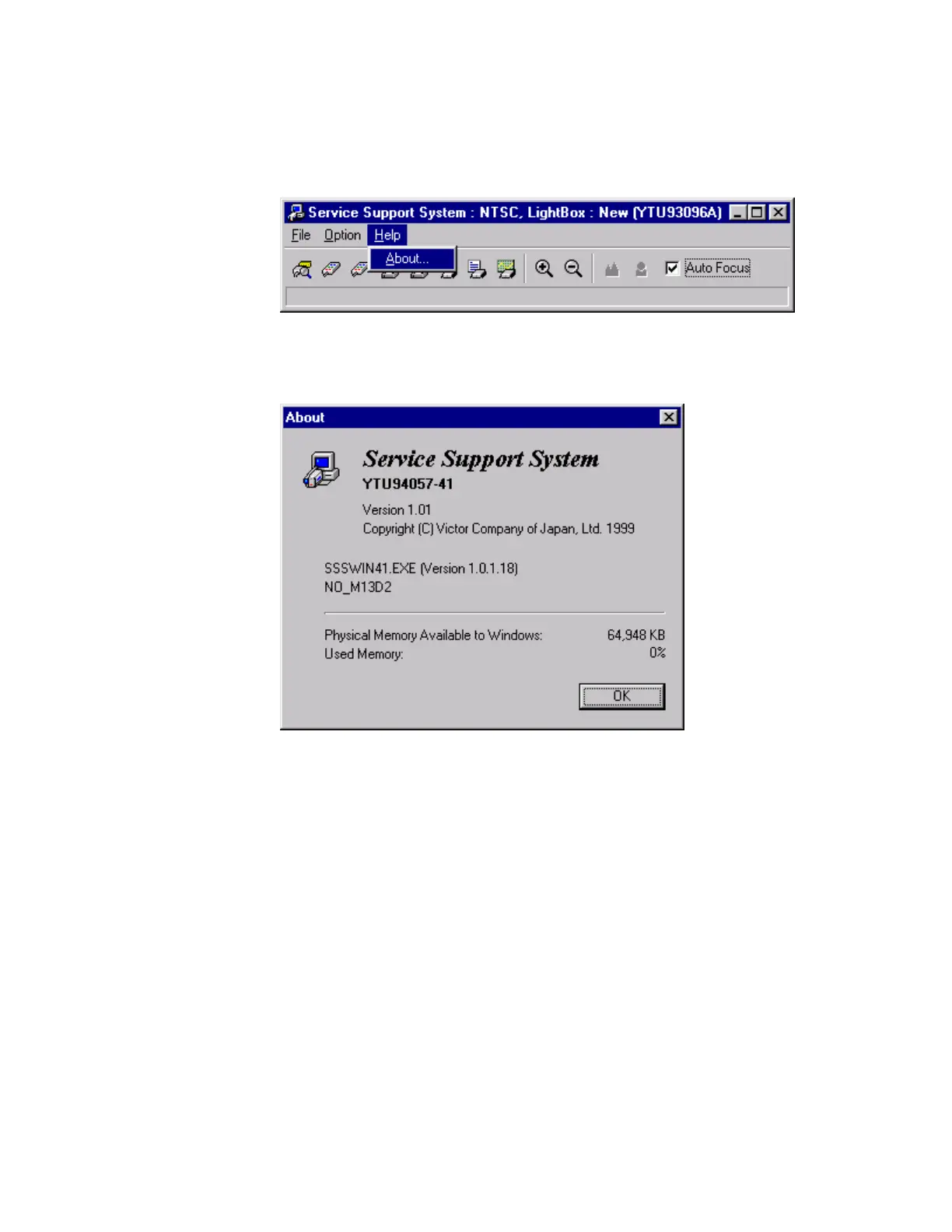

Figure 33
Help About Menu
2.
The
About
window displays the software’s version number.
Figure 34
About Service Support System Window
3.
Click the
OK
button to close the
About
window.
29
31
Table of Contents
Table of Contents
5
Introduction
7
Required Tools
8
Table 1 Required Tools
8
Table 2 Model Specific Tools
9
Table 3 Special Tools
9
Table 4 Required Accessories
9
Table 5 Required Filters
9
Table 6 Personal Computer Specifications
9
Figure 1 Setup Application
10
Software Installation
10
Camera Connection
10
Figure 2 GR-DVF11U Computer Connection
11
Figure 3 GR-DVM50U Computer Connection
11
Figure 4 Serial Port Configuration
12
Figure 5 Camera Configuration
12
Figure 6 Title Bar
12
Figure 7 Inspector Window
13
Figure 8 Tooltips
14
Figure 9 Deck Controller Button
15
Control Functions
15
Software Functions
15
Figure 10 Deck Controller Window
16
Figure 11 ATF Editing Window
16
Figure 12 Deck Controller Window in FA Camera Mode
17
Figure 13 Camera Controller Menu
17
Figure 14 Camera Controller Window
18
Figure 15 DSP Controller Menu
20
Figure 16 DSP Controller Window
20
Figure 17 VTR Automatic Running Utility Toolbar Button
21
Figure 18 Deck Mode Confirmation Window
21
Figure 19 VTR Automatic Running Utility Window
22
Figure 20 Timer Setting Window
22
Figure 21 Running Utility Stopped
23
Figure 22 Running Utility Running
24
Figure 23 Information Window
24
Figure 24 VTR Automatic Running Utility Window
25
Figure 25 Timer Setting Window
25
Figure 26 VTR Automatic Running Utility Window
26
Figure 27 Save as Window
27
Figure 28 VTR Automatic Running Utility
27
Figure 29 Open Window
28
Figure 30 Confirmation Window
28
Figure 32 CPU Version Window
29
Figure 31 Option about CPU Menu
29
Information Functions
29
Figure 33 Help about Menu
30
Figure 34 about Service Support System Window
30
Figure 35 Emergency Utility Toolbar Button
31
Figure 36 Emergency Utility Window
31
Figure 37 Read Toolbar Button
31
Figure 38 Emergency Utility Window
32
Figure 39 Save Toolbar Button
32
Figure 40 Save as Window
32
Figure 43 Open Toolbar Button
33
Figure 42 Confirmation Window
33
Figure 41 Erase Toolbar Button
33
Figure 45 Print Toolbar Button
34
Figure 46 Copy Toolbar Button
34
Figure 44 Open Window
34
Figure 47 EEPROM Utility Toolbar Button
35
Figure 48 Main EEPROM Utility Window
35
Figure 49 Read Toolbar Button
36
Figure 50 EEPROM Utility Window
36
Figure 51 Save Toolbar Button
36
Figure 52 Save as Window
37
Figure 53 EEPROM Utility Window
37
Figure 56 Open Toolbar Button
38
Figure 54 Edit Toolbar Button
38
Figure 55 Editing Window
38
Figure 57 Open Window
39
Figure 58 Write Toolbar Button
39
Figure 59 Confirmation Window
39
Figure 60 Comparison Toolbar Button
40
Figure 61 Information Window
40
Figure 62 EEPROM Utility Window
40
Figure 63 Cancel Toolbar Button
41
Figure 64 Load Doctor Data Toolbar Button
41
Figure 65 Open Window
41
Figure 69 Confirmation Window
42
Figure 67 Write Toolbar Button
42
Figure 68 Confirmation Window
42
Figure 66 Information Window
42
Figure 70 Inspector Toolbar Button
43
Figure 71 Inspector Window
43
Figure 72 Dump Selection
44
Figure 73 Camera Image
45
Figure 74 Error Rate Window
46
Table 7 Error Rate Window Data Definitions
47
Figure 75 Z Track Window
48
Figure 78 Information Window
49
Figure 76 Option Set Clock Menu
49
Figure 77 Confirmation Window
49
Adjustment Functions
49
Figure 79 Adjustment Utility Toolbar Button
50
Figure 80 Adjustment Utility Window
50
Figure 81 Installing the Focus Chart
52
Figure 82 Zoom Sensor Adjustment
53
Figure 83 Confirmation Window
53
Figure 84 Best Focusing Window
54
Figure 85 Information Window
54
Figure 86 Information Window
54
Figure 87 Infinity Sensor Adjustment
55
Figure 88 FC Correction Adjustment
56
Figure 89 Zoom Linearity Adjustment
57
Figure 90 Remove the Focus Chart
59
Figure 91 Light Box Setup
60
Figure 92 IR Sensor Adjustment
62
Figure 93 Confirmation Window
62
Figure 94 Information Window
63
Figure 95 Hall Gain Offset Adjustment
64
Figure 96 High Light Cyan Adjustment
65
Figure 97 y Gain Adjustment
66
Figure 98 Editing Window
66
Figure 99 y Gain Amplitude
67
Figure 100 AGC Adjustment
68
Figure 101 AGC Amplitude
68
Figure 102 AE Hall Curve Adjustment
70
Figure 103 AF Filter
71
Figure 104 Confirmation Window
71
Figure 105 Color Separation Adjustment
72
Figure 106 White Balance Adjustment
73
Figure 107 Information Window
73
Figure 108 Difference Color Gain / Matrix Adjustment
74
Figure 109 Editing Window
74
Figure 110 Set the Amplitude of the White Bar
75
Figure 111 Difference Color Gain / Matrix Adjustment (1)
76
Figure 112 Difference Color Gain / Matrix Adjustment (2)
77
Figure 113 GR-DVF11U Adjustment Preparation
79
Table 8 Jig Connector YTU93082C Pin-Out
79
Figure 114 GR-DVM50U Adjustment Preparation
80
Figure 115 81Mhz VCO Center Frequency
81
Figure 116 Deck Controller Window
81
Figure 117 Confirmation Window
82
Figure 118 Editing Window
82
Figure 119 Information Window
82
Figure 120 PB Switching Point Adjustment
83
Figure 121 Sync Level Adjustment
84
Figure 122 Set the Sync Level
84
Figure 123 Burst Level Adjustment
86
Figure 124 Set the Burst Level
86
Figure 125 Fs PLL Adjustment
88
Figure 126 Editing Window
88
Figure 127 Head Record Current Adjustment
90
Figure 128 Set the Head Record Current
91
Figure 129 Deck Controller Window
92
Figure 130 VCO Center Frequency (ME Tape SP Speed)
94
Figure 131 Adjustment Utility Window Status Bar
94
Figure 132 Inspector Window
95
Figure 133 VCO Center Frequency (ME Tape LP Speed)
96
Data Dump Definition
98
Standard Dump
98
Table 9 Data Dump - Standard Mode
98
Table 10 Data Dump - Electronic Zoom Operation
99
Table 11 Data Dump - Focus Control
99
Table 12 Data Dump - Iris Control
99
Table 13 Data Dump - White Balance
99
Table 14 Data Dump - Camera Shake Detection
99
Table 18 Data Dump - Shutter Speed
100
Table 17 Data Dump - White Balance Operation
100
Table 16 Data Dump - AE Operation
100
Table 15 Data Dump -Focus Operation
100
Table 19 Data Dump - Standard Mode
101
Table 20 Data Dump - CPU Initialization
101
Table 21 Data Dump - Focus Error Data
101
Table 22 Data Dump - Special Effects Setting - Low Byte
102
Table 23 Data Dump - Special Effects Setting - High Byte
102
Deck Dump
103
Table 24 Data Dump - Deck Mode
103
Table 25 Data Dump - VTR Mode
104
Table 26 Data Dump - Mechanism Position
104
Table 30 Data Dump - Sensor (4)
105
Table 27 Data Dump - Sensor (1)
105
Table 29 Data Dump - Sensor (3)
105
Table 28 Data Dump - Sensor (2)
105
Table 31 Data Dump - Switch (1)
106
Table 32 Data Dump - Switch (2)
106
Table 33 Data Dump - Strobe Information
106
Table 34 Data Dump - Fading Information
106
Table 35 Data Dump - Error Information
106
Table 36 Data Dump - Other Information (1)
107
Table 37 Data Dump - Other Information (2)
107
Table 38 Data Dump - System Mode
107
Table of Figures
108
Other manuals for JVC GR-DVF21U
