Digital Video Cassette Technology
34
1. To compare settings, read the settings data from the camera into the
EEPROM Utility window as demonstrated earlier. Click the Comparison
button on the EEPROM Utility toolbar.

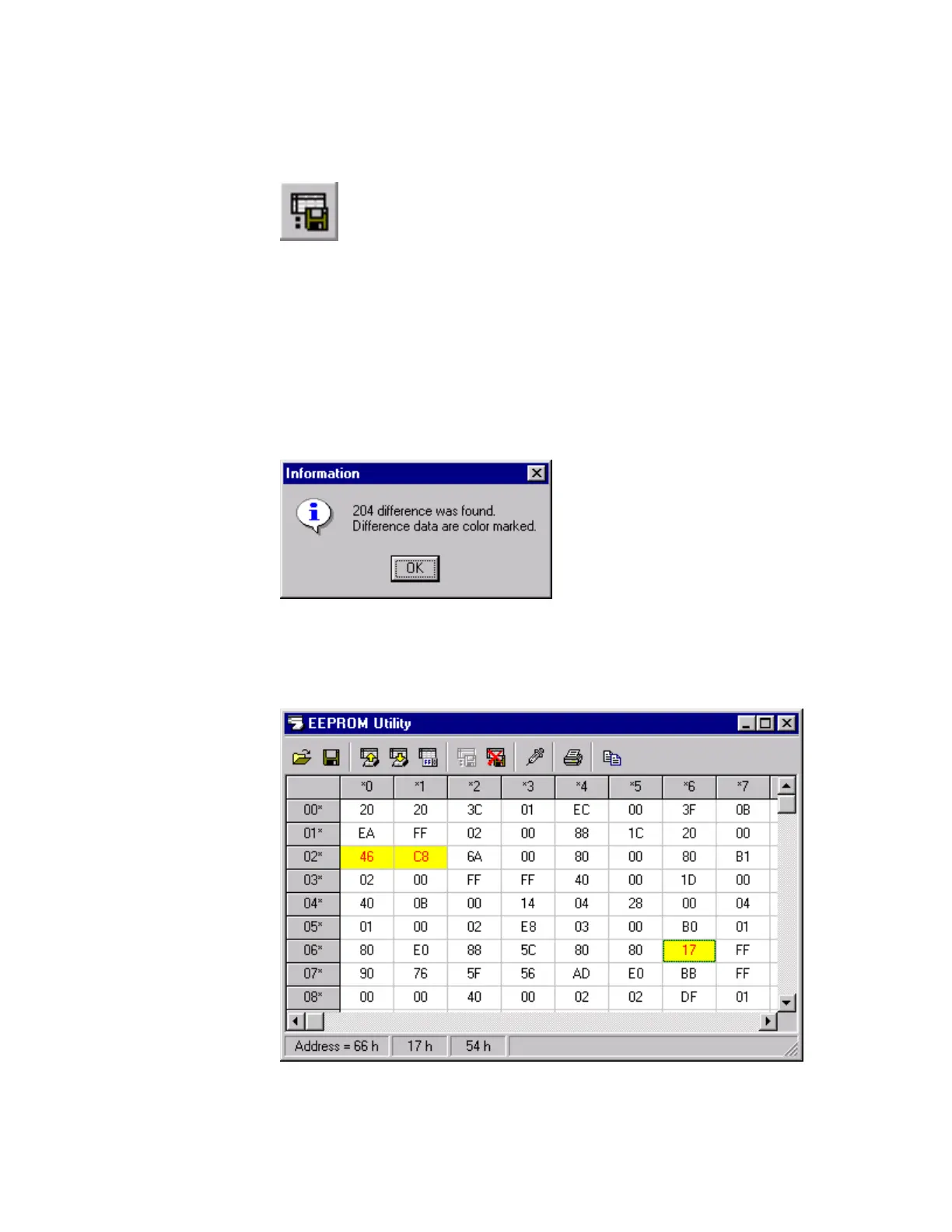

Figure 60 Comparison Toolbar Button
2. The Open window appears. Choose the file that is appropriate for your
camera. You may find the name of the appropriate file by clicking the Help
button and reading the help file that is included with the Service Support
System software.
3. After you have opened the default settings file the Information window
appears. This window displays the number of differences between your
camera and the file. Click the OK button in the Information window.
Figure 61 Information Window
4.
The differences between the camera’s data and the file’s data are highlighted
in the EEPROM Utility window.
Figure 62 EEPROM Utility Window
