Digital Video Cassette Technology
74
GR-DVM50U, GR-DVM70U

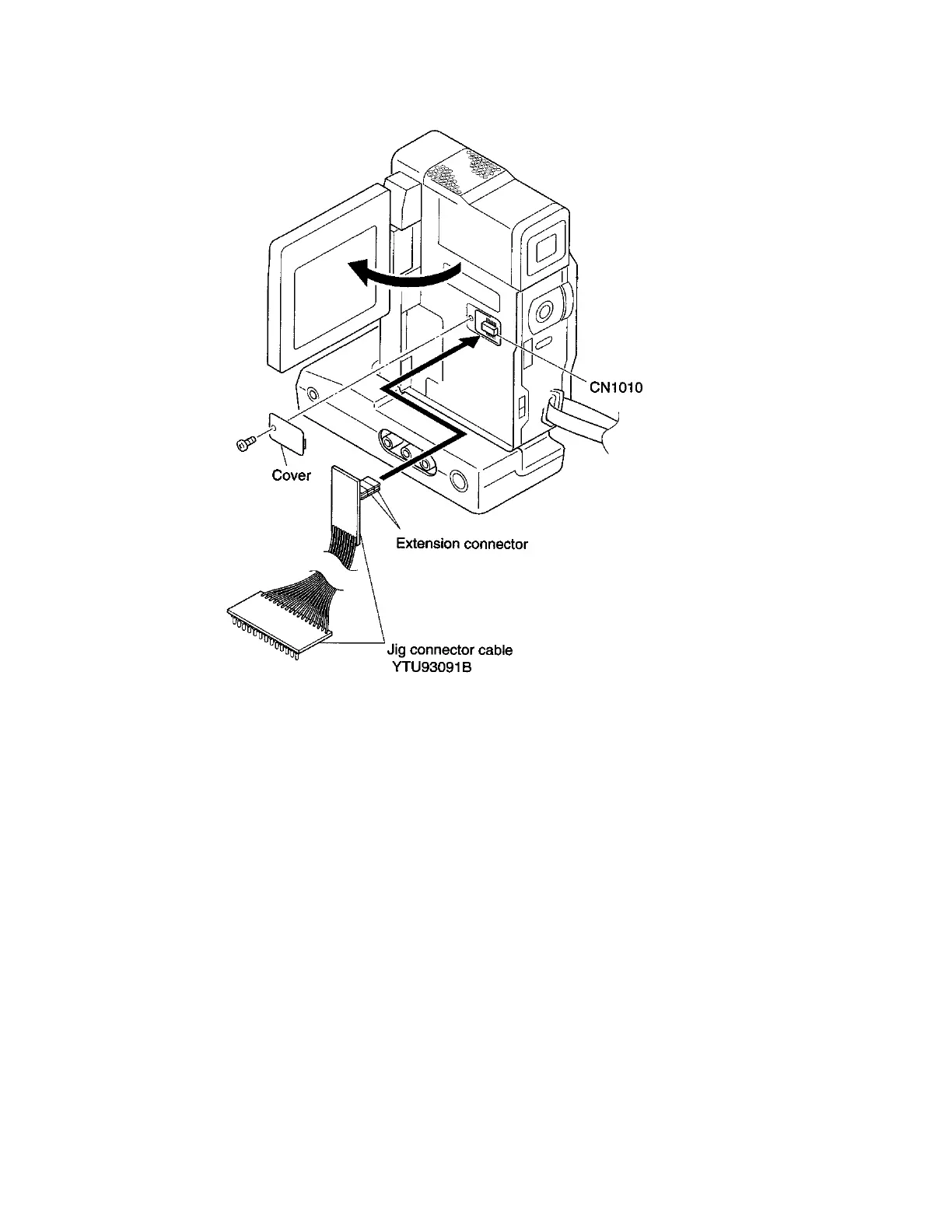

Figure 114 GR-DVM50U Adjustment Preparation
Adjustment preparation:
1. Mount the unit on its Docking Station.
2. Remove the screw.
3. Remove the Jig Cover.
4. Attach two Extension Connectors, P/N YTU94145A, to the Jig Connector,
P/N YTU93091B. Then connect them to CN1010 on the board.
YTU94145A
