Installation and ConnectionInstallation and Connection

Installation procedure

1 Remove the key from the ignition and

disconnect the

· battery.

2 Make the proper input and output wire

connections for each unit.

3 Connect the speaker wires of the wiring

harness.

4 Take Connector B on the wiring harness

and connect it to the speaker connector in

your vehicle.

5 Take Connector A on the wiring harness

and connect it to the external power

connector in your vehicle.

6 Connect the wiring harness to the unit.

7 Install the unit in your car.

Make sure that the unit is installed securely in place.

If the unit is unstable, it may malfunction (e.g., the

sound may skip).

8 Reconnect the · battery.

9 Initialise the unit (page44).

10 Configure <Initial Settings> (page4).

Parts list for installation

Note: This parts list does not include all the package

contents.

¥ Wiring harness (× 1)

ø Extension wire, 2 m (× 1)

π Microphone, 3 m (× 1)

[ Trim plate (× 1)

“ Mounting sleeve (× 1)

] Extraction keys (× 2)

‘ GPS aerial, 3.5 m (× 1)

\ Metal plate (× 1)

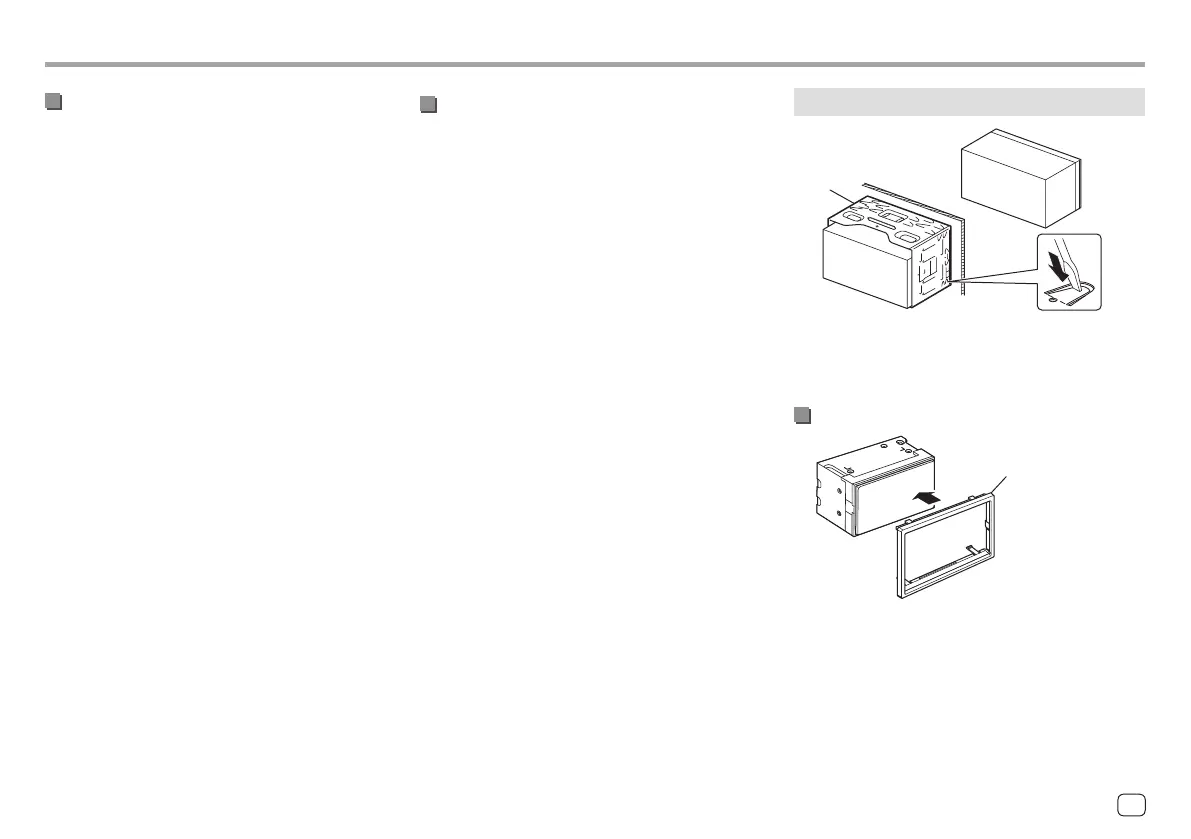

Installing the unit

“

Bend the tabs of the mounting sleeve with a

screwdriver or similar utensil and attach it in place.

Installing the trim plate

[

49ENGLISH

00KWM785DBWEN.indb4900KWM785DBWEN.indb49 2022/10/1715:112022/10/1715:11

Questions and Answers:

Need help?

Do you have a question about the JVC KW-M785DBW and is the answer not in the manual?

JVC KW-M785DBW Specifications

General

Dimmer	Yes
DIN size	2 DIN
Impedance	8 Ω
Output power	200 W
Product color	Black
Frequency range	20 - 88000 Hz
Disc types supported	No
Audio output channels	- channels
Equalizer bands quantity	8
Maximum power per channel	50 W
Analog signal format system	NTSC, PAL
Signal-to-Noise Ratio (SNR)	98.5 dB
Display type	LCD
Display diagonal	6.8 \
Touchscreen type	Capacitive
Display resolution	800 x 480 pixels
Illumination color	Blue, Green, Red
AM band range	531 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	DAB+
Preset stations quantity	20
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi frequency	2.4 GHz
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Line outputs (RCA)	1
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Video formats supported	H.264, MKV, MPEG1, MPEG2, MPEG4, WMV
Hands-free calling	Keep your hands on wheel with Bluetooth™ Hands-free calling. After pairing your compatible Bluetooth mobile phone to your TomTom GPS, you’ll be able to see incoming call information, make and answer calls, and talk hands-free through your device. You’ll e
Built-in processor	-
