KEEWAY ARN150 User Manual

25

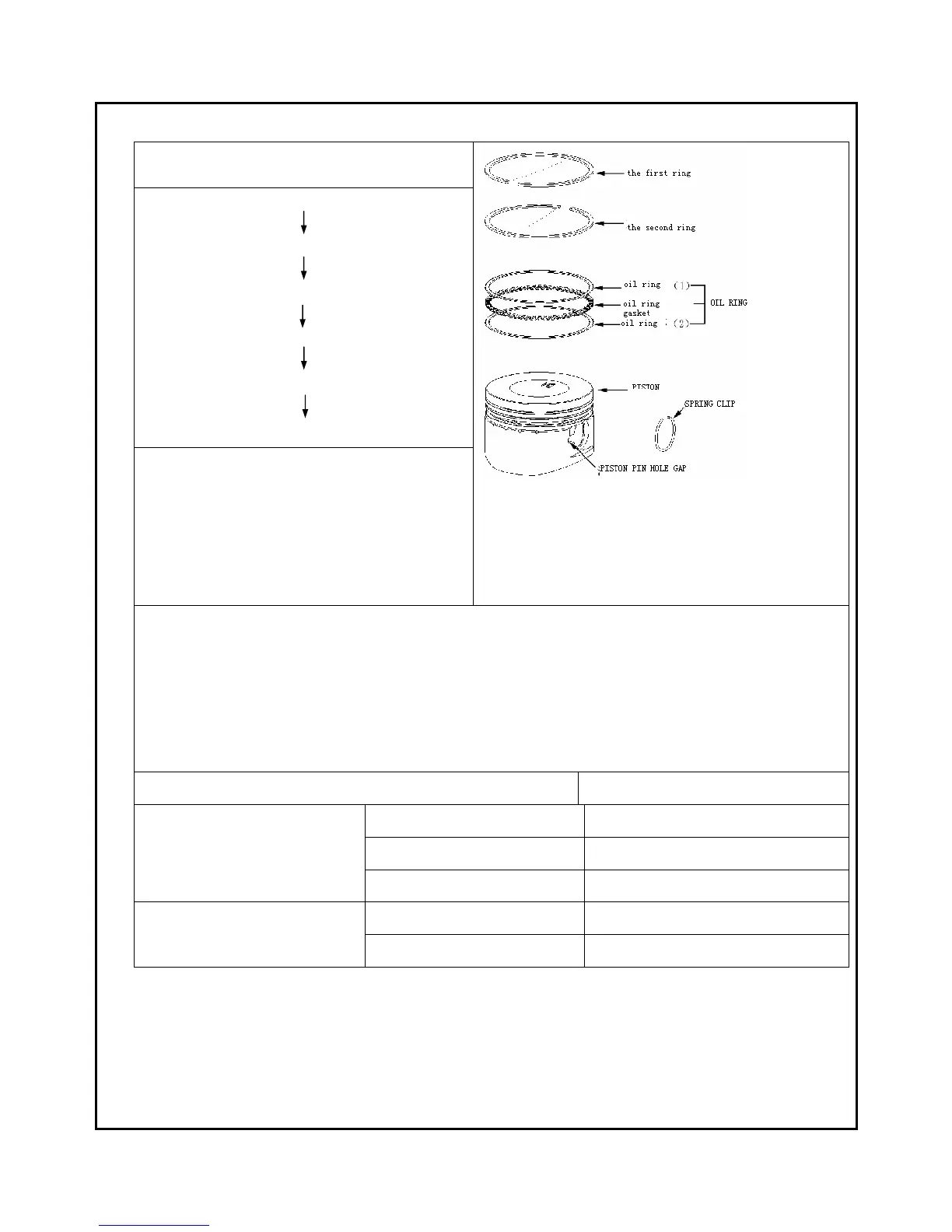

d . P I S T O N I N S TA L L AT I O N
REMOVAL:
The first ring
The second ring
Oil ring slice（一）
Oil ring slice（二）
Oil ring bush
Piston
Installation：
：：
：
The installation sequence is essentially the
reverse of removal.
Notice：
：：
：
1、 The first ring is white ring, and the second ring is black one.
2、 The sides of the first ring and the second one with English Letters are up.
3、 Never make mistake in positioning the first ring and the second ring
4、 Letter “IN” is towards inlet port, and the first ring is dead against oil ring slice (一).
5、 The gap of spring clip is 80º-100º against the gap of groove.
ITEMS VOLUME
The first ring 0.1~0.2mm
The second ring 0.1~0.2mm
Hatch clearance during working
Oil ring slice 0.3~0.4mm
The first ring 0.013~0.045mm
Clearance between piston ring
and groove
The second ring 0.013~0.045mm
