KEEWAY ARN150 User Manual

57
g.
g.g.
g. Disc brake system
Disc brake system Disc brake system
Disc brake system
Liquid pressure brake
Liquid pressure brakeLiquid pressure brake
Liquid pressure brake（
（（
（disc
discdisc
disc）
））
）

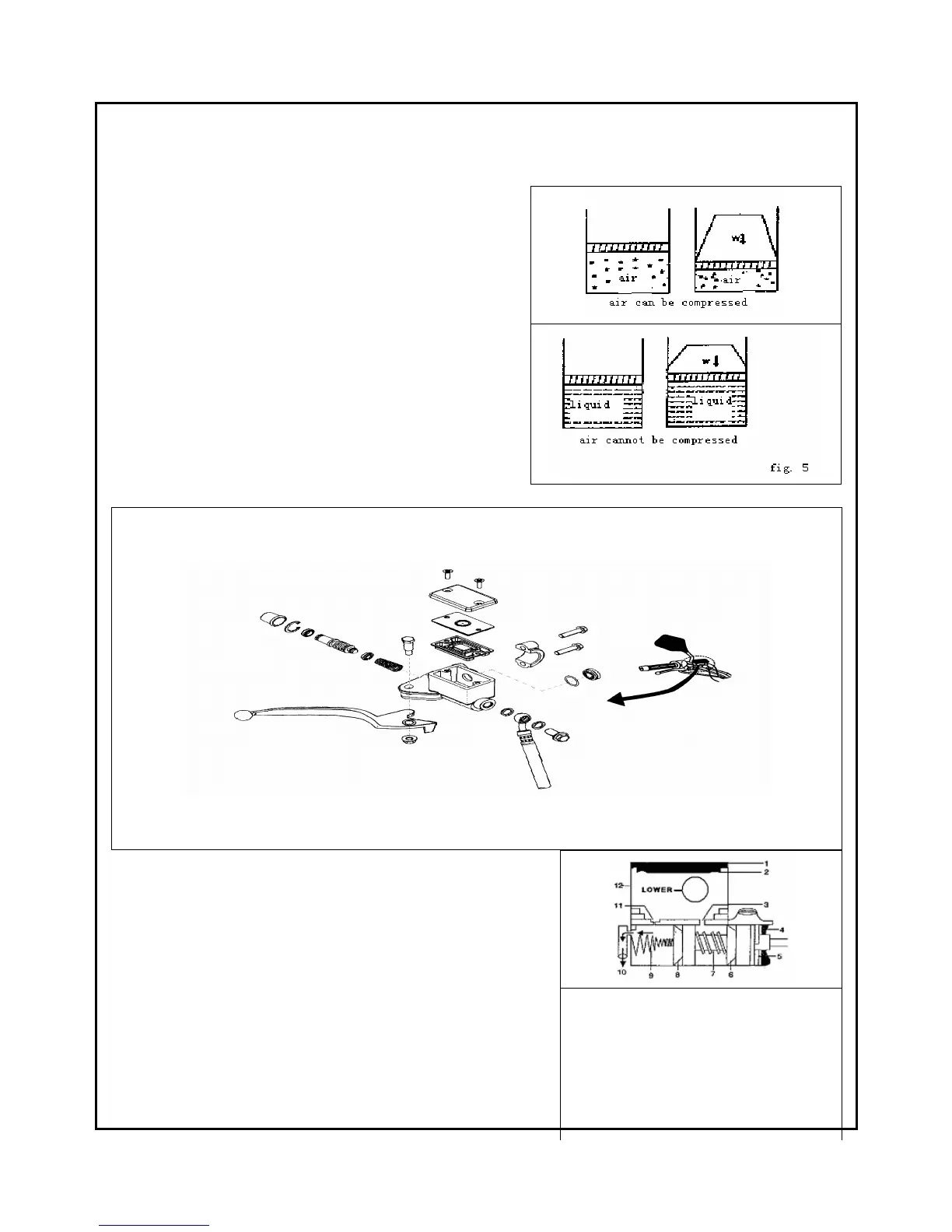

Brake principle: liquid cannot be compressed, so
strength can be transmitted through liquid medium.
Cylinder：When bearing on brake lever, cylinder stopper moves along
pressuring direction, stopper squeezes braking liquid in cylinder,
pressed braking liquid transfers pressure to caliper through braking
hose. When there is no pressure on braking lever, stopper turns back
for bearing on rebound from prick spring.
When releasing braking lever, for the sping of sealing
ring of caliper, oil stopper turns back, at the same time
when wheel rotates, brake disc knocks at braking shods in
the two side, which makes brake shoes turn back (see fig.)
1.oil cap 5.clip ring 9.tension spring
2.oil gasket 6.bowl 10.Outlet oil hole
3.inlet oil hole 7.stopper 11.supplement
hole
4.stopper anti-dust cover 8.bowl 12.oil pump
Fig.6
