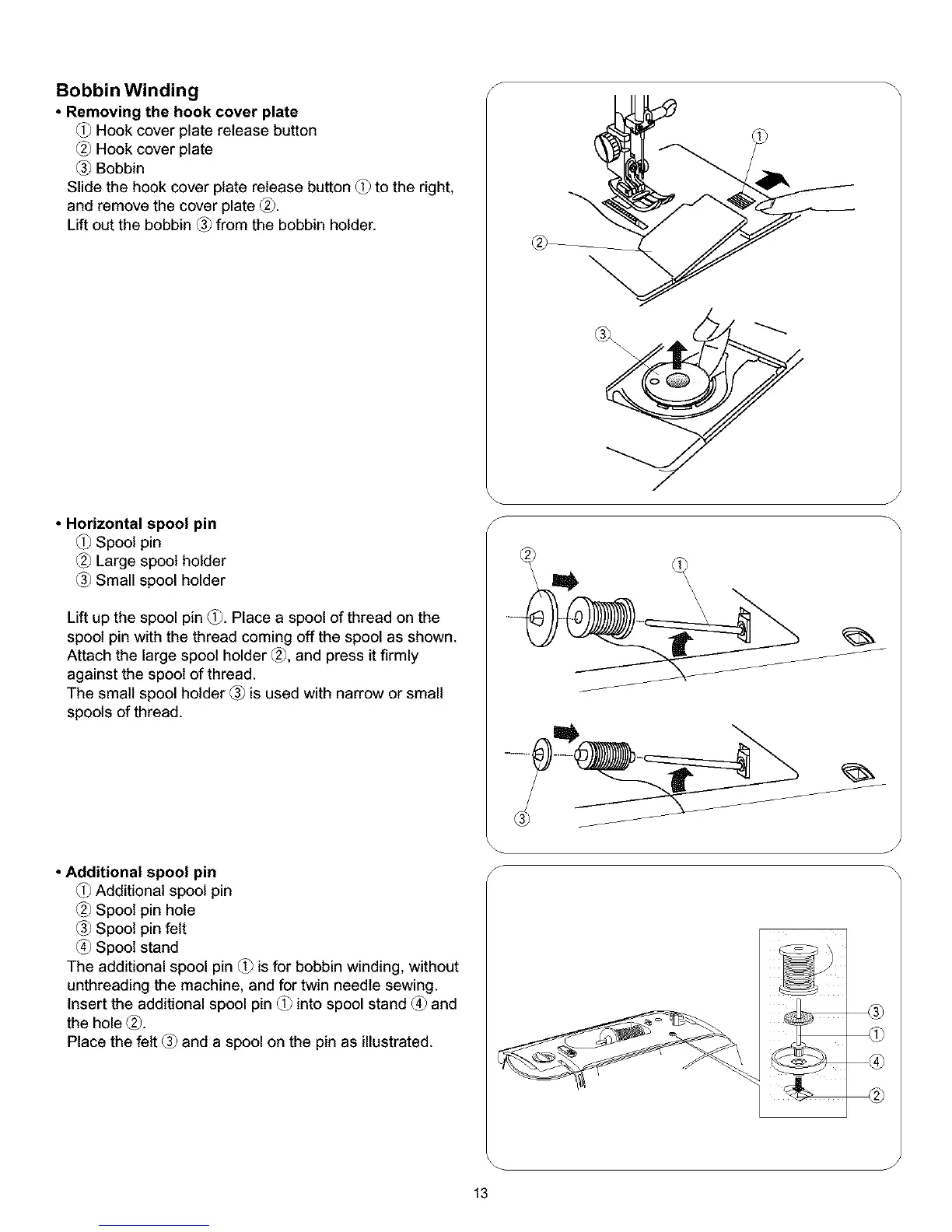

Bobbin Winding
• Removing the hook cover plate
Hook cover plate release button
Hook cover plate
Bobbin
Slide the hook cover plate release button _ to the right,
and remove the cover plate _.
Lift out the bobbin _ from the bobbin holder.
• Horizontal spool pin
Spool pin
Large spool holder
Small spool holder
Lift up the spool pin _. Place a spool of thread on the
spool pin with the thread coming off the spool as shown.
Attach the large spool holder _, and press it firmly
against the spool of thread.
The small spool holder _ is used with narrow or small
spools of thread.
• Additional spool pin
Additional spool pin
Spool pin hole
Spool pin felt
Spool stand
The additional spool pin _ is for bobbin winding, without
unthreading the machine, and for twin needle sewing.
insert the additional spool pin _ into spool stand _ and
the hole _.
Place the felt _ and a spool on the pin as illustrated.
S
\
\
\
J
J
J
®
J
13
