Kenmore 10 User Manual

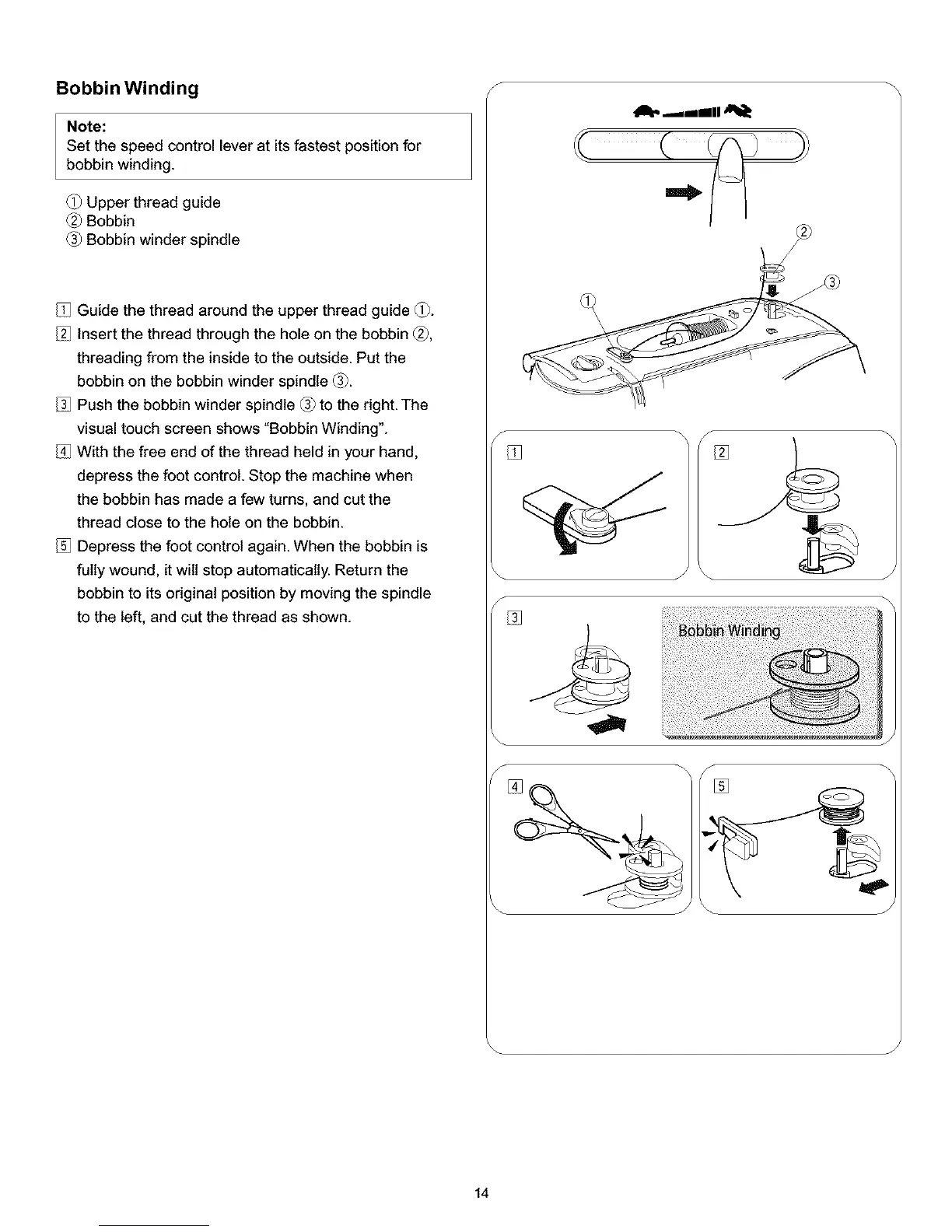

Bobbin Winding
Note:
Set the speed control lever at its fastest position for
bobbin winding.
_) Upper thread guide
Bobbin
Bobbin winder spindle
Guide the thread around the upper thread guide _).
Insert the thread through the hole on the bobbin _,
threading from the inside to the outside. Put the
bobbin on the bobbin winder spindle _.
Push the bobbin winder spindle _ to the right. The
visual touch screen shows "Bobbin Winding".
With the free end of the thread held in your hand,
depress the foot control. Stop the machine when
the bobbin has made a few turns, and cut the
thread close to the hole on the bobbin.
Depress the foot control again. When the bobbin is
fully wound, it wilt stop automatically. Return the
bobbin to its original position by moving the spindle
to the left, and cut the thread as shown.
S
,,.mditil
J
14
