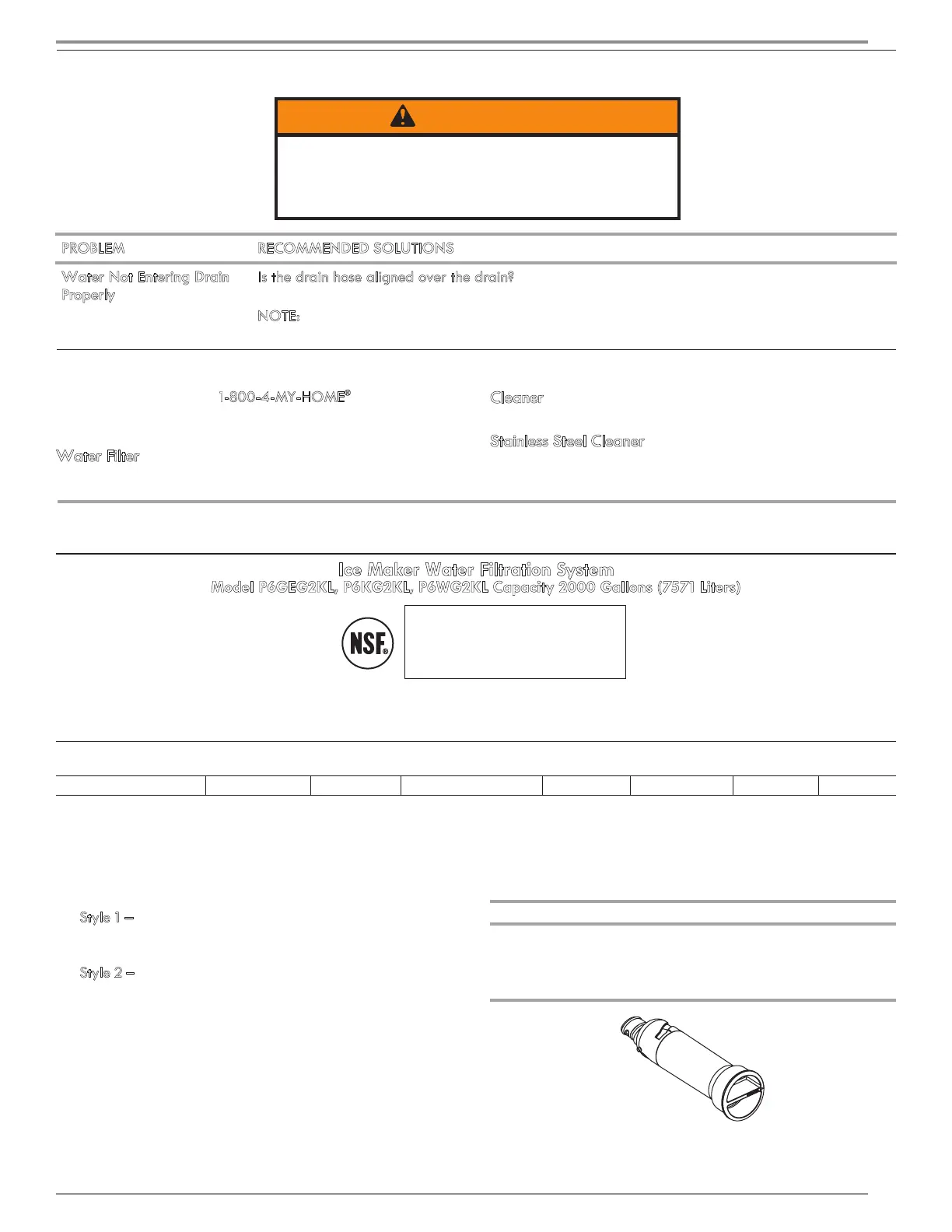

Plumbing Problems
Ice Maker Water Filtration System
Model P6GEG2KL, P6KG2KL, P6WG2KL Capacity 2000 Gallons (7571 Liters)
This system has been tested according to NSF/ANSI Standards 42 for the reduction of the substances listed below. The concentration of the
indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the
system, as specified in NSF/ANSI Standards 42.
Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.50 gpm (1.89 Lpm). Pressure = 60 psig (413.7 kPa).
Temp. = 68°F to 71.6°F (20°C to 22°C). Rated service capacity = 2000 gallons (7571 liters).
■ It is essential that operational, maintenance, and filter replacement
requirements be carried out for the product to perform as advertised.
■ Use replacement filter P6RFWG2K, P6RFGEG2K, P6RFKG2K, Part
Number ICE2.
Style 1 – When the water filter status display changes from “GOOD”
to “ORDER,” order a new filter. When the filter indicator reads
“REPLACE,” it is recommended that you replace the filter.
Style 2 – Press FILTER to check the status of your water filter. If the
filter indicator light is yellow and the words “ORDER FILTER” appear
on the display screen, order a new filter. If the filter indicator light is
red, it is recommended that you replace the filter.
■ These contaminants are not necessarily in your water supply. While
testing was performed under standard laboratory conditions, actual
performance may vary.
■ The product is for cold water use only.
■ Do not use with water that is microbiologically unsafe or of unknown
quality without adequate disinfection before or after the system.
■ Refer to the “Warranty” section for the Manufacturer’s name, address
and telephone number.
■ Refer to the “Warranty” section for the Manufacturer’s limited
warranty.
Application Guidelines/Water Supply Parameters
WARNING
Excessive Weight Hazard
Use two or more people to move and install ice maker.
Failure to do so can result in back or other injury.
PROBLEM RECOMMENDED SOLUTIONS
Water Not Entering Drain
Properly
If the drain hose is not aligned over the drain, move the ice maker to align the drain.
NOTE: Service technicians cannot repair plumbing problems outside of the ice maker. Call a licensed, qualified
plumber.
System tested and certified by NSF
International against NSF/ANSI
Standard42 for the reduction of
Chlorine Taste and Odor.
Substance Reduction
Aesthetic Effects
NSF Reduction
Requirements
Average
Influent
Influent Challenge
Concentration
Maximum
Effluent
Average
Effluent
Minimum %
Reduction
Average %
Reduction
Chlorine Ta ste/Odor 50% reduction 1.9727 mg/L 2.0 mg/L ± 10% 0.71 mg/L 0.7788 mg/L 70.2 72.81
Performance Data Sheet
Water Supply
Water Pressure
Water Temperature
Service Flow Rate
City or Well
30 - 120 psi (207 - 827 kPa)
33° - 100°F (0.6° - 37.8°C)
0.50 gpm (1.89 Lpm) @ 60 psi
