4-10
n

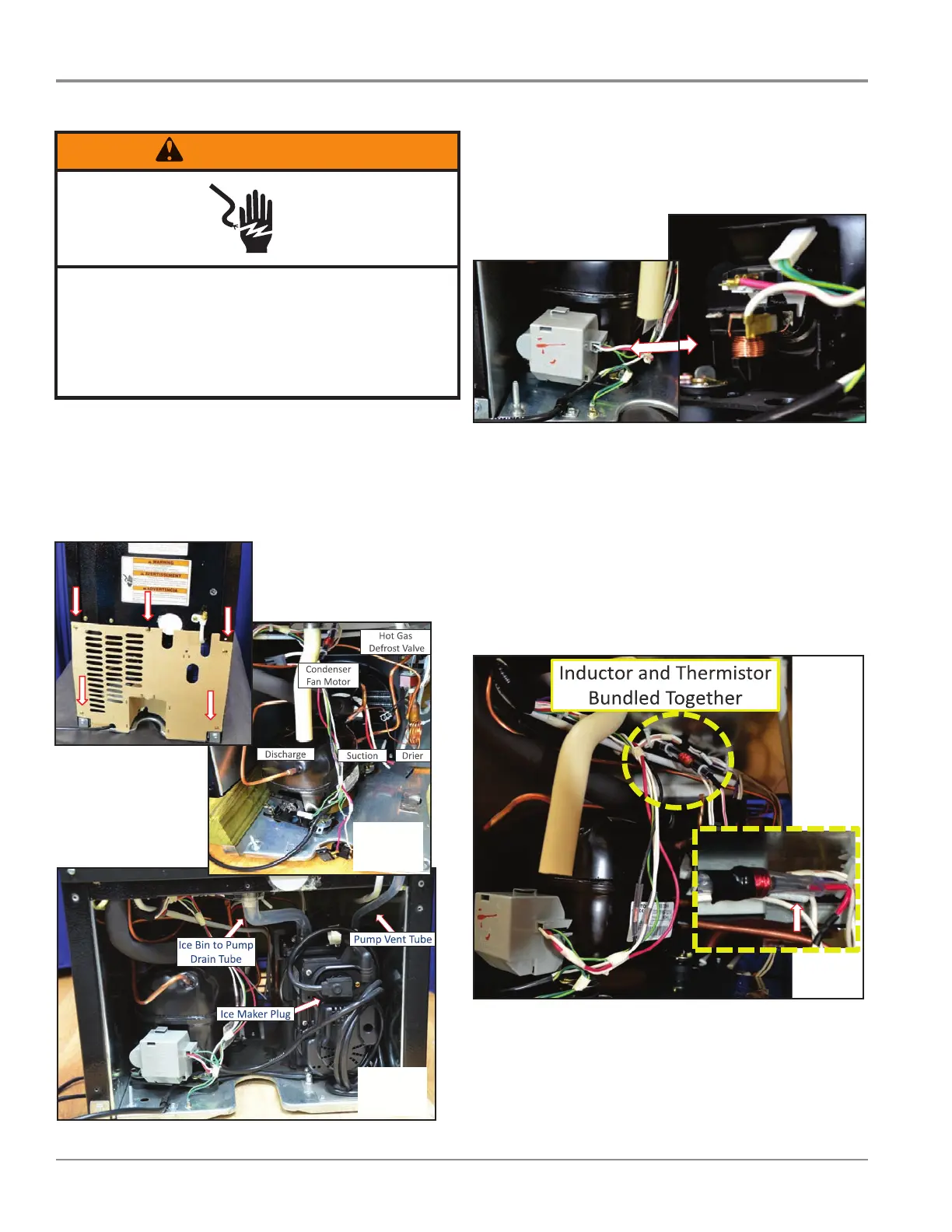

COMPONENT ACCESS
Machine Compartment Components
ACCESSING MACHINE COMPARTMENT
1. Unplug ice maker or disconnect power.
2. Remove screws and cover to access machine
compartment components. See Figure 27.
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
3. Compressor terminal cover pops off – instructions on
cover. See Figure 28.
NOTE: Amperage relay and standard overload (bimetal)
are used.
FIGURE 28
t,/Z>WKK>KZWKZd/KE KE&/Ed/>  Ϯϱ
^^/E'D,/EKDWZdDEd
Zz^d>ϱϬη/D,/EͲϮϬϭϯdϯ
t,/Z>WKK>KZWKZd/KE KE&/Ed/>  Ϯϱ
^^/E'D,/EKDWZdDEd
Zz^d>ϱϬη/D,/EͲϮϬϭϯdϯ
FAN INDUCTOR AND THERMISTOR
NOTE: 2 new components on this Ice Maker. An inductor
(coil) is wired in series (red wire) with the condenser fan
motor. It’s purpose in life is to smooth out voltage spikes.
The unit Thermistor (2 white wires) signals the control board
if the temperature of the machine compartment exceeds 115
F. If it does, then during the next harvest cycle the condenser
fan remains on to cool the area. 5 VDC is supplied to the
Thermistor. See Figure 29.
FIGURE 29
t,/Z>WKK>KZWKZd/KE KE&/Ed/>  Ϯϱ
^^/E'D,/EKDWZdDEd
Zz^d>ϱϬη/D,/EͲϮϬϭϯdϯ
WITHOUT
CONDENSATE
PUMP
WITH
CONDENSATE
PUMP
FIGURE 27
