COMPONENT ACCESS
n
4-5
Ice Bin Components (cont.)

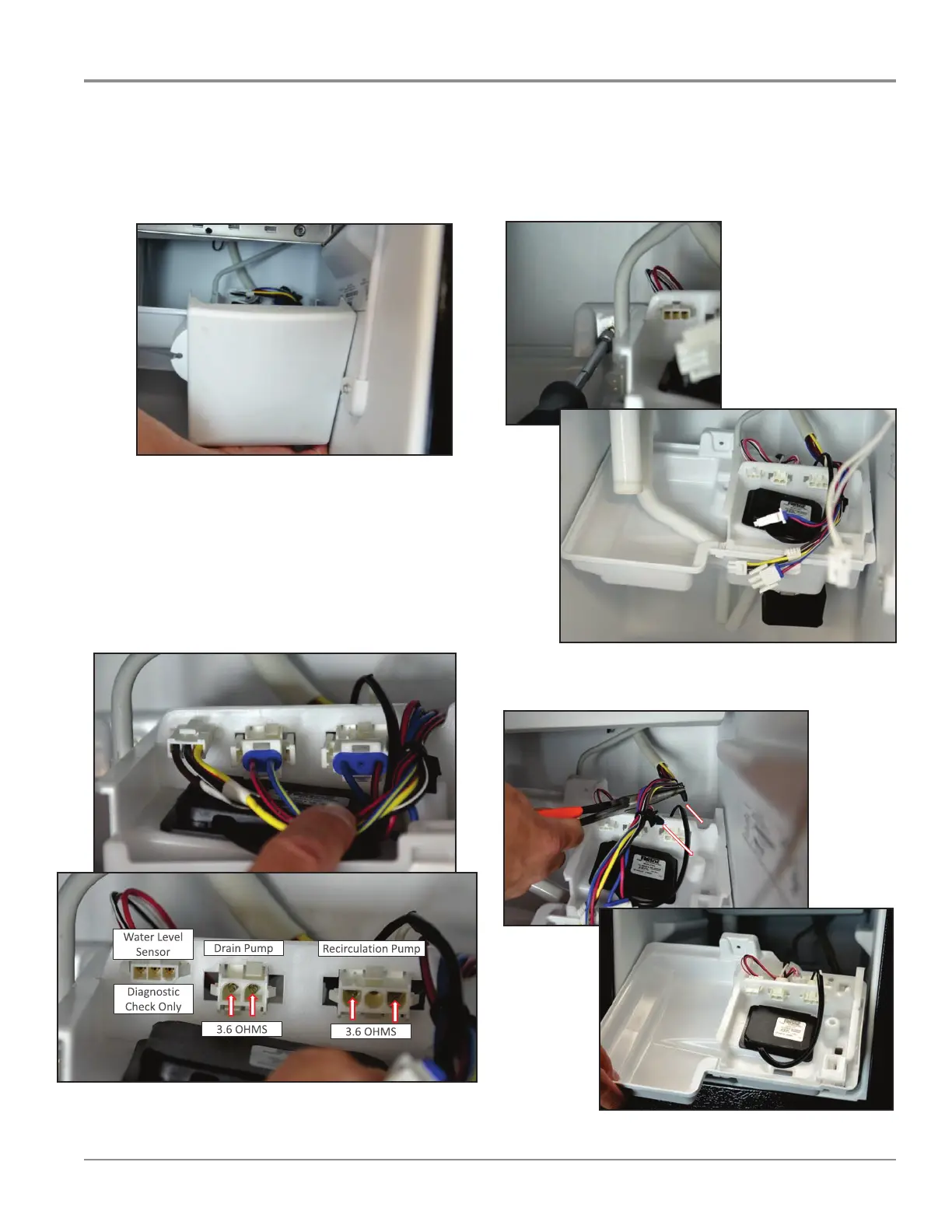

ACCESSING ICE BIN ELECTRICAL CONNECTIONS
8. Remove the water tube from the left side of the cover
and roll cover up and out. See Figure 12.
REMOVING RESERVOIR AND PUMPS
10. Remove 1 hex head screw and remove the reservoir
assembly. Remove wire harness. See Figure 14.
FIGURE 12
9. Remove wire harnesses. See Figure 13.
NOTE: If one of the pumps is not functioning during the
diagnostic check a resistance reading can be made.
Approximately 3.6 OHMS of resistance should be measured
across the recirculation pump and the drain pump.
If a pump checks good but did not operate during the
diagnostic test – make sure all the connections are tight
and retry the operation before replacing the pump.
FIGURE 13
FIGURE 14
11. Use a pair of pliers to remove christmas tree retainers.
See Figure 15.
FIGURE 15
