66 ENGLISH
Installation and ConnectionInstallation and Connection

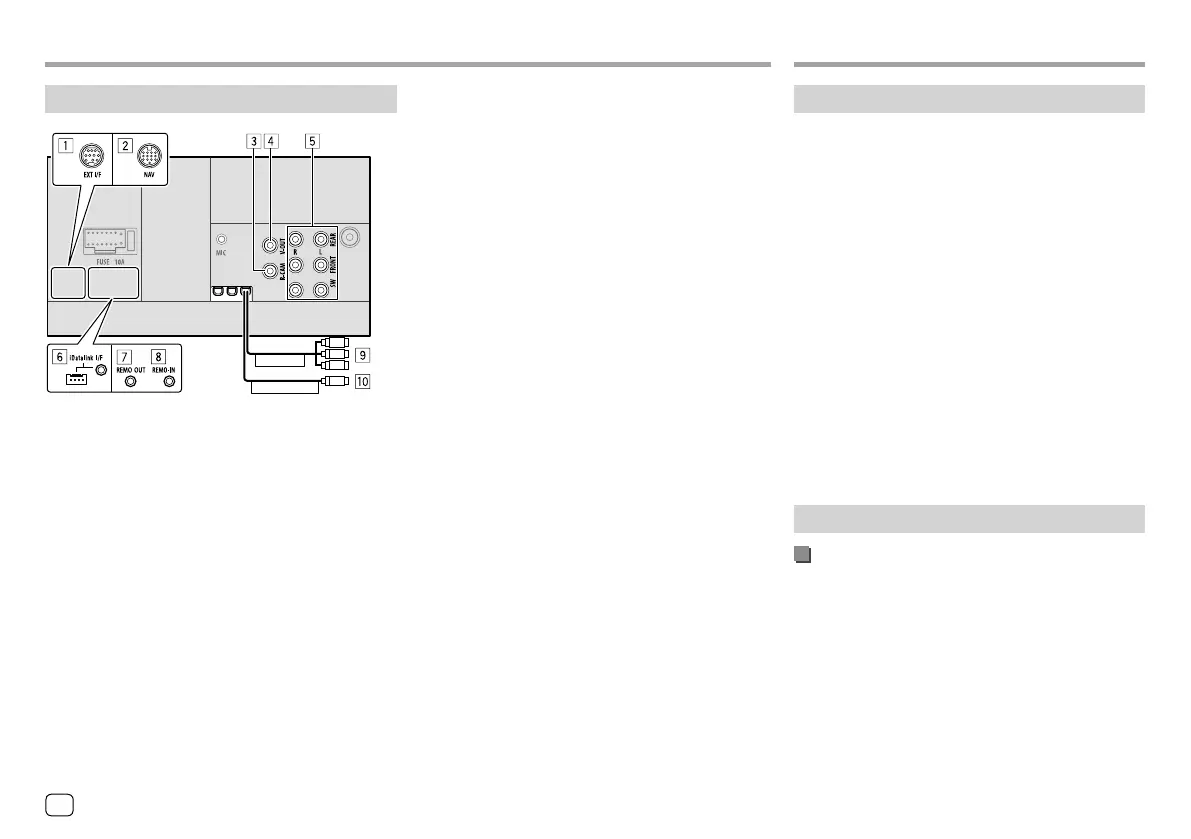

Connecting external components
FRONT VIEW CAMERA
AV IN 1
1 Expansion port for connecting SiriusXM Connect
Vehicle Tuner (EXT I/F) (commercially available)*1
2 Navigation input (NAV)*2
3 Rear view camera input (R-CAM)
4 Video output (V-OUT)
5 Output terminals*3
• Left output (White)
• Right output (Red)
REAR: Rear speaker preouts
FRONT: Front speaker preouts
SW: Subwoofer preouts
6 iDatalink input (iDatalink I/F) for connecting an ADS
adapter (commercially available)*1
7 TV tuner remote control output (REMO OUT)*2
8 Steering wheel remote controller input
(REMO-IN)*2
• Connect to the car’s steering remote harness
using the steering wheel remote input cable («).
Contact your KENWOOD dealer for details.
9 Audio video input (AV-IN)*4*5
p Front view camera input (FRONT VIEW
CAMERA)*5*6
*1 Only for DDX795/DDX775BH/DDX595/DDX575BT.
*2 Only for DDX6018BT/DMX6018BT/DDX5018BT/DDX718WBTL/
DMX718WBTL.
*3 When connecting an external amplifier, connect its ground wire
to the chassis of the car; otherwise the unit may be damaged.
*4 Only for DDX6018BT/DMX6018BT/DDX5018BT/DDX718WBTL/
DMX718WBTL.
*5 Cable position differs according to the models.
*6 Only for DDX795/DDX775BH/DDX595/DDX575BT/DDX718WBTL/
DMX718WBTL.
ReferencesReferences
Maintenance
Cleaning the unit
• Do not use any solvent (for example, thinner,
benzine, etc.), detergent, or insecticide. This may
damage the monitor or the unit.
• Gently wipe the panel with a soft, dry cloth.
Handling discs
• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with
tape stuck on it.
• Do not use any accessories for the disc.
• Clean from the center of the disc and move outward.
• Clean the disc with a dry silicone or soft cloth. Do not
use any solvents.
• When removing discs from this unit, pull them out
horizontally.
• Remove burrs from the center hole and disc edge
before inserting a disc.
More information
About playable files
Audio files
• This unit can play back the following files with
following codec and extension code:
– For disc: MP3 (.mp3), WMA (.wma), WAV (.wav),
AAC (.m4a)
– For USB mass storage class device: MP3 (.mp3),
WMA (.wma), WAV (.wav), AAC (.m4a), FLAC (.flac)
