6

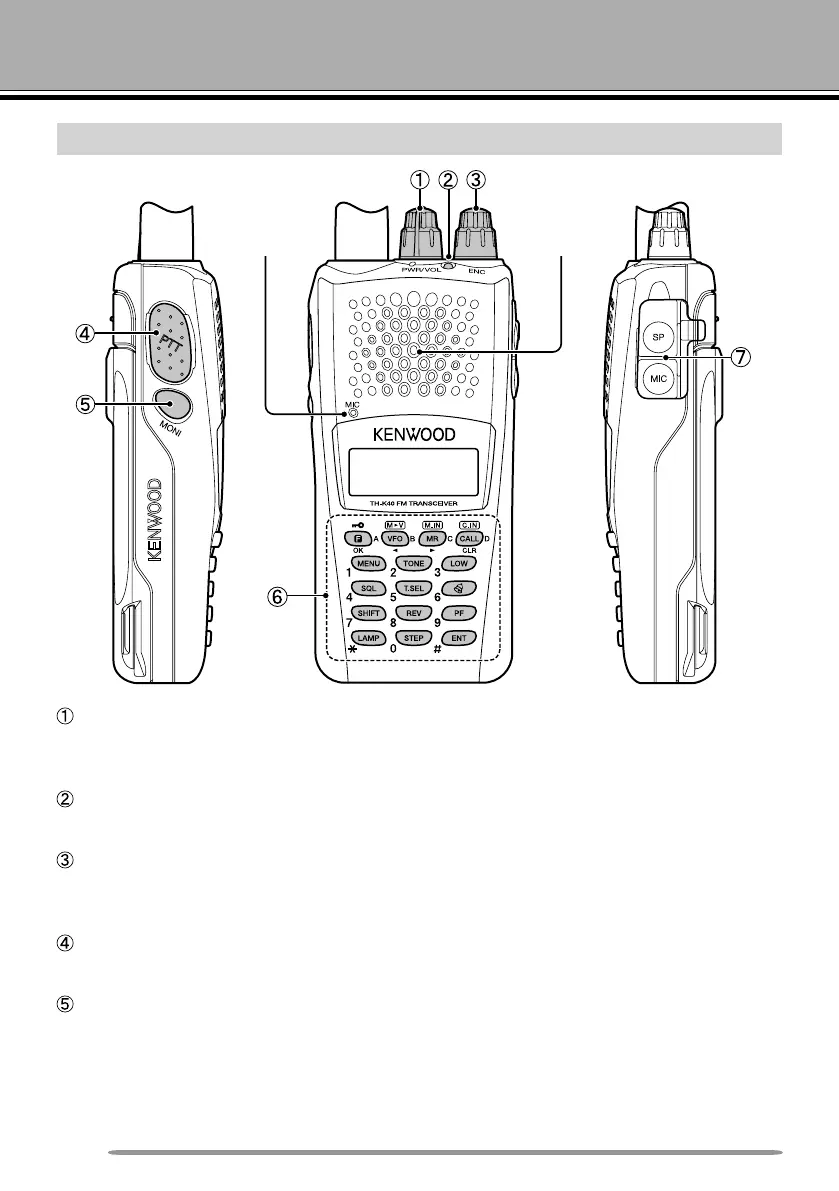

GETTING ACQUAINTED
PWR/VOL control
Turn clockwise to switch the transceiver ON. To switch the transceiver OFF,
turn counterclockwise until a click sounds. Rotate to adjust the volume level.
TX-RX LED
Lights red while transmitting and green while receiving a signal.
ENC Control
Rotate to select an operating frequency, Memory channel, Menu number, and
setting value or to change the scan direction, etc.
[PTT] (Push to talk) switch
Press and hold, then speak into the microphone to transmit.
[MONI]
Press and hold to unmute the speaker in order to monitor signals. Release
[MONI] to return to normal operation {page 13}.
PANEL
Speaker
Microphone
To Next Page
