18 of 42
Revision 2.06
KiloVault
®
LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 • info@kilovault.com • www.kilovault.com
Choose a wall capable of supporting the full weight of the HAB™ (over 207 lb.) with one or more
of the following characteristics: wood studs at regular intervals, plywood sheeting at least ¾
inch thick, solid concrete or masonry, or metal studs of at least 18 gauge.
The HAB™ communication and power cable entries are located at the bottom right corner of
the unit. There must be enough clearance for the conduit and fittings.
4.5. Install the HAB™ Wall Mounting Plate
The HAB™ comes with the single mounting plate option. Previous releases used a dual
mounting plate system.

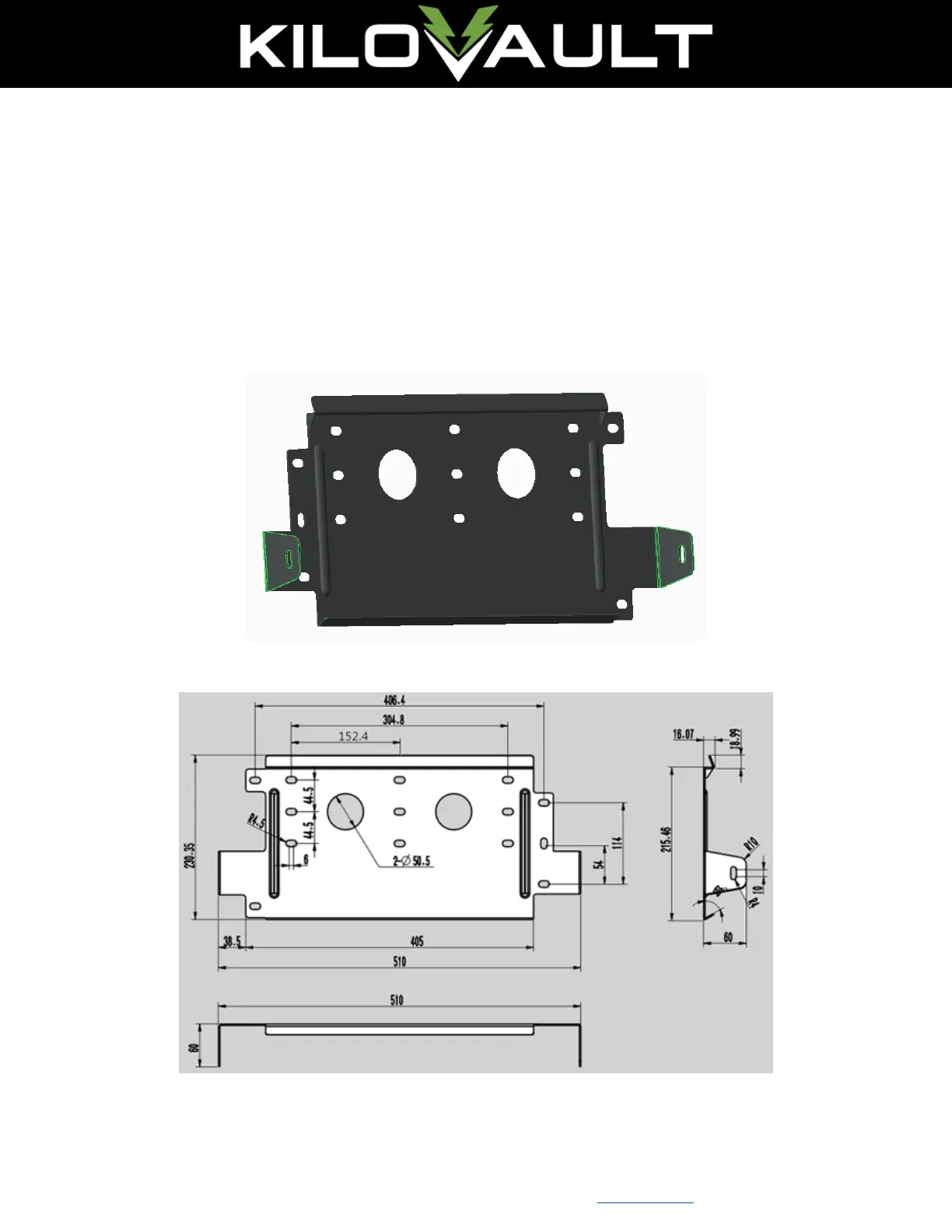

Figure 6: Single Wall Mounting Plate
Figure 7: Single Wall Mounting Plate Technical Specifications
