Module Number
DIP Switch Settings
Switch 1
Switch 2
Switch 3
Switch4
Leader - Single HAB™
OFF
OFF
OFF
OFF
Leader - Multiple HAB™
ON
OFF
OFF
OFF
1st
OFF
ON
OFF
OFF
2nd
ON
ON
OFF
OFF
3rd
OFF
OFF
ON
OFF
4th
ON
OFF
ON
OFF
5th
OFF
ON
ON
OFF
6th
ON
ON
ON
OFF
7th
OFF
OFF
OFF
ON
8th
ON
OFF
OFF
ON
9th
OFF
ON
OFF
ON
10th
ON
ON
OFF
ON
11th
OFF
OFF
ON
ON
12th
ON
OFF
ON
ON
13th
OFF
ON
ON
ON
4.6.8. Inverter Communication Cable, Amphenol AT06-6S, Pin Pinouts

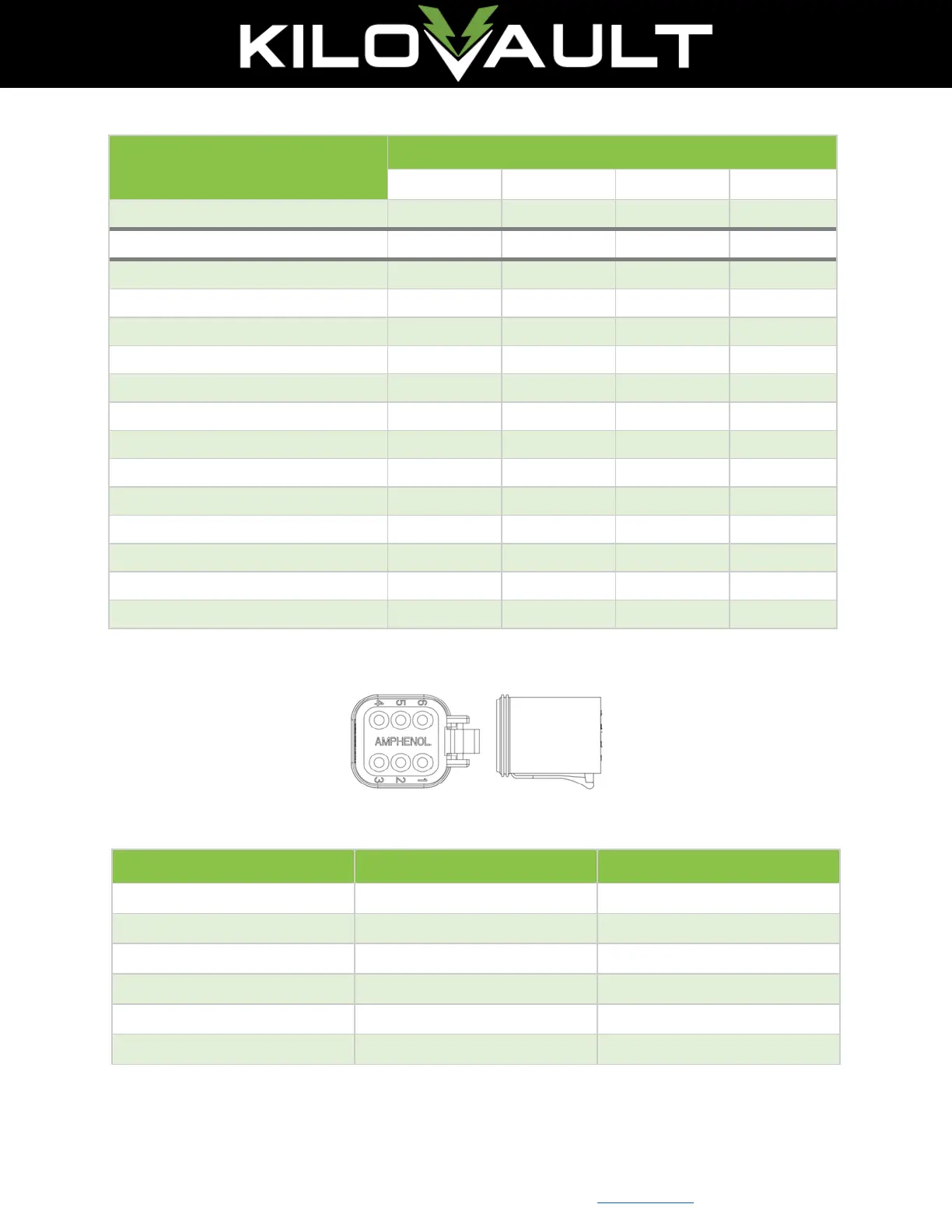

Figure 17: Inverter Communication Cable (Amphenol AT06-6S) Pinouts
Pin Number
Definition
Wire Color
1
N/A
Black
2
RS485A A1/ CANH (Inverter)
Yellow
3
RS485B B1/ CANL (Inverter)
Green
4
RS485A A2/ (BMS Debug)
5
RS485B B2/ (BMS Debug)
6
N/A
The HAB to inverter communications feature will be supported in a future upgrade.
