24 of 42
Revision 2.06
KiloVault
®
LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 • info@kilovault.com • www.kilovault.com

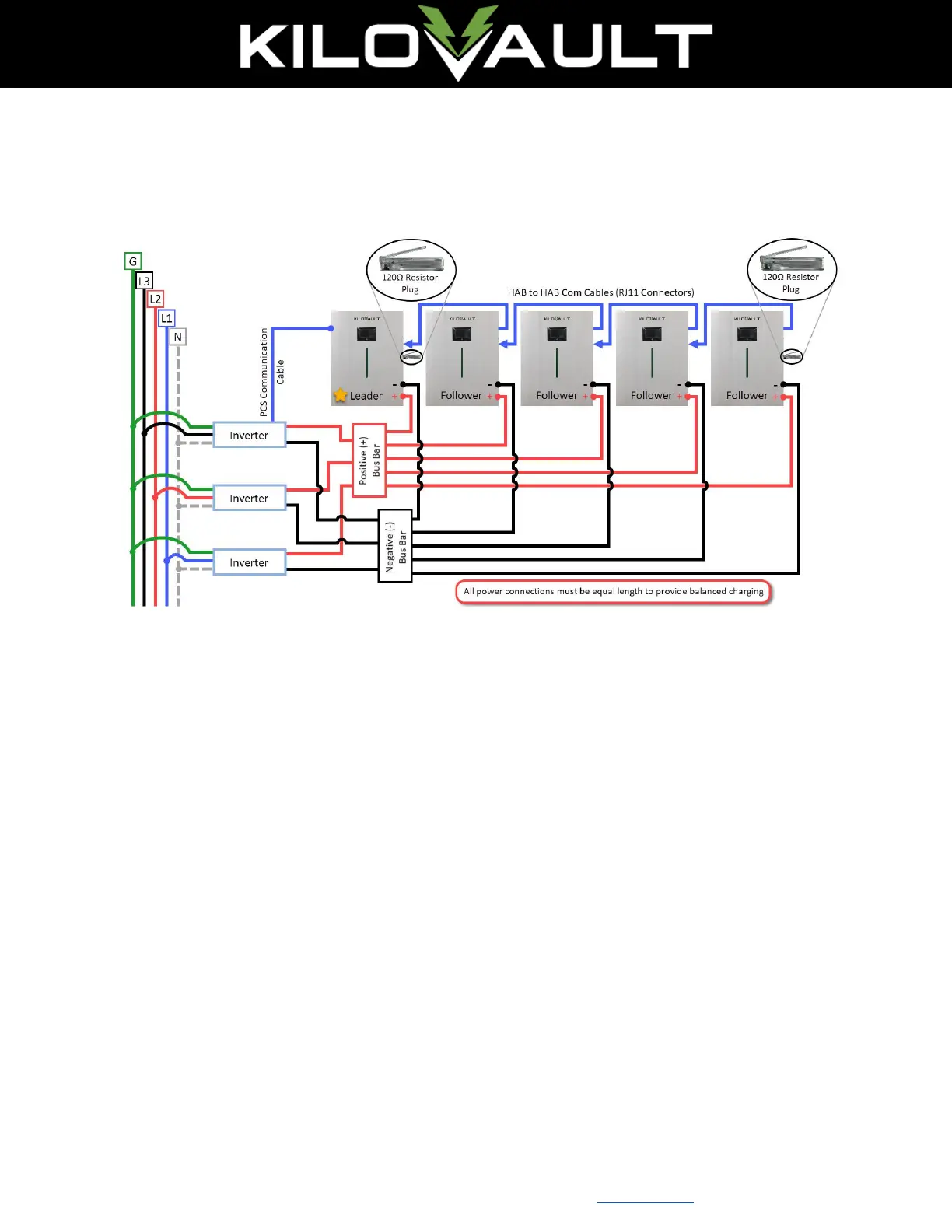

4.6.5. Multiple Inverter Simplified Wiring Diagram
The following diagram describes a simplified multiple inverter system for installations greater
than 7.5kW. This is purely a graphical representation.
Figure 14: Multiple Inverter Installation
Wires G/L3/L2/L1/N in the previous diagram refer to the wires in a standard 3-phase system.
Different inverters may have different wiring.
4.6.6. Optional Battery Combiner Box and Bus Bar
When using a battery combiner box and bus bar, it is still critical to get all circuits to each
battery the same length to help ensure they contribute equal current to the total current.
The figure below shows a typical installation.
