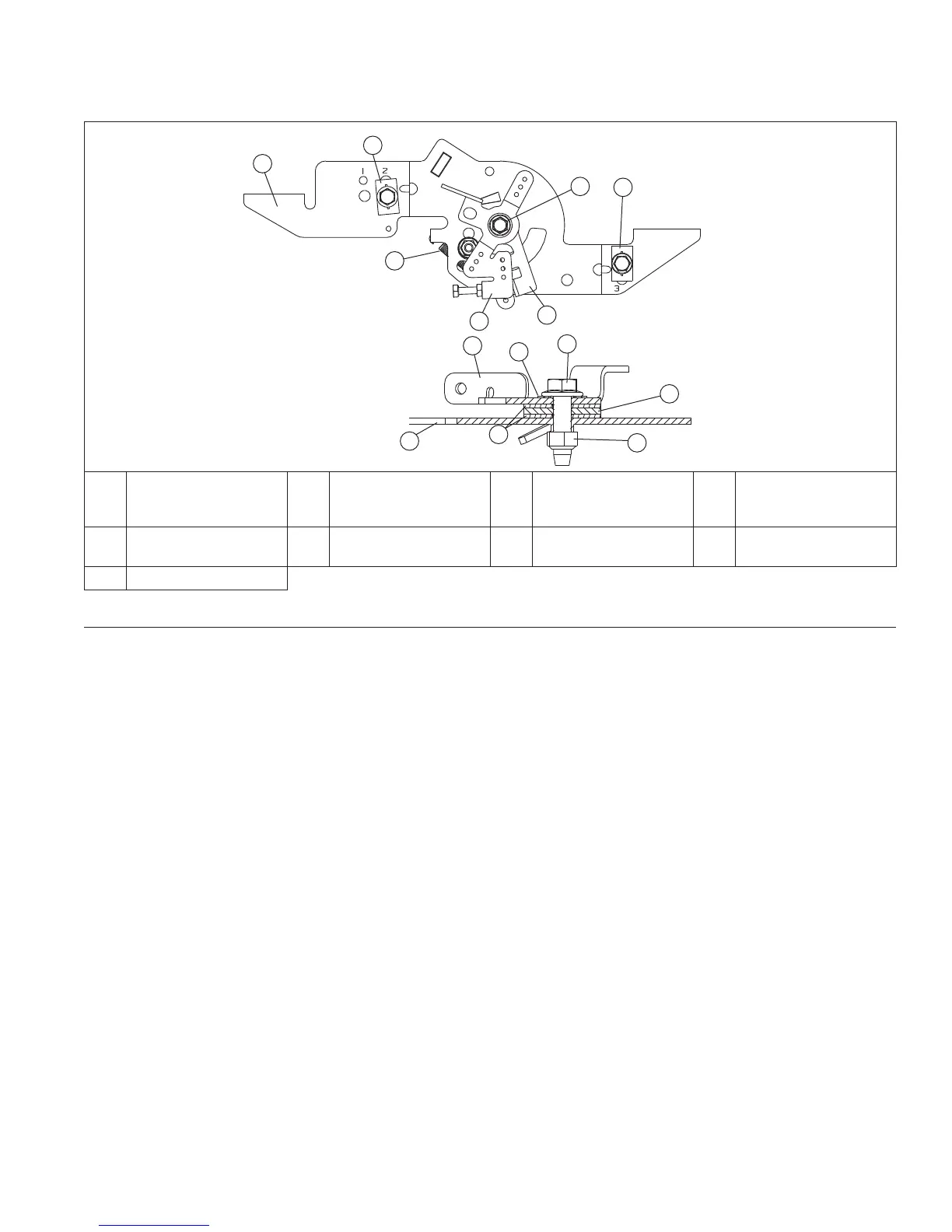

External Governor Control (ECH EFI)
D
A
B
C
B
I
F
F
D
E
C
A
G
H
A
Speed Control
Bracket B
Cable Clamp
C Screw D
Throttle Actuator
Lever (bottom)
E Spring Washer F
Throttle Control Lever
(top)
G Flat Washer H Nut
I Return Spring
Remove External Governor Controls
1. Disconnect governor spring attaching governor lever to throttle actuator lever.
2. Disconnect throttle linkage spring. Remove throttle linkage bushing and throttle linkage from governor lever.
3. Loosen nut and remove governor lever from cross shaft.
Disassembly/Inspection and Service
10524 690 01 Rev. K KohlerEngines.com
